The Monster Marine Lithium Triple Bank Charger handles 12v, 12v, and 24v simultaneously in one waterproof enclosure. Bank 1 charges 24v lithium systems at 10A, while Banks 2 and 3 each deliver 10A to 12v batteries. The ACD (automatic charging detection) system adjusts the charge profile based on what battery chemistry it detects, so you can run lead-acid on one bank and lithium on another without manual switching.
SPECIFICATIONS
WARRANTY
See manufacturer warranty
CHARGER RATING

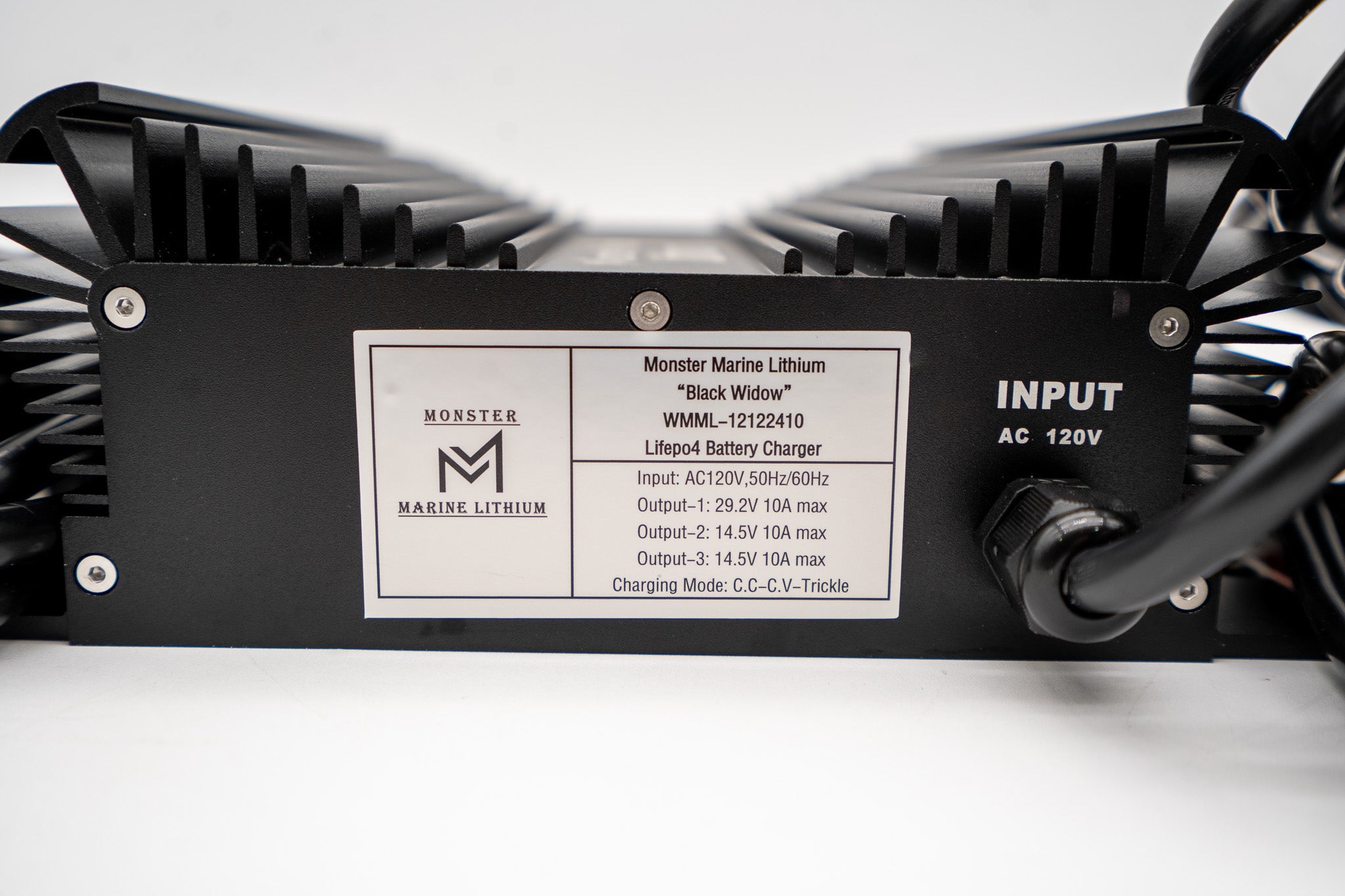

Input: 100-120v AC

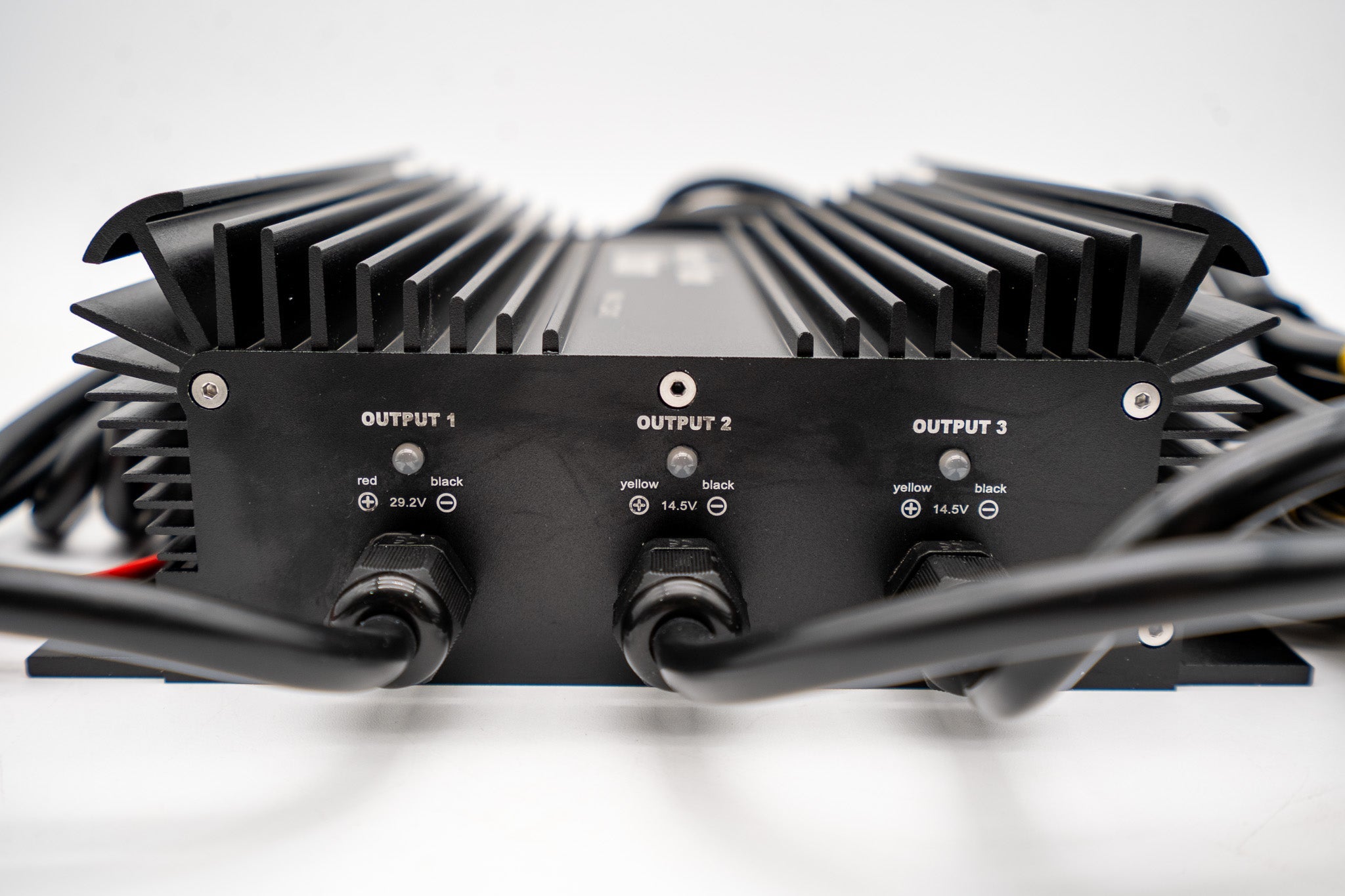

Output 1: 24v DC @ 10A
Output 2: 12v DC @ 10A
Output 3: 12v DC @ 10A
DIMENSIONS AND WEIGHT
8.75" L x 8.75" W x 2.25" H
16 lbs
TERMINAL CONNECTIONS
Not specified by manufacturer
WATERPROOF RATING
100% waterproof. Can be mounted onboard in typical marine battery charger locations exposed to spray and weather.
SMART BMS COMMUNICATION
Automatic low voltage cutoff activation initiates charging when lithium batteries reach BMS shutoff without requiring manual button press or charger reset. Charger detects zero or minimal post voltage after BMS disconnect and begins charge cycle automatically.
COMPATIBILITY
Works with lead-acid, AGM, and lithium batteries across all three banks. ACD system detects chemistry per bank and applies appropriate charge profile. Includes maintenance mode for both lithium and lead-acid batteries. Suitable for parallel 24v lithium configurations where one charger charges both batteries simultaneously.
Experience the Monster Marine Lithium Advantage
The Triple Bank charger solves the mixed-voltage problem on boats running both 12v and 24v systems without installing separate chargers for each battery bank.
