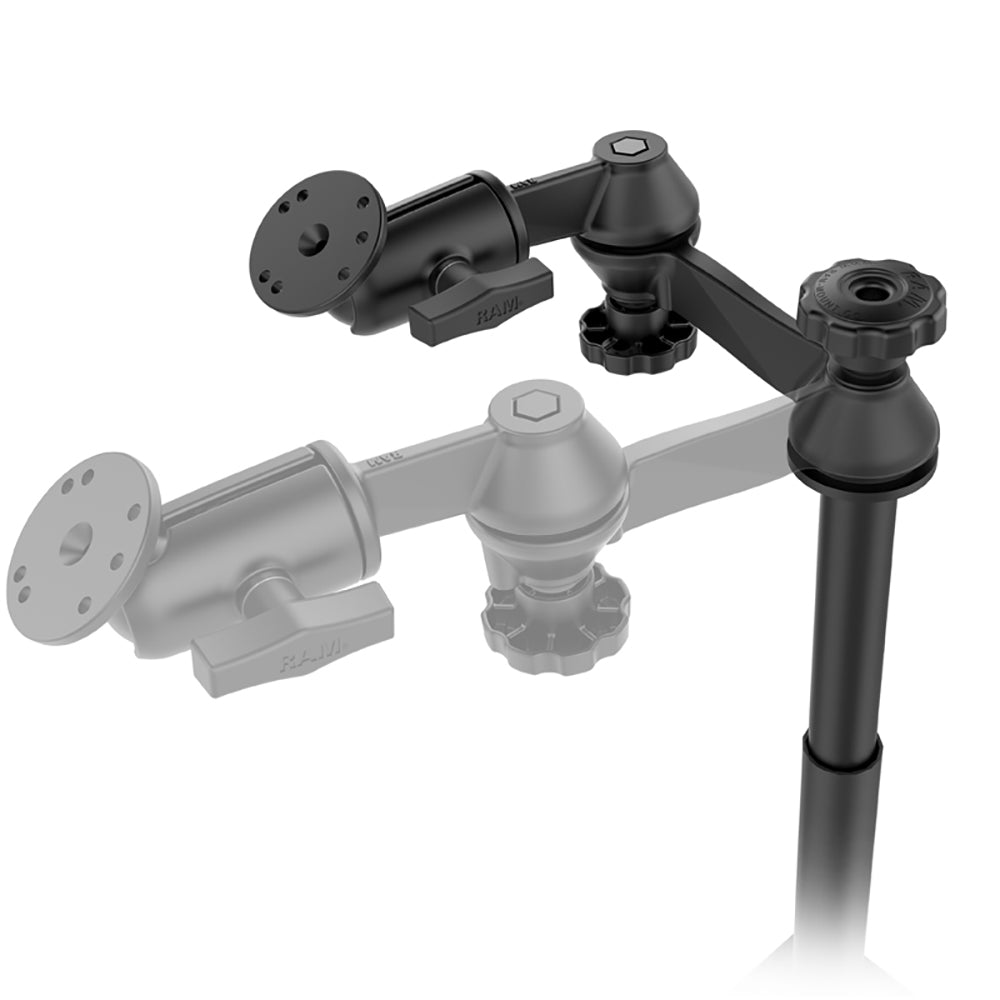

RAM® No-Drill™ Mount for '12-19 RAM 2500-5500 + More
This RAM® No-Drill™ mounting system installs quickly and easily into a range of Ram 1500 and Ram 2500 trucks using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
- Assembly Hardware
- (2) M8-1.25 x 60mm Hex Bolts
- (2) 3/4" Stand-Offs
- (2) 5/16" Flat Washers
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
- Seat Bolt Distance: 13.25" center to center
- Plate Size: 2.5" Diameter
- Ball/Socket Size: C Size (1.5")
- Materials: Powder coated steel, Marine grade-aluminum
Quick Guide (pdf)
