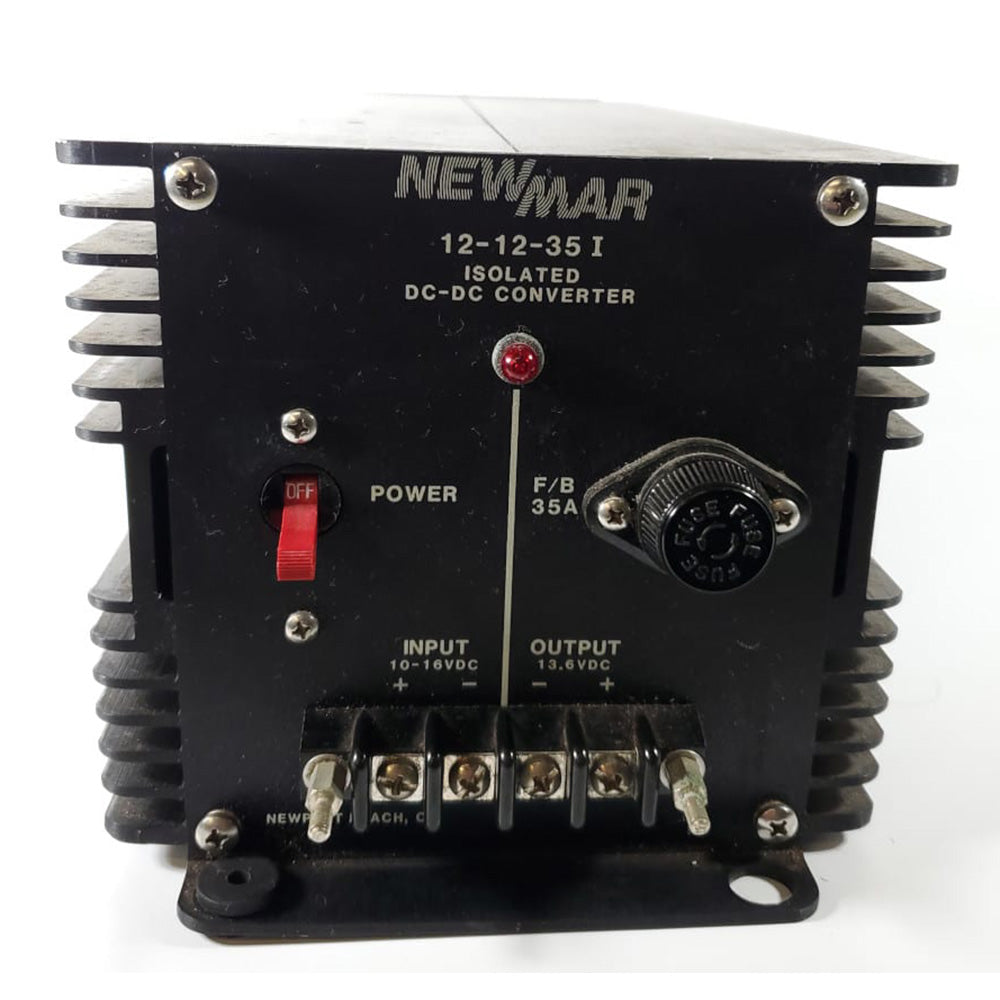

Newmar 12-12-35I DC Converter [12-12-35I]


Price:
$1,947
Stock:
Backordered

12-12-35I DC Converter

This isolated series provides voltage conversion as well as input/output isolation, allowing the use of negative ground gear in positive or floating ground battery systems, or vice versa.

Using an isolated converter as a voltage stabilizer on 12- or 24-volt systems can solve conducted noise and interference problems on sensitive DC-powered communication, navigation systems, and DC microprocessor-based devices.

Features:

  • Wide range of input voltage
  • Precise output voltage regulation
  • Reverse polarity
  • Input fuse/output fuse
  • Total input/output isolation, pos. or neg. ground
  • Current-limiting, short-circuit-proof output
  • Automatic resetting of the thermal shutdown
  • High/low input voltage shutdown
  • Polyurethane conformal coating on PC board
  • Power ON light
  • Rugged case designed for high-vibration applications

Specifications:

  • Input Voltage: 10-16
  • Max Input Amps: 56
  • Output Voltage: 13.6
  • Output Amps (Intermittent): 35
  • Output Amps (Continuous): 20
  • Case Size (H x W x D): 6 x 6.8 x 16.5 inches (15.2 x 17.3 x 41.9 centimeters)
  • Weight: 12 lb. (5.5 kg)
  • Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify)
  • Ripple: 150 mV P-P maximum
  • Regulation: 1% Line/Load
  • Duty Cycle Ratings: Intermittent – 20 minutes max on time, 20% duty. current limit set at approx. 105% of the intermittent rating. Continuous – 24 hours, 100% duty
  • Idle Current: Less than 100 mA (including power “ON” light )
  • Operating Temp: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature
  • Switching Frequency: 40 kHz
  • Efficiency: 85% – Typical
  • Isolation – Output/Chassis; Input/chassis: 250 VDC

Mechanical Specifications:

  • Anodized aluminum heat sink case
  • Front panel terminal block
  • Heavy-duty mounting flange
  • conformal-coated PC board

Options:

  • Operation as battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)
  • Extreme vibration mounting kit. (Information below)

Option: Extreme Vibration Mounting Kit

The Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles.

The kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify Kit L for units that weigh 2 -15 lbs. and Kit H for units that weigh 16 – 70 lbs.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
