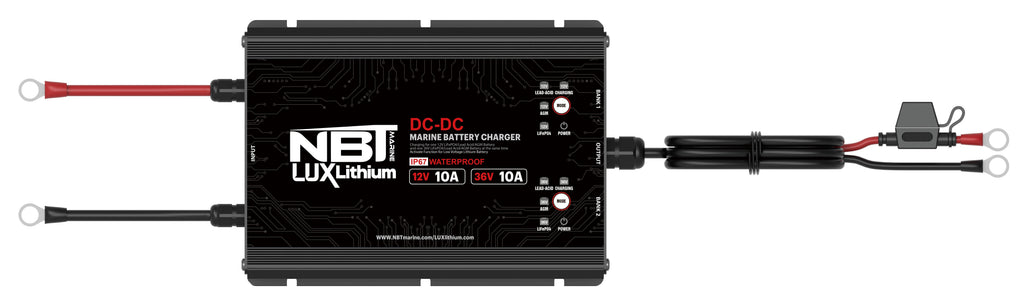

The NBT Lux Run Charge ULTIMATE System (model NBT-12V36VDC-RCS) is a DC-DC converter and on-the-run charging system for boats with 36V trolling motor banks and a separate 12V house battery. It pulls power from your 12V starting battery (connected to the boat's alternator) and distributes regulated charging to both your 36V trolling system and your 12V electronics bank while the engine is running. The unit is IP67 waterproof rated and built with thermal management for installation in cramped, hot compartments where most converters overheat.
SPECIFICATIONS
WARRANTY
See manufacturer warranty
INPUT / OUTPUT VOLTAGE
Input: 12V DC from starting battery
Output Bank 1: 12V DC regulated
Output Bank 2: 36V DC regulated
Efficiency rating: greater than 96%
PROTECTION FEATURES
Short circuit protection, over-voltage protection, over-temperature protection with advanced heat-sync chassis for sustained performance in high-temperature environments
TERMINAL CONNECTIONS
Weather-resistant connectors designed for NBT's system integration. Plug-and-play installation with ruggedized housing.
WATERPROOF RATING
IP67 rated. Full protection against dust ingress and submersion in up to 1 meter of water for 30 minutes. Safe for installation in bilge areas, under consoles, or other locations exposed to spray and moisture.
COMPATIBILITY
Designed for boats running a 12V starting battery with alternator charging, a separate 36V trolling motor battery bank, and a 12V house battery for electronics (graphs, shallow water anchors, lighting). Actively manages charging to both the 36V and 12V systems simultaneously while underway.
Experience the NBT Marine Advantage
The NBT Lux Run Charge ULTIMATE System eliminates the need to run your batteries down between trips or rely on shore power to top off your electronics bank. It converts and distributes power intelligently while you are on the water.
