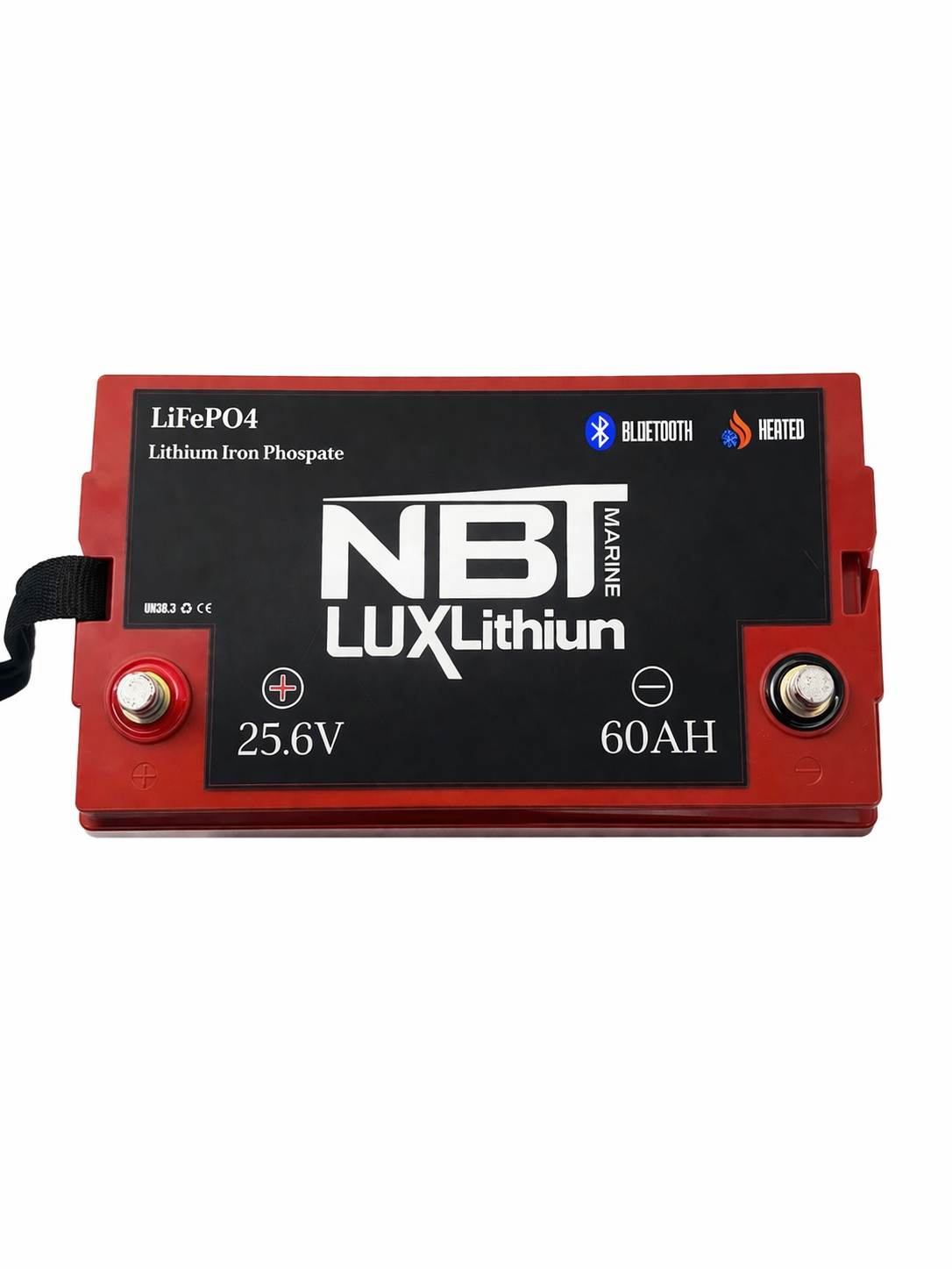

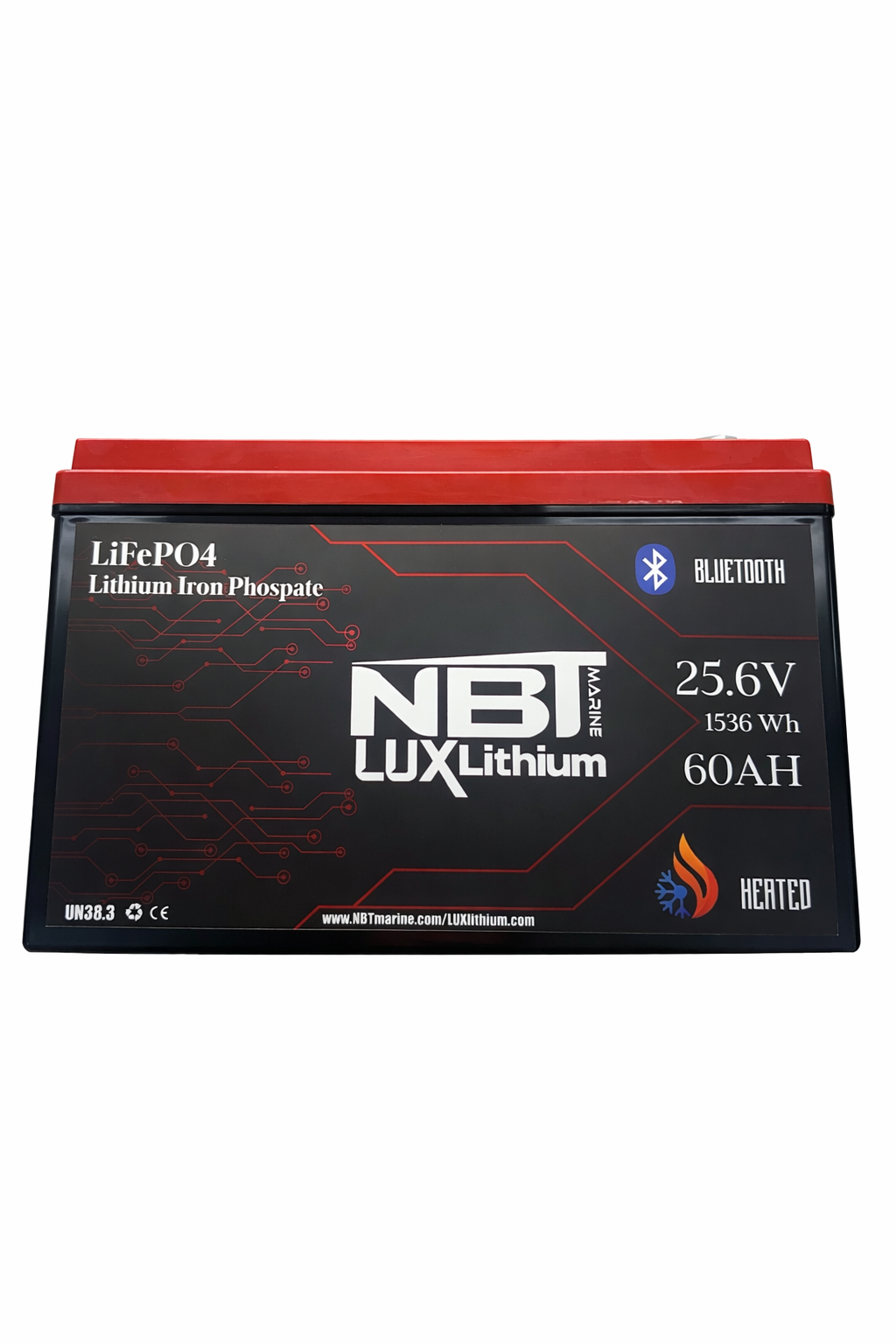

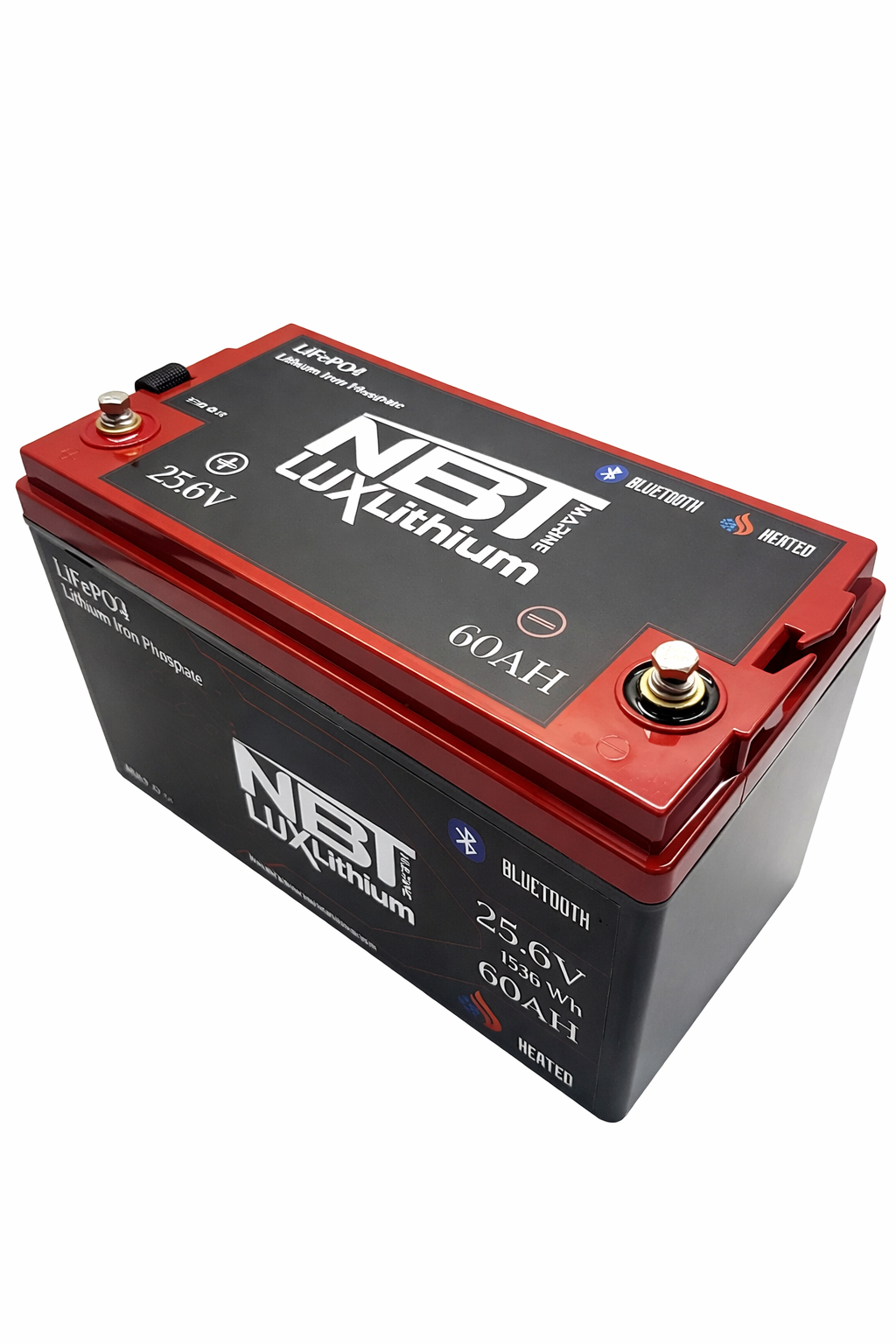

The NBT LUX 24V 60Ah is a single-battery replacement for traditional dual 12V setups on 24-volt trolling motors. It eliminates series jumpers and delivers 1536 watt-hours in a Group 31 case that weighs just under 30 pounds.
SPECIFICATIONS
WARRANTY
See manufacturer warranty (Warranty RMA , NBTmarine window.performance && window.performance.mark && window.performance.mark('shopify.content...)
WEIGHT
29.2 lbs
SIZE
Group 31 case (12.9 x 6.8 x 8.5 inches)
STORAGE CAPACITY
60Ah at 25.6V nominal (1536Wh total energy). The flat discharge curve means you get consistent performance through 100% of the rated capacity, not just the first 50% like you would with lead-acid.
VOLTAGE
25.6V nominal (24V system)
ENERGY
1536 watt-hours
TERMINALS
Not specified by manufacturer
LIFECYCLES (BATTERY LIFESPAN)
Not specified by manufacturer
OPERATING TEMPERATURE
-4°F to 140°F. Includes internal heater and low temperature / cold weather protection.
DISCHARGE
Over current protection included
CHARGE
Not specified by manufacturer
INCLUDES ACTIVE BMS PROTECTION
Yes. Includes active BMS protection with cell balancing, low and high voltage cutoff, short circuit protection, and high temperature protection.
Bluetooth Capable
Yes. Bluetooth monitoring included.
Experience the NBT Marine Advantage
The NBT LUX 24V 60Ah is IP67 waterproof rated and can be wired in series or parallel (up to four batteries total) for custom voltage and capacity configurations. One battery does the work of two 12V units without the failure points of jumper cables.
