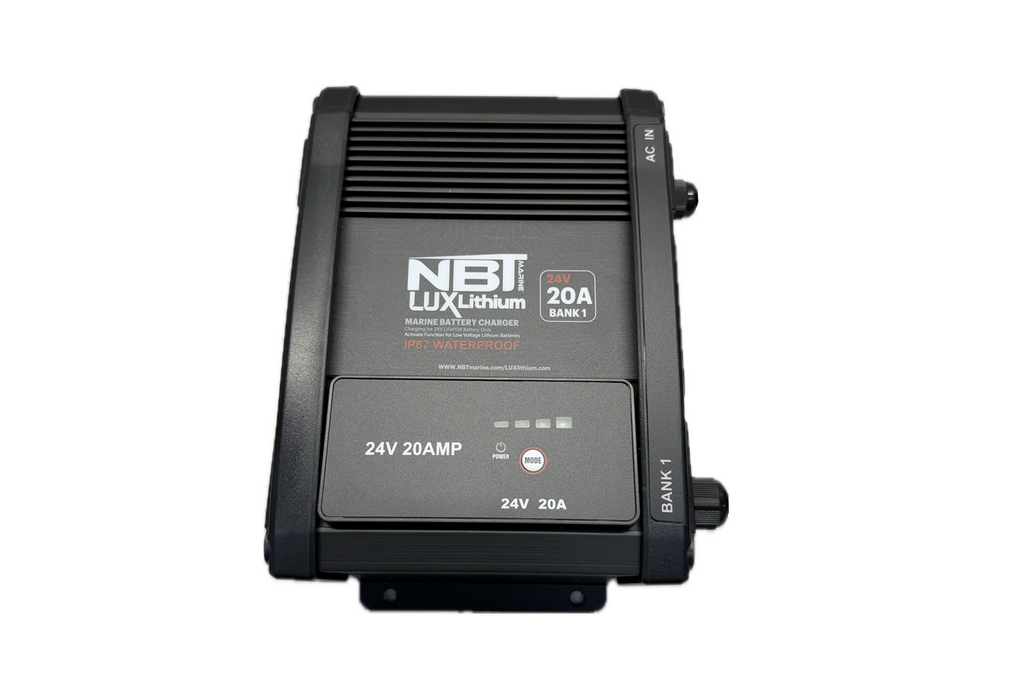

The NBT Lux Charger 24V/20A is a single-bank onboard charger built for 24V marine lithium systems. IP67 waterproof rated for bilge or compartment installation. Engineered specifically for LiFePO4 chemistry, this charger delivers the voltage and current profile lithium batteries need to reach full capacity without degradation.
SPECIFICATIONS
WARRANTY
See manufacturer warranty
CHARGER RATING
Input: 100-240V AC (global compatibility)
Output: 24V DC at 20A continuous
TERMINAL CONNECTIONS
Single-bank output for 24V series-connected batteries or dedicated 24V lithium packs. Sealed cable connections designed for permanent onboard installation.
WATERPROOF RATING
IP67 rated. Fully sealed enclosure protects against moisture, spray, and temporary submersion. Safe for bilge mounting or compartments that see water intrusion.
SMART BMS COMMUNICATION
Advanced protection suite includes thermal management, over-voltage protection, and short-circuit prevention. Monitors charging conditions and adjusts output to prevent unsafe conditions during unattended dock charging.
COMPATIBILITY
Designed for 24V LiFePO4 lithium systems only. Do not use SLA or AGM chargers on lithium batteries. The charge profile is different. Using the wrong charger will either undercharge the battery (leaving capacity on the table) or overcharge it (causing permanent damage to the cells).
Experience the NBT Marine Advantage
The NBT Lux 24V/20A delivers the high-amperage charging speed that matches modern 24V trolling motor systems and house banks, with the waterproof durability required for permanent marine installation.
