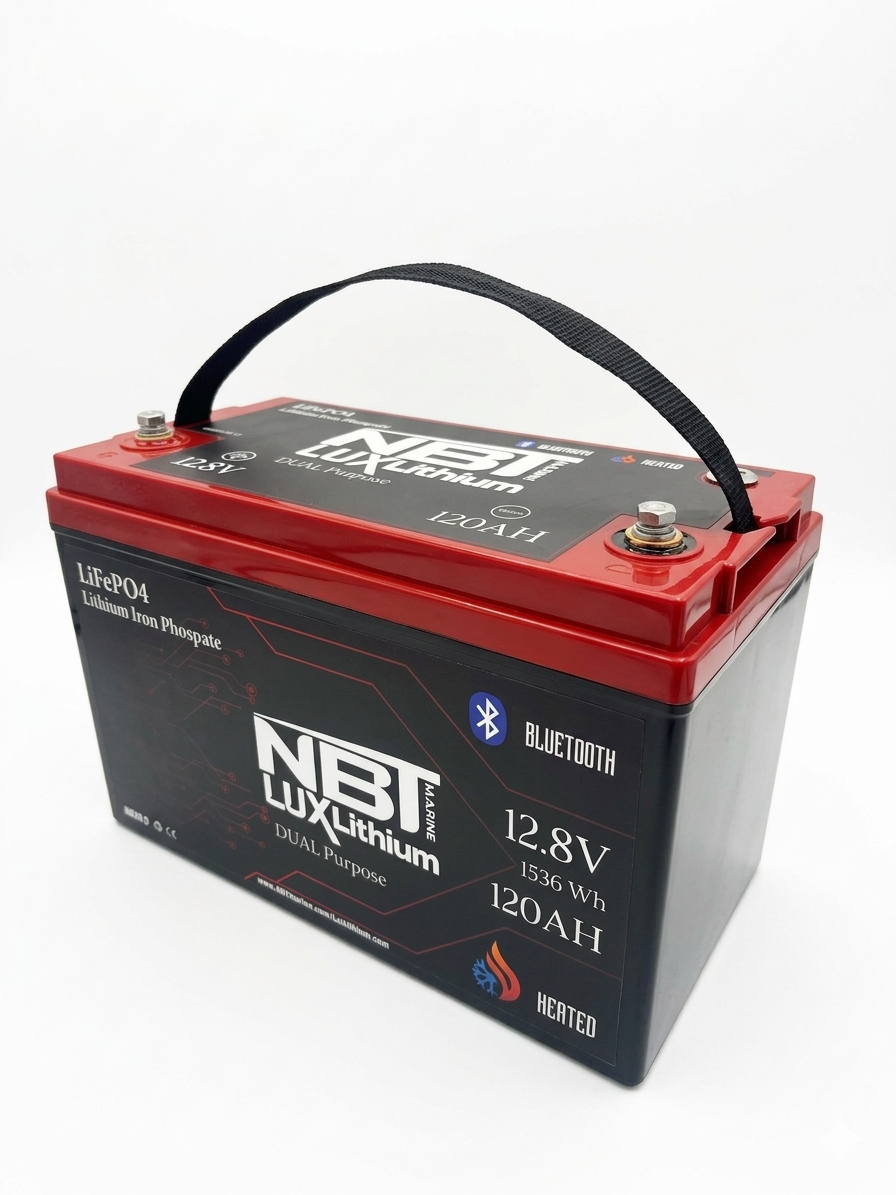

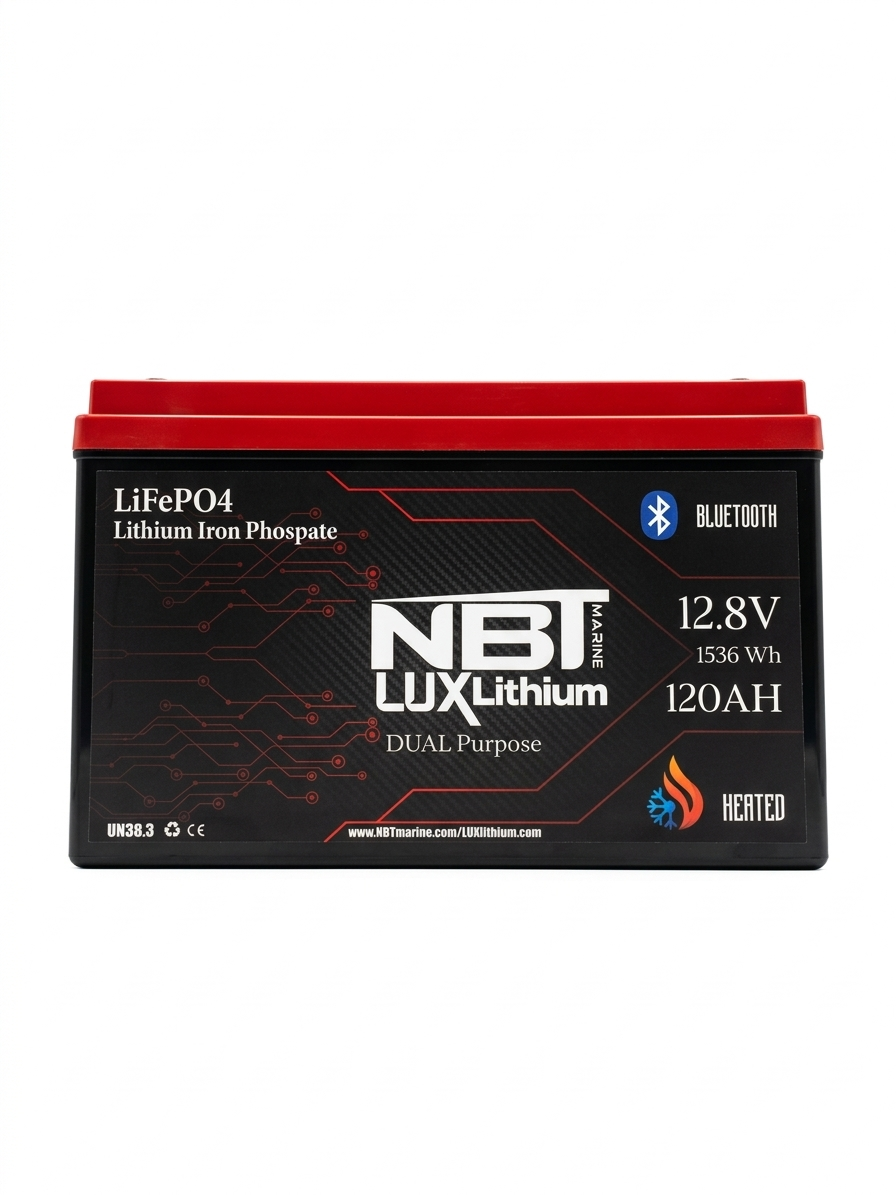

The NBT LUX 12V 120Ah is a dual-purpose LiFePO4 battery built for anglers and boaters who need both starting power and sustained energy. With 1200 cold cranking amps and an internal heater for cold weather operation, this battery handles outboards up to 300HP and delivers consistent voltage through long days on the water.
SPECIFICATIONS
WARRANTY
See manufacturer warranty (Warranty RMA – NBTmarine window.performance && window.performance.mark && window.performance.mark('shopify.content...)
WEIGHT
29.2 lbs
SIZE
Group 31 case (12.9" x 6.8" x 8.5")
STORAGE CAPACITY
120Ah at 12.8V. LiFePO4 chemistry delivers a flat voltage curve, meaning you get consistent usable capacity until the battery is nearly empty, unlike sealed lead acid batteries that lose performance as they discharge.
VOLTAGE
12.8V nominal
ENERGY
1536Wh (120Ah x 12.8V)

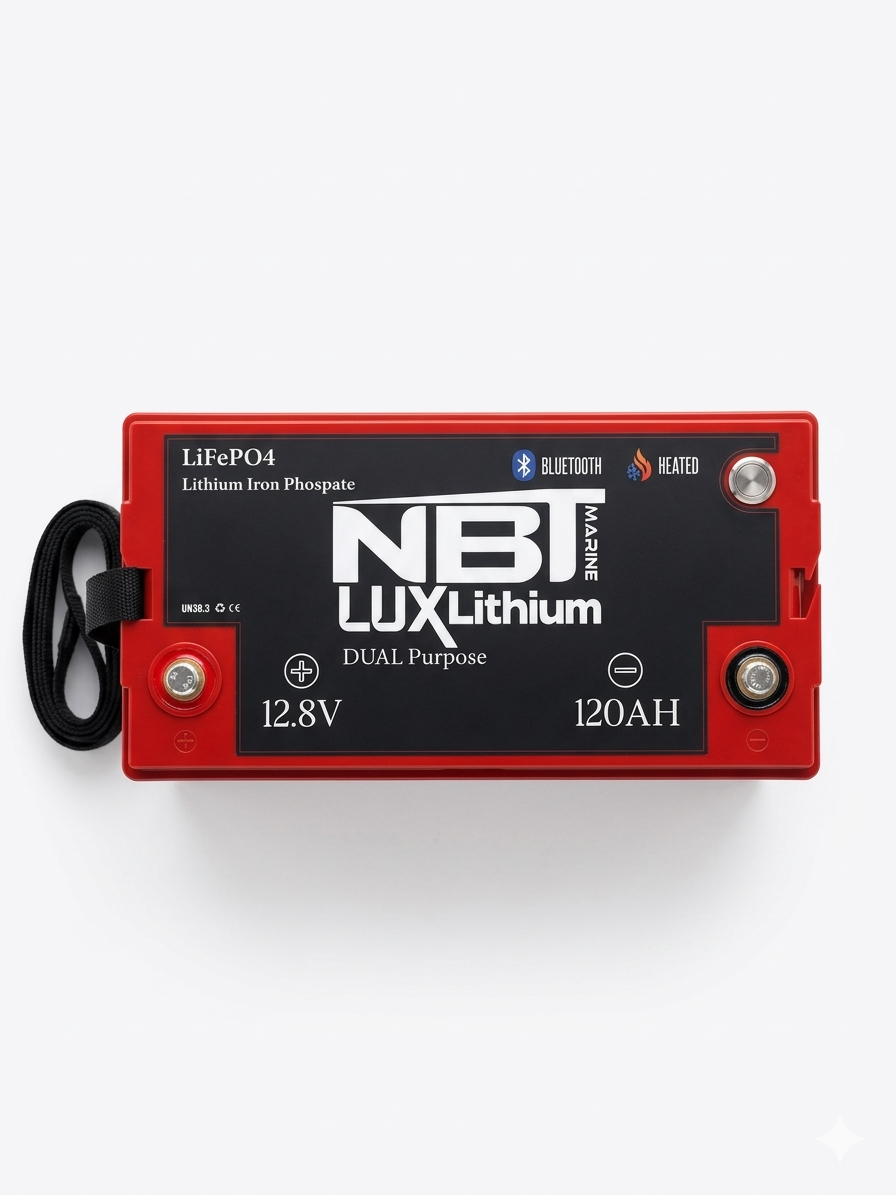

TERMINALS
Not specified by manufacturer
LIFECYCLES (BATTERY LIFESPAN)
Not specified by manufacturer
OPERATING TEMPERATURE
-4°F to 140°F. Internal heater provides low temperature and cold weather protection.
DISCHARGE
1200 CCA for high-power cranking. Over current protection included.
CHARGE
Not specified by manufacturer
INCLUDES ACTIVE BMS PROTECTION
Yes. Includes active BMS protection with cell balancing, low and high voltage cutoff, short circuit protection, and high temperature protection.
Bluetooth Capable
Yes. Bluetooth monitoring through NBT Luxury iOS and Android application.
Experience the NBT Marine Advantage
The NBT LUX 120Ah combines 1200 CCA starting power with extended runtime capacity in an IP67 waterproof package. Can be wired in series or parallel with up to four batteries for larger systems.
