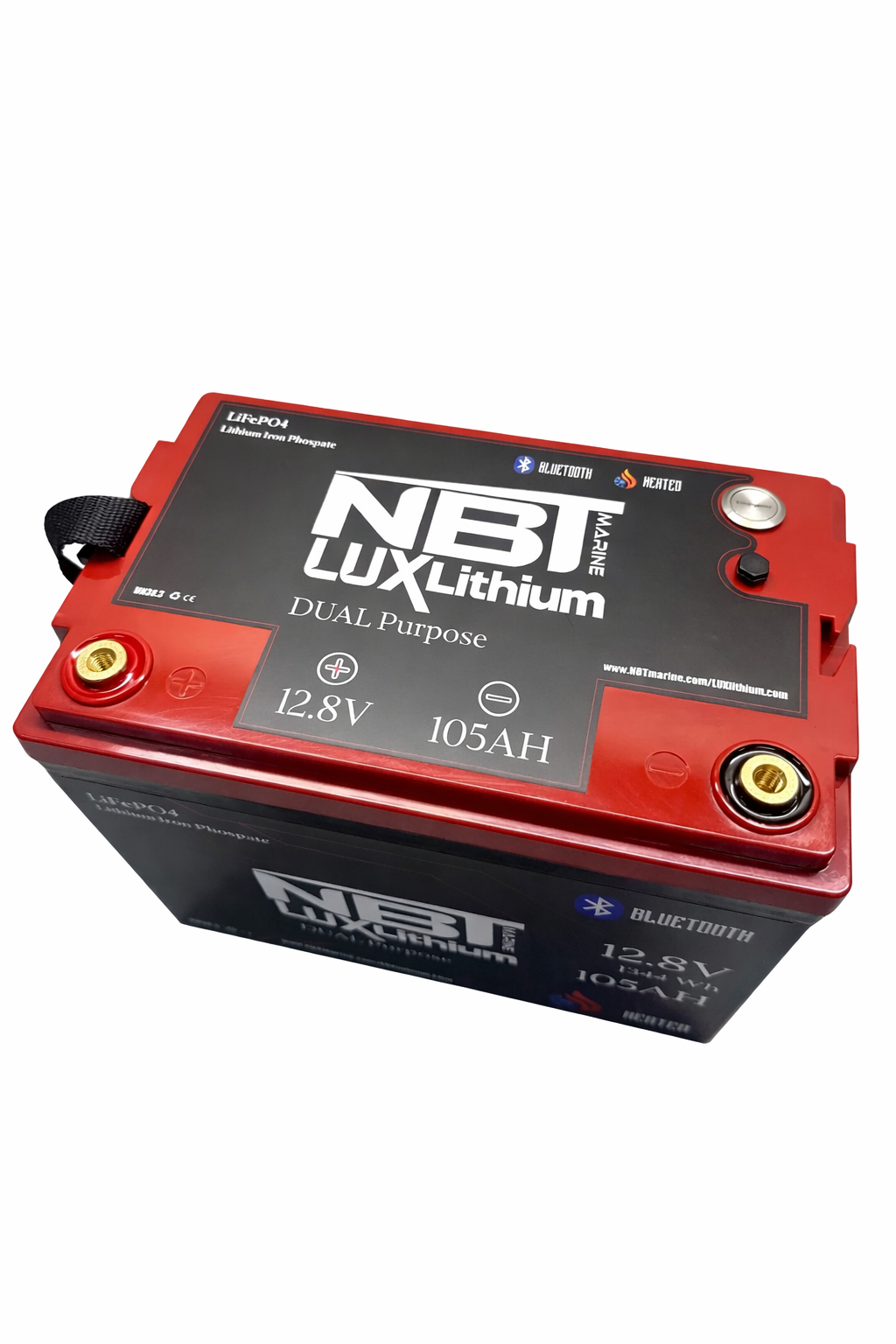

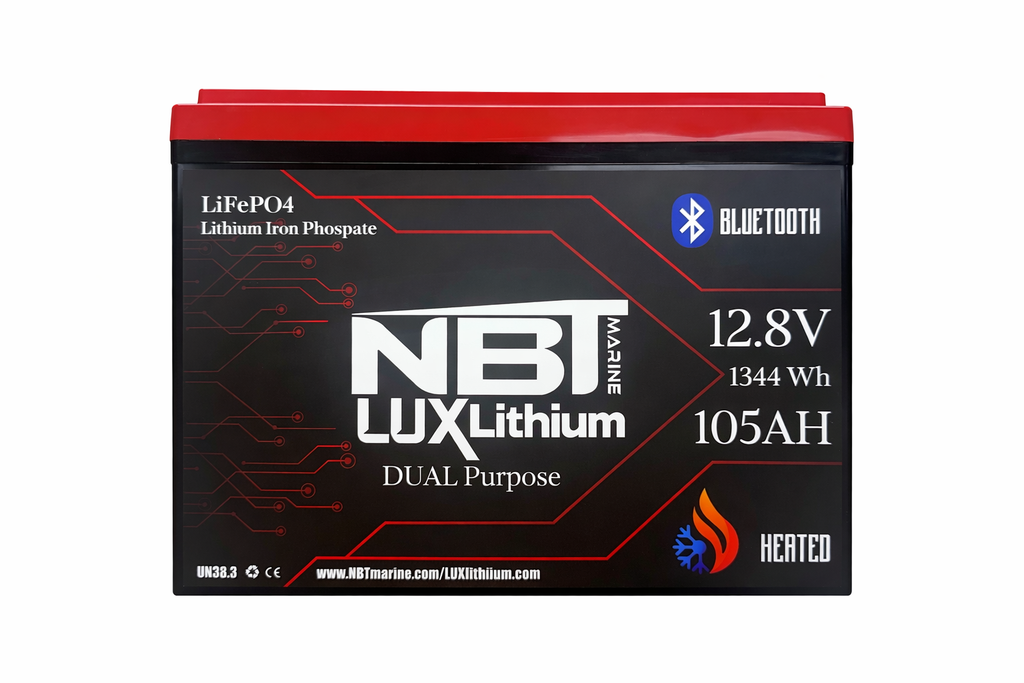

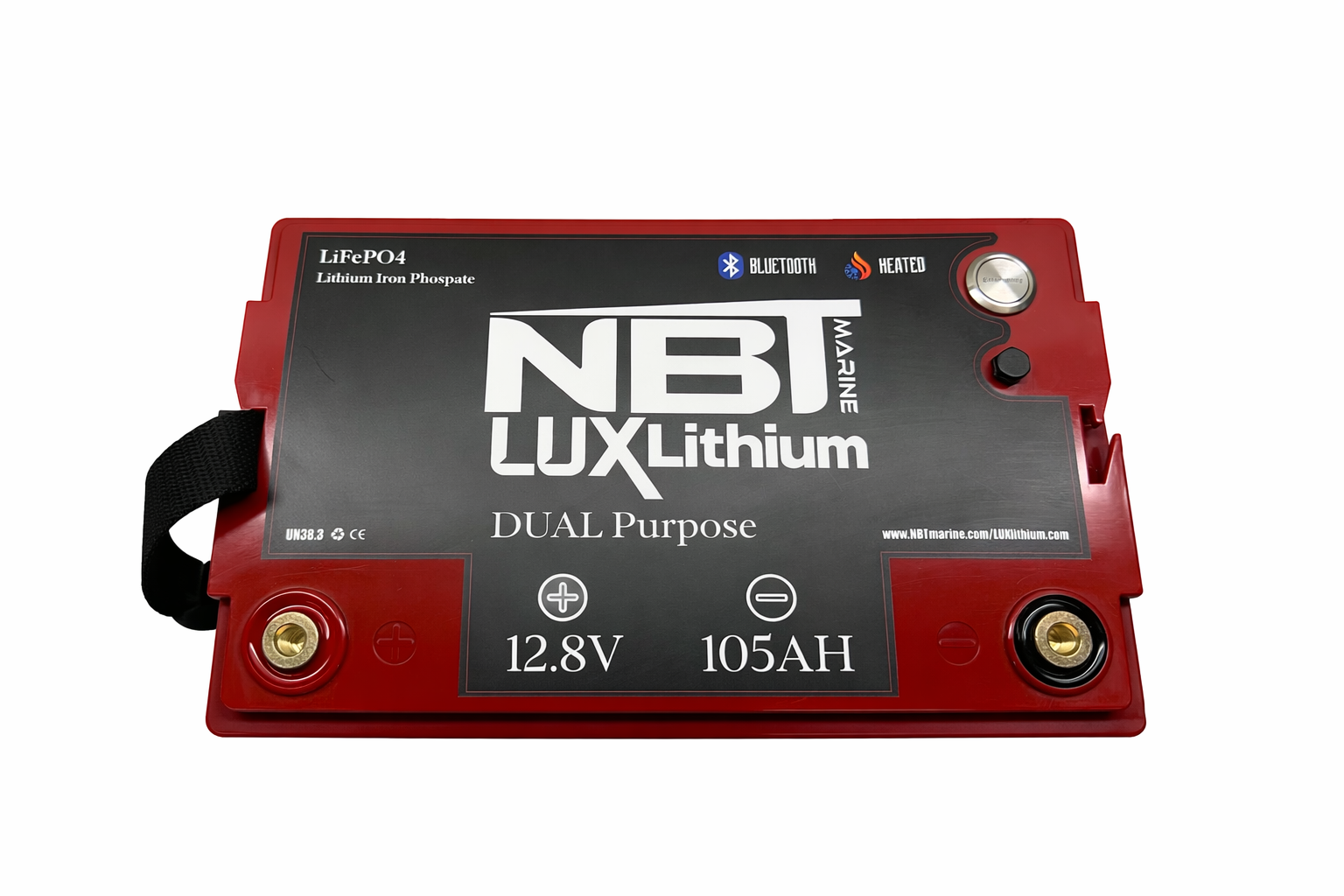

The NBT LUX 12V 105Ah is a dual-purpose lithium battery designed for boats with tight battery compartments where a standard Group 31 won't fit. This is a Group 24 case that delivers 1200 CCA for reliable starting on outboards up to 300HP, plus 105Ah of usable house power for electronics and accessories.
SPECIFICATIONS
WARRANTY
See manufacturer warranty (Warranty RMA – NBTmarine window.performance && window.performance.mark && window.performance.mark('shopify.content...)
WEIGHT
23.2 lbs
SIZE
Group 24 case (10.25 x 6.8 x 8.5 inches)
STORAGE CAPACITY
105Ah at 12.8V nominal
VOLTAGE
12.8V
ENERGY
Not specified by manufacturer
TERMINALS
Not specified by manufacturer
LIFECYCLES (BATTERY LIFESPAN)
Not specified by manufacturer
OPERATING TEMPERATURE
-4°F to 140°F. Includes internal heater and low temperature protection.
DISCHARGE

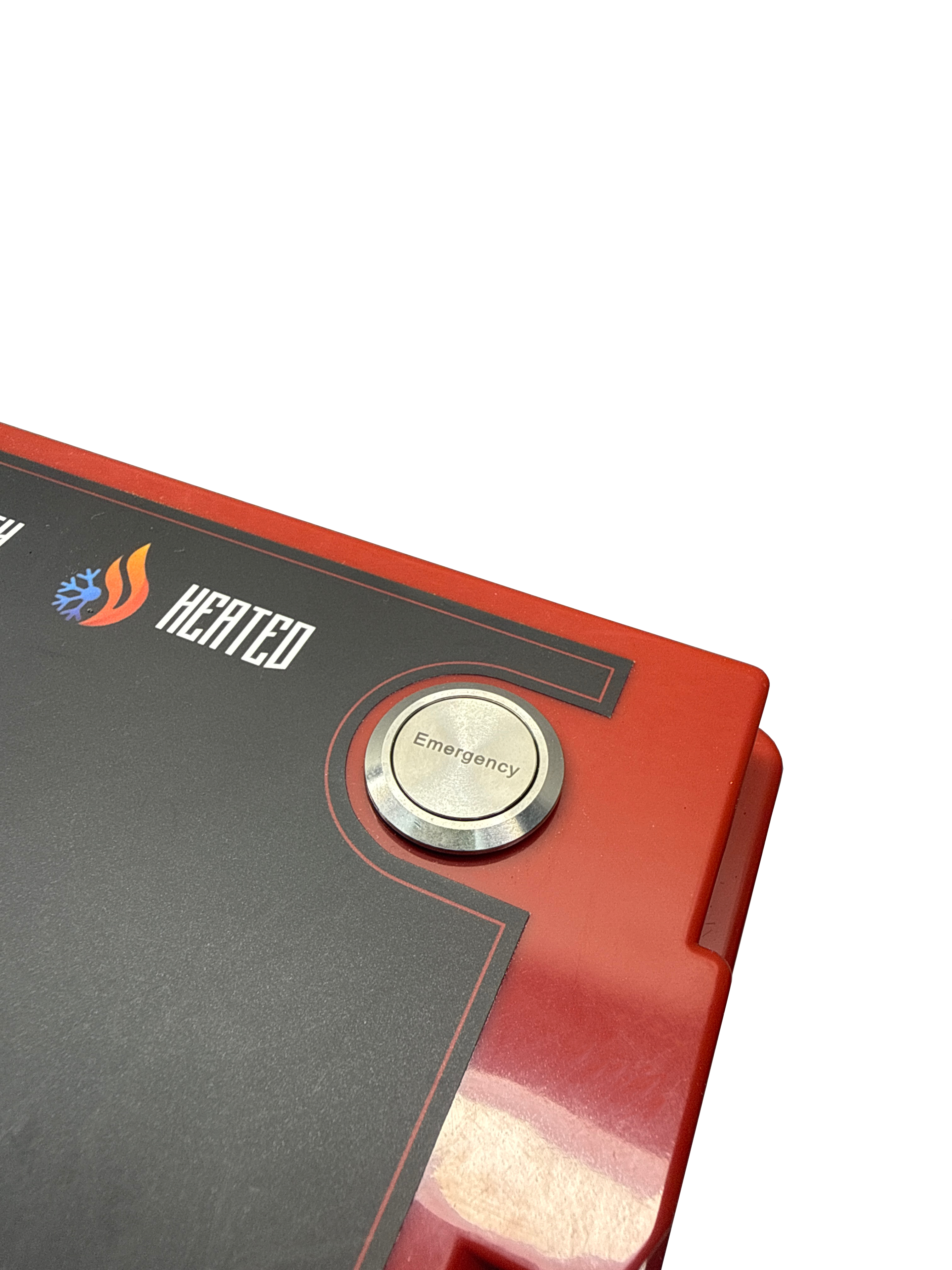

1200 CCA. Includes emergency start button with reserved power.
CHARGE
Not specified by manufacturer
INCLUDES ACTIVE BMS PROTECTION
Yes. Includes active BMS protection with cell balancing, low and high voltage cutoff, short circuit protection, and high temperature protection. Also includes over current protection.
BLUETOOTH CAPABLE
Yes. Bluetooth monitoring through NBT LUX iOS and Android application.
WATERPROOF RATING
IP67 waterproof protection
CONFIGURATION OPTIONS
Can be wired in series or parallel. Maximum of four batteries per system.
Experience the NBT Marine Advantage
The NBT LUX 12V 105Ah fits where larger batteries can't, delivers 1200 CCA for confident starting, and includes IP67 waterproof protection with an internal heater for reliable operation in extreme conditions.
