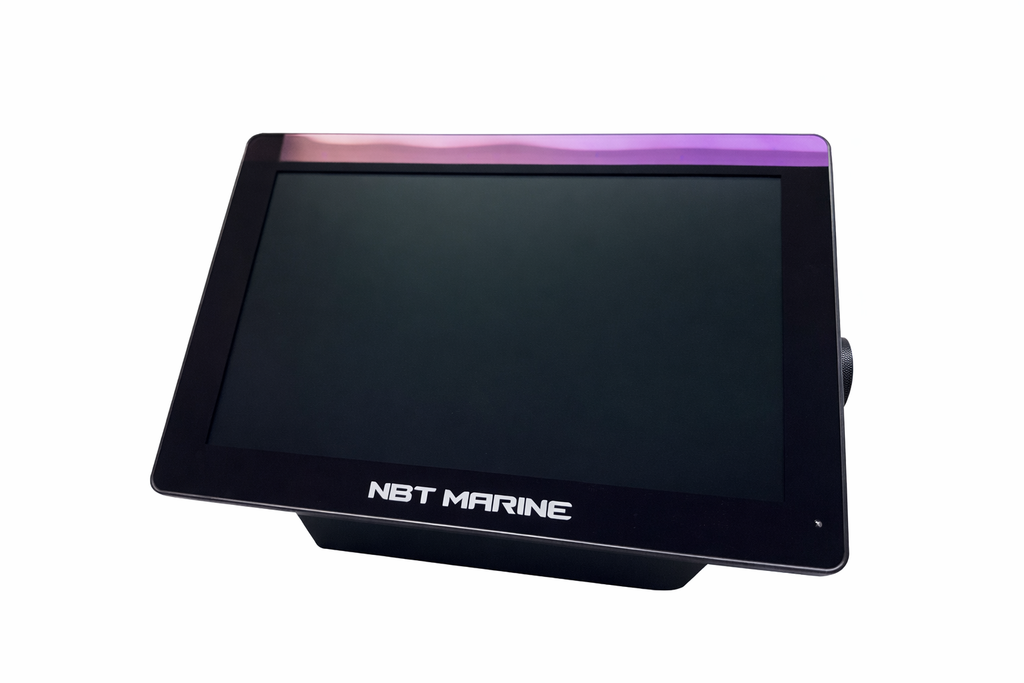

The NBT 14" PRO is a 14.3-inch touchscreen display built for anglers running Garmin LiveScope, SideVu, and DownVu. This plug-and-play monitor is engineered to handle up to two LiveScope transducers simultaneously with up to six split-screen boxes, giving you the multi-sonar capability tournament anglers demand without adding complexity to your console.
Why Anglers Choose the NBT 14" PRO
- 14.3-inch diagonal screen with 1200x800 resolution delivers clear imaging for LiveScope and traditional sonar
- 1500 nits brightness makes the display readable in direct sunlight without washing out your sonar returns
- IP67 waterproof rating and operational temperature range from -4°F to +170°F mean this monitor stays functional in harsh conditions
- Plug-and-play kit with 26-foot HDMI cable and included gimbal mount gets you on the water faster
- Optical bonding with anti-glare UV coating eliminates internal reflections that plague lower-grade displays
Premium Display Performance
- 14.3-inch diagonal display with 1200x800 resolution
- 1500 nits brightness (vivid sunlight readable)
- 10-point capacitive touchscreen with touch on/off control
- Up to 6 split-screen boxes for simultaneous sonar views
- OSD remote control included for hands-free operation
- Optical bonding with anti-glare UV coatings reduces reflection and increases clarity
Built for Harsh Marine Environments
- IP67 waterproof rating protects against water intrusion
- Operating temperature range: -20°C to +75°C (-4°F to +170°F)
- Rugged shock resistance rated to 20G

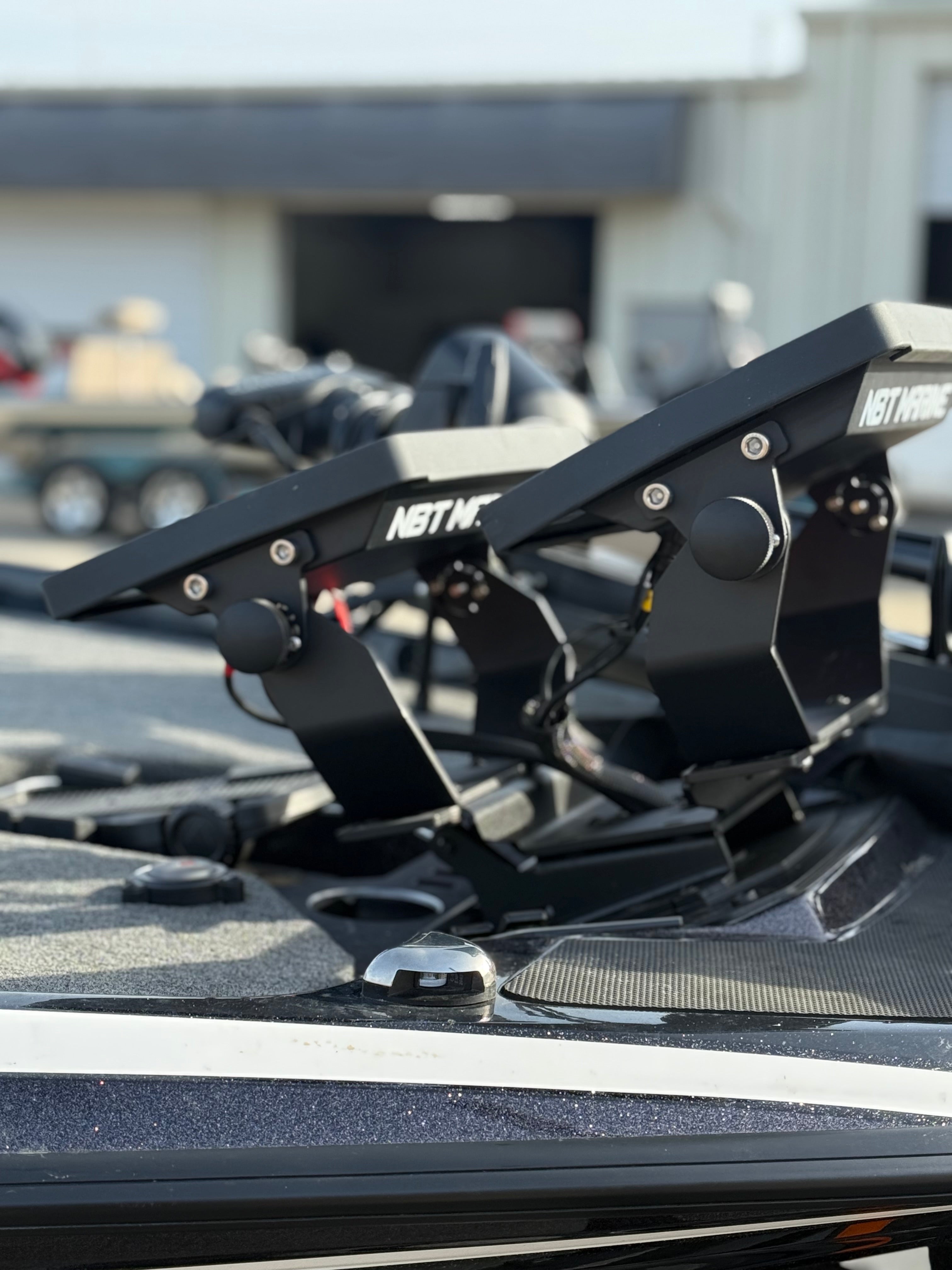

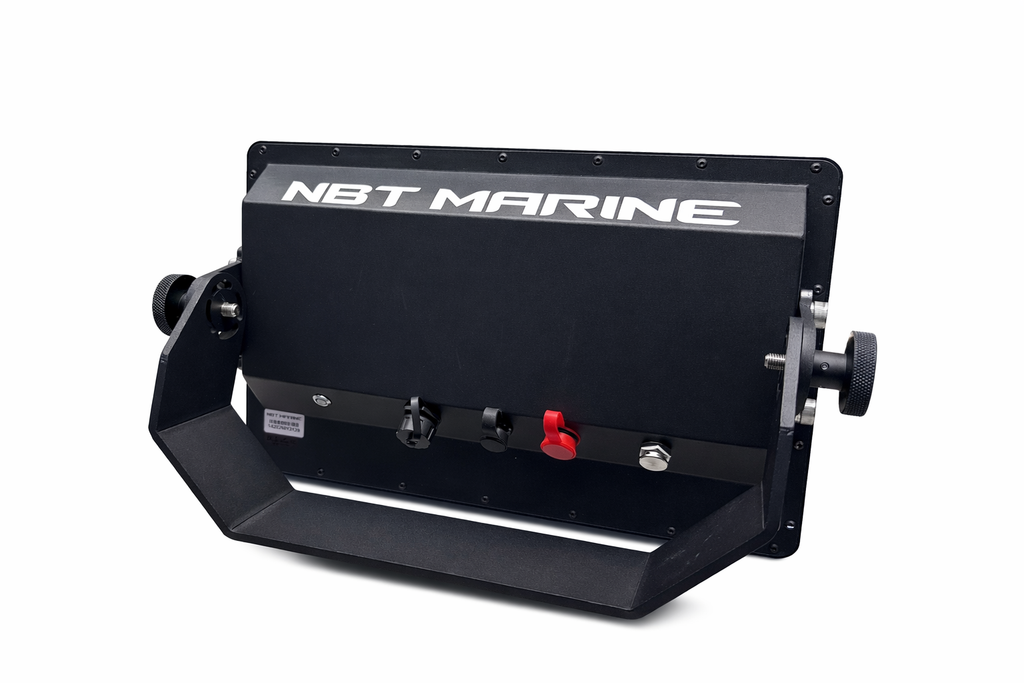

- Included gimbal mount with 14.25" x 10" footprint
- Polarization capable for reducing glare on the water
- Weight: 8 lbs
Advanced Compatibility
- Garmin 1243 (XSV or non-XSV) , 100% functions, recommended unit
- Garmin 8700*
- Garmin 1643 (XSV or non-XSV)*
- Garmin 8610, 8410 (XSV or non-XSV)*
- Garmin 8612, 8412 (XSV or non-XSV)*
- Garmin 8616, 8416 (XSV or non-XSV)*
- LiveScope: All compatible units up to 2 LiveScope transducers
- SideVu/DownVu: All compatible XSV units or GCV box
- * Some limitations apply with these units compared to full functionality with the Garmin 1243
Power & Connectivity
- HDMI cable: 8 meters (26 feet)
- DC power cable: 4 meters (13 feet)
- USB cable: 8 meters (26 feet)
- Power input: DC 10V to 28V
- Typical current draw at 12 VDC: 4.2A
- Maximum current draw at 12 VDC: 7A
Why Upgrade
- Running two LiveScope transducers on a single 14-inch screen eliminates the need for multiple smaller displays cluttering your console
- 1500 nits brightness means you stop losing sonar detail when the sun hits your screen at the wrong angle
- Plug-and-play setup with 26-foot cables means you spend less time troubleshooting connections and more time fishing
The NBT 14" PRO includes everything needed for installation and is backed by the manufacturer warranty.
