Monster Marine Focus 22 Marine Display

The Monster Monitor Focus 22 is a 21.5-inch Full HD marine display built for anglers running forward-facing sonar. With 1500-nit brightness, vac-sealed optically bonded anti-reflective glass, and 10-point capacitive touch, this IP67-rated monitor delivers professional-grade clarity for Garmin head units with full mirror and touch control.

Why Anglers Choose the Focus 22

• Massive 21.5-inch viewing surface eliminates squinting and lets you track multiple targets at once without toggling screens
• 1500-nit brightness with anti-reflective 7H hardness glass cuts glare and maintains sonar image accuracy in direct sunlight
• Vac-sealed optically bonded construction prevents internal fogging and condensation that ruins cheaper displays
• 10-point capacitive touchscreen works with gloves and responds instantly to pinch, zoom, and swipe commands
• All-aluminum fanless housing with IP67 waterproof sealing handles spray, humidity, and temperature extremes without cooling fans that fail

Premium Display Performance

• 21.5-inch Full HD display (1920×1080 resolution, 16:9 aspect ratio)
• 1500-nit brightness with auto-sensing and manual adjustment for day and night visibility

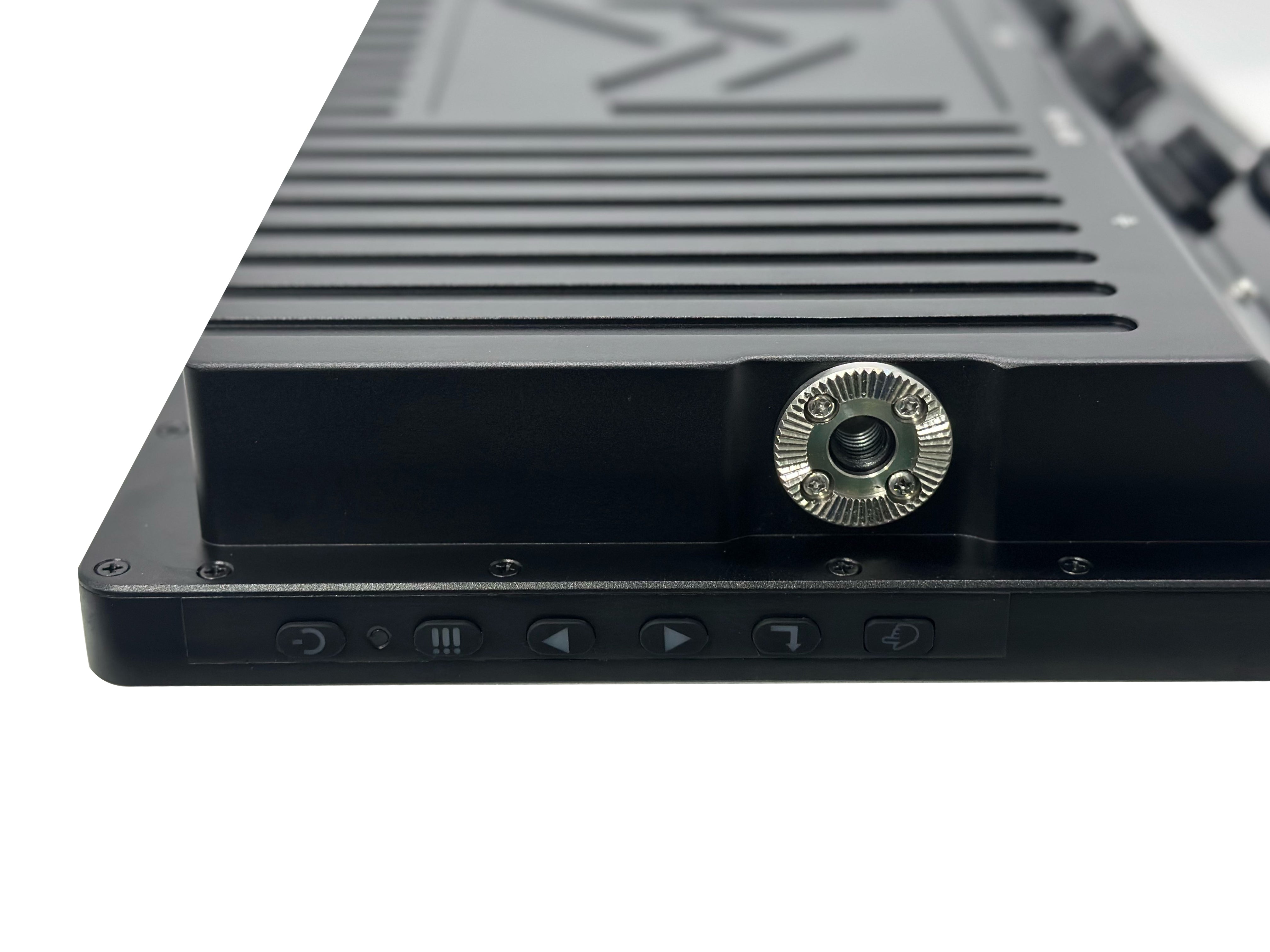

• 10-point capacitive touchscreen with touch lockout button for cleaning or wet conditions
• Vac-sealed optically bonded panel with anti-reflective surface treatment eliminates internal reflections and fogging

Built for Harsh Marine Environments

• IP67 waterproof rating protects against spray, rain, and wash-down
• Operating temperature range: -20°C to 70°C (-4°F to 158°F)

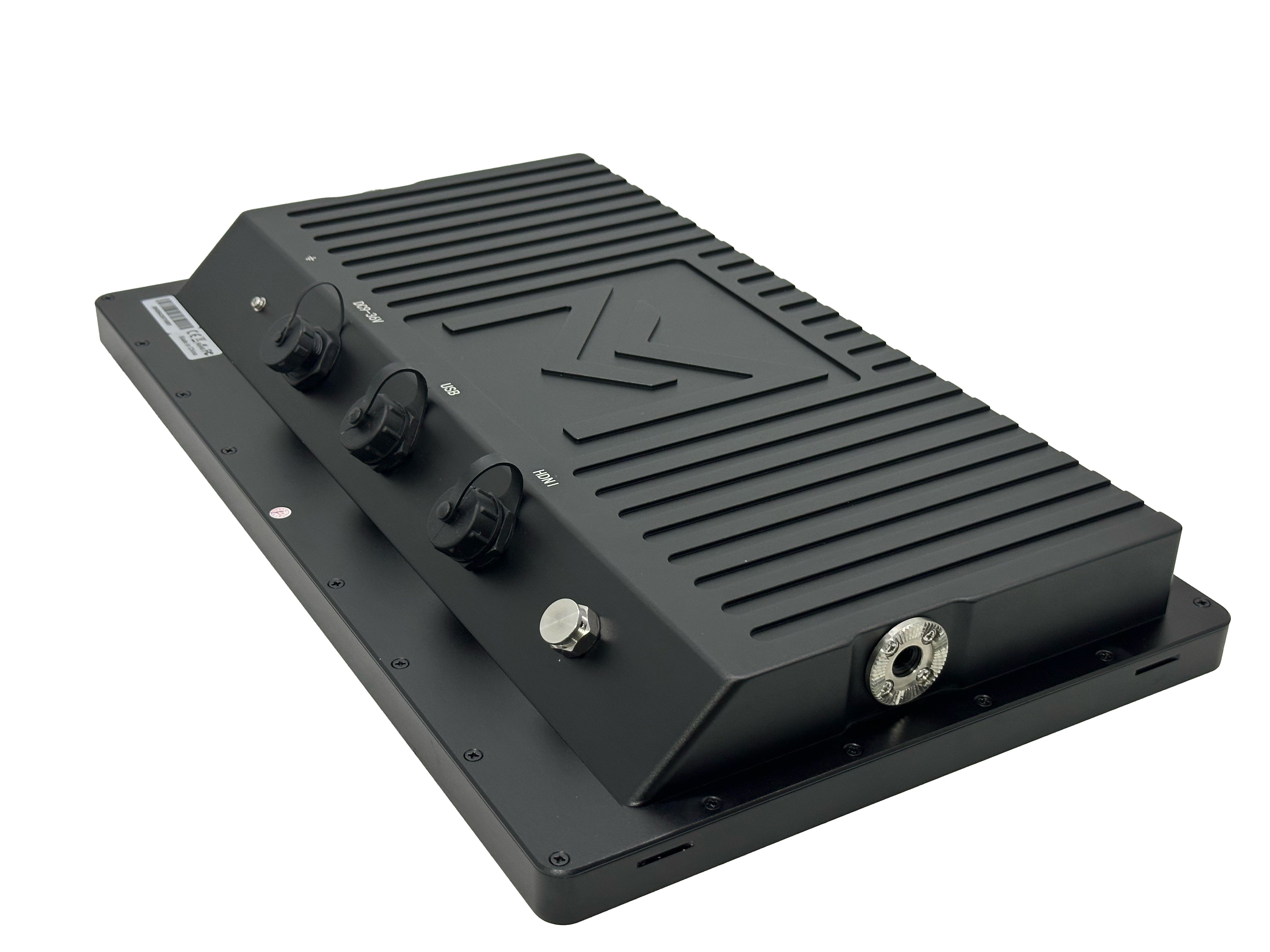

• Fanless all-aluminum construction eliminates moving parts that fail in salt air
• Operates in up to 100% humidity without condensation damage

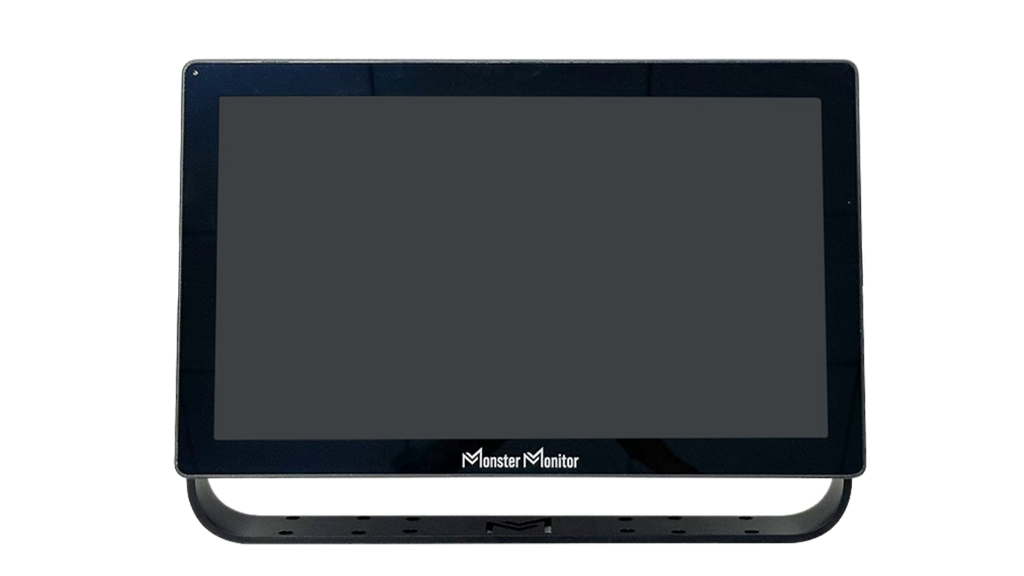

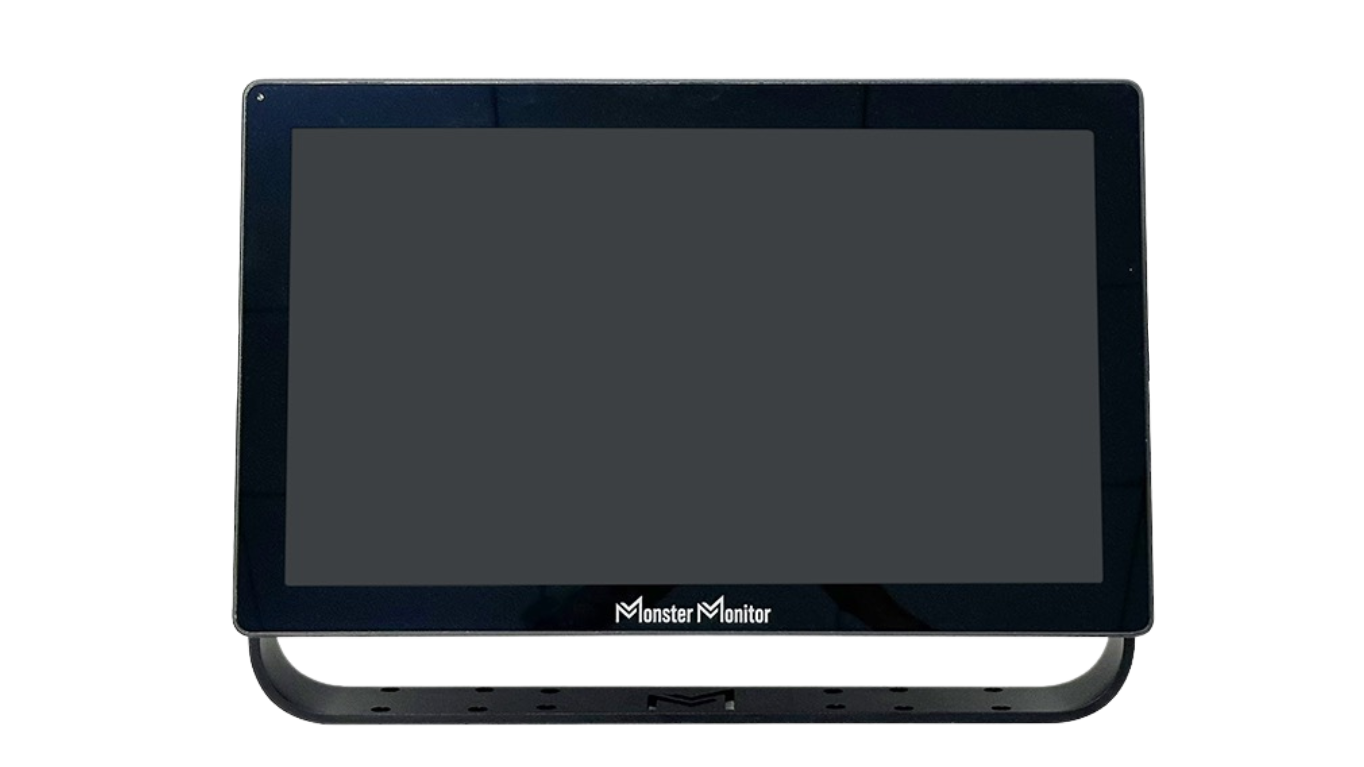

• Mounts in included cradle with adjustable tilt for optimal viewing angles

Advanced Compatibility

• Garmin GPSMAP (Mirror and Touch Control): 8610, 8612, 8616, 1243, 1623, 1643, 8700 box
• Garmin Echomap (Mirror Only, No Touch Control): 162, 166*
• Humminbird Apex (Mirror Only, No Touch Control): 13, 16, 19*
• Lowrance units: Coming soon (contact shop for current compatibility status)
• * Limitation note: Echomap and Humminbird units support video mirroring only. Touch control is not available on these models.

Power & Connectivity

• IP67-rated HDMI cable (26 feet) and USB-A cable (26 feet) included
• Power cable with locking ring (15 feet) included
• Input voltage: 9-36 V DC (requires 10 A fuse for warranty compliance)
• Power consumption: Typical 4.4 A, Maximum 5.2 A (less than 68 W)
• Net weight: 15.5 lbs (7.03 kg)

Why Upgrade

• Small 7-inch and 9-inch head units force you to choose between seeing the whole picture and seeing detail. A 21.5-inch display shows both at once without scrolling or toggling.
• Cheaper monitors with air gaps between the glass and panel create internal reflections and fogging that wash out sonar images when you need them most. Vac-sealed optical bonding eliminates both problems.
• Standard touchscreens lose responsiveness with wet gloves or spray. 10-point capacitive touch maintains full control in conditions that make resistive screens useless.

The Focus 22 ships with mounting cradle, IP67 cables, power cable, and installation hardware. Backed by a 2-year limited warranty covering defects in materials and workmanship under normal use.
