Monster Marine Focus 19 Marine Display

The Monster Monitor Focus 19 is an 18.5-inch Full HD marine display built for anglers running forward-facing sonar from Garmin, Lowrance, or Humminbird. With 1500-nit brightness, vac-sealed optically bonded anti-reflective glass, and IP67 waterproofing, this monitor delivers the clarity and durability tournament anglers need when screen performance makes the difference between a missed fish and a win.

Why Anglers Choose the Monster Monitor Focus 19

• 18.5-inch screen gives you the real estate to see LiveScope, SideVu, or DownVu returns in full detail without squinting or toggling between split views
• 1500-nit brightness cuts through direct sunlight, so you can read your screen at noon in July just as clearly as you can at dawn
• Vac-sealed optically bonded glass eliminates internal fogging, reduces glare, and sharpens image quality in conditions that wash out cheaper screens

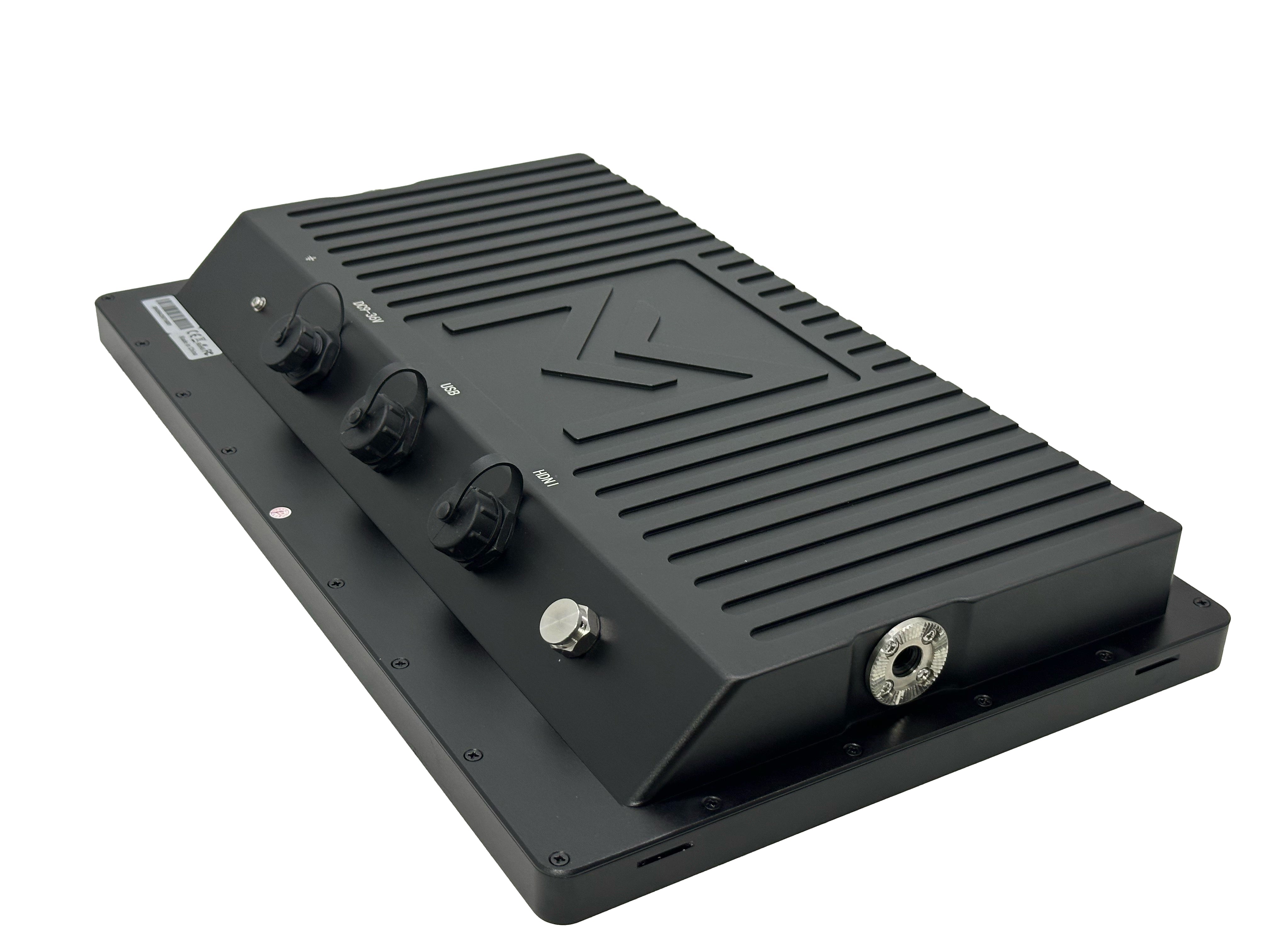

• IP67-rated all-aluminum housing with fanless cooling means no moving parts to fail, no moisture intrusion, and silent operation that won't interfere with sensitive electronics
• 10-point capacitive touchscreen responds instantly, even with wet gloves, and includes a lockout button so you can wipe the screen without triggering menus

Premium Display Performance

• 18.5-inch panel
• 1920 × 1080 Full HD resolution
• 1500 nits brightness with automatic light sensor and manual override
• 10-point capacitive touchscreen
• 16:9 aspect ratio
• Vac-sealed optically bonded anti-reflective glass

Built for Harsh Marine Environments

• IP67 waterproof rating on housing and sealed HDMI and USB ports
• All-aluminum fanless construction for silent operation and heat dissipation
• Operating temperature range: Not specified by manufacturer
• Includes cradle mount for secure installation (select correct gimbal bracket height for your mounting location before ordering)

Advanced Compatibility

• Garmin head units: Full integration via HDMI and USB-A for forward-facing sonar, mapping, and touchscreen control
• Lowrance systems: Compatible via HDMI connection (feature compatibility varies by model)
• Humminbird systems: Compatible via HDMI connection (feature compatibility varies by model)

Power & Connectivity

• HDMI input (IP67 sealed connector)
• USB-A port (IP67 sealed connector)
• 9, 36V DC power input with built-in protection
• Requires 7.5A fuse
• Typical current draw: 3.4A
• Maximum current draw: 4.2A
• Power consumption: Less than 50W

Why Upgrade

• If you are running a smaller head unit screen and missing fish because you cannot see enough detail in your forward-facing sonar returns, this 18.5-inch display gives you the full picture without switching views mid-cast
• If glare or low brightness has you tilting your screen or waiting for cloud cover to read it clearly, 1500 nits and anti-reflective bonded glass solve that problem permanently
• If you have replaced touchscreens that fogged internally or failed after a season of rain and spray, the IP67-rated sealed construction and fanless aluminum housing are built to outlast cheaper monitors by years

Backed by the manufacturer warranty. We stock this monitor for anglers who need a display that works as hard as they do.
