Monster Marine Focus 16 Marine Display

The Monster Monitor Focus 16 is a 15.6-inch Full HD marine display built for serious anglers running Garmin head units. With 1500-nit brightness, vac sealed optically bonded glass, and IP67 waterproof protection, this monitor delivers tournament-grade visibility in direct sunlight and integrates seamlessly with LiveScope, traditional sonar, and mapping systems.

Why Anglers Choose the Monster Monitor Focus 16

• 15.6-inch screen provides more usable area for split-screen sonar, mapping, and forward-facing displays without toggling between views.
• 1500-nit brightness with optically bonded anti-reflective glass eliminates washout and glare, even under direct sun.
• IP67-sealed aluminum housing and fanless cooling deliver reliable performance in spray, rain, and rough water.
• 10-point capacitive touchscreen works with wet hands or gloves, and the touch lockout button disables input during cleaning or heavy weather.
• Plug-and-play HDMI and USB-A connections integrate with Garmin head units without additional adapters or custom wiring.

Premium Display Performance

• 15.6-inch screen with 1920×1080 Full HD resolution and 16:9 aspect ratio
• 1500-nit brightness for visibility in full sun

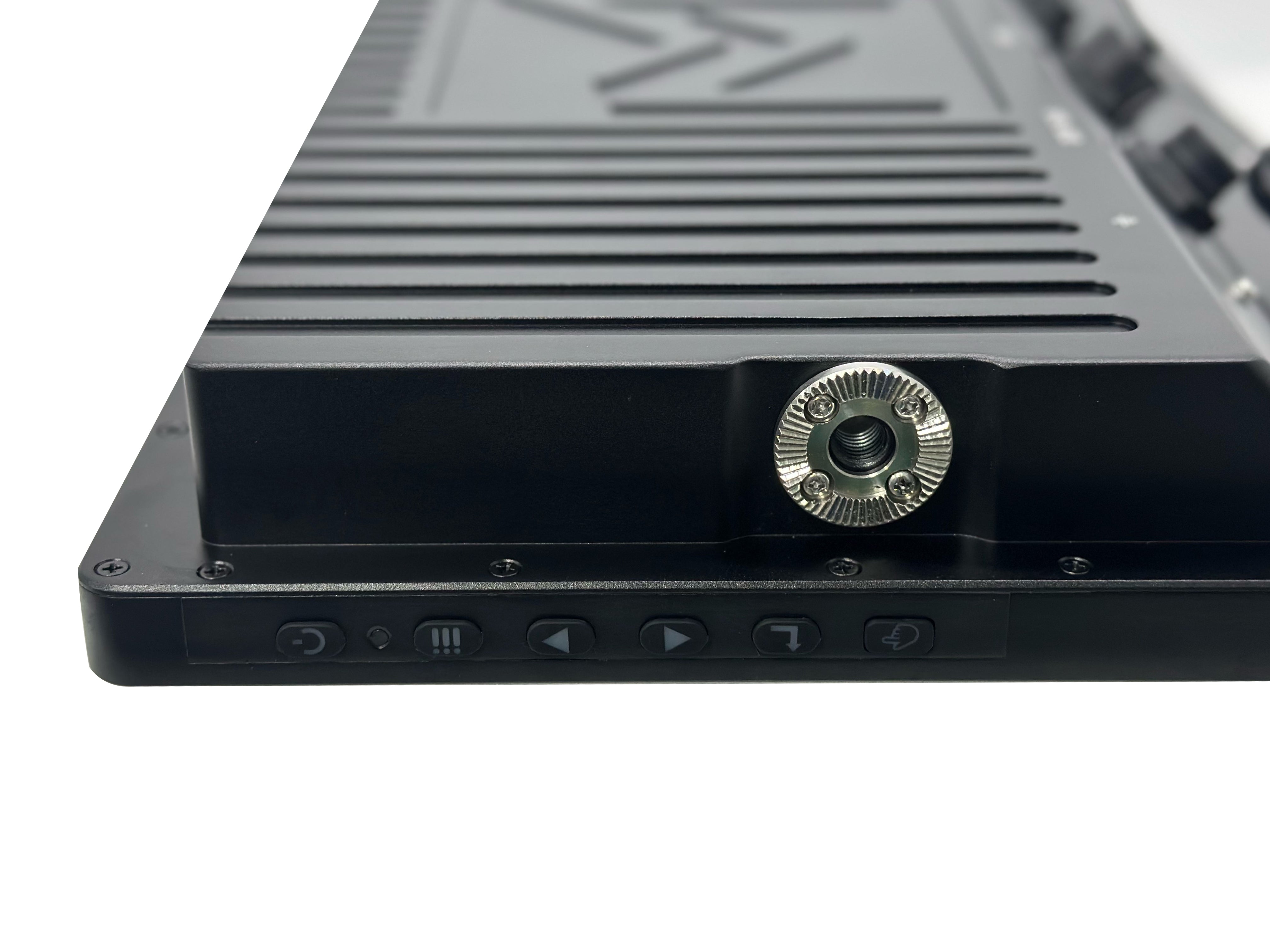

• 10-point capacitive touchscreen with touch lockout button
• Vac sealed optically bonded anti-reflective glass eliminates internal fogging and glare
• Automatic light sensor with manual brightness override

Built for Harsh Marine Environments

• IP67 waterproof rating on housing and sealed HDMI and USB ports
• Operating temperature range: Not specified by manufacturer

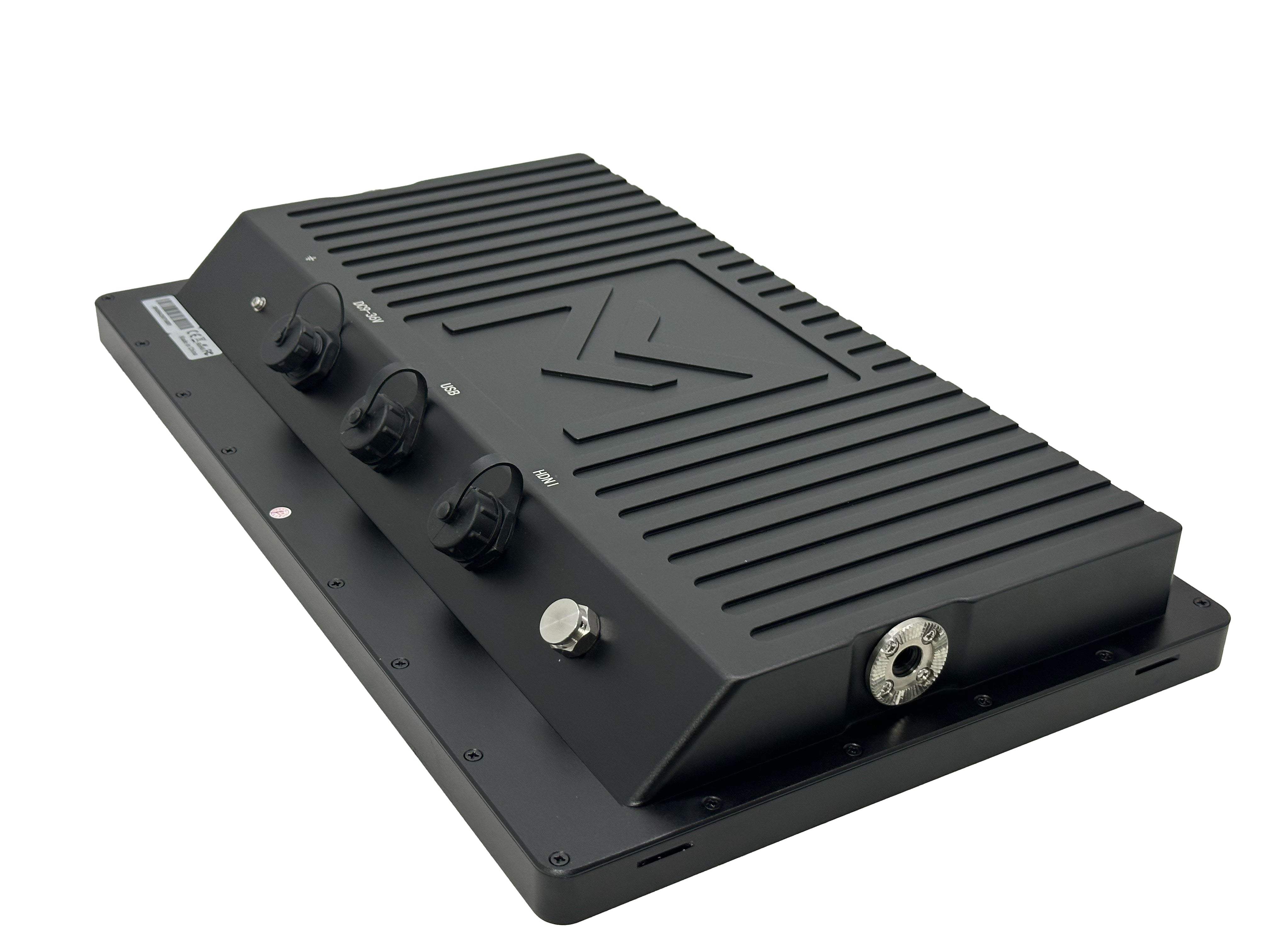

• All-aluminum corrosion-resistant sealed housing with fanless cooling
• Mounts into precision cradle for adjustable tilt and stable operation in rough water

Advanced Compatibility

• Seamless integration with Garmin head units via HDMI and USB-A
• Compatible with Lowrance and Humminbird units with some limitations*
• * Limitation note: Source indicates limitations exist for Lowrance and Humminbird integration but does not specify models or details. Contact manufacturer for compatibility confirmation.

Power & Connectivity

• HDMI connection (IP67 sealed): cable length not specified by manufacturer
• USB-A connection (IP67 sealed): cable length not specified by manufacturer
• 9-36V DC input voltage range
• Typical current draw: 2.8A at 12V
• Maximum current draw: 3.5A at 12V
• Requires 5A fuse for installation
• Power consumption: less than 45W

Why Upgrade

• Running a small head unit screen forces you to toggle between sonar and mapping constantly. A 15.6-inch display lets you see both at once without losing critical forward-facing sonar detail.
• Most monitors wash out in direct sun or fog up internally after a few months. This one uses vac sealed optically bonded glass and 1500-nit brightness to stay clear in any condition.
• Standard displays fail when spray hits unsealed connections. IP67-rated HDMI and USB ports, fanless cooling, and all-aluminum construction mean this monitor works when others quit.

The Focus 16 ships ready to mount and integrate with your Garmin system. Backed by the manufacturer warranty.
