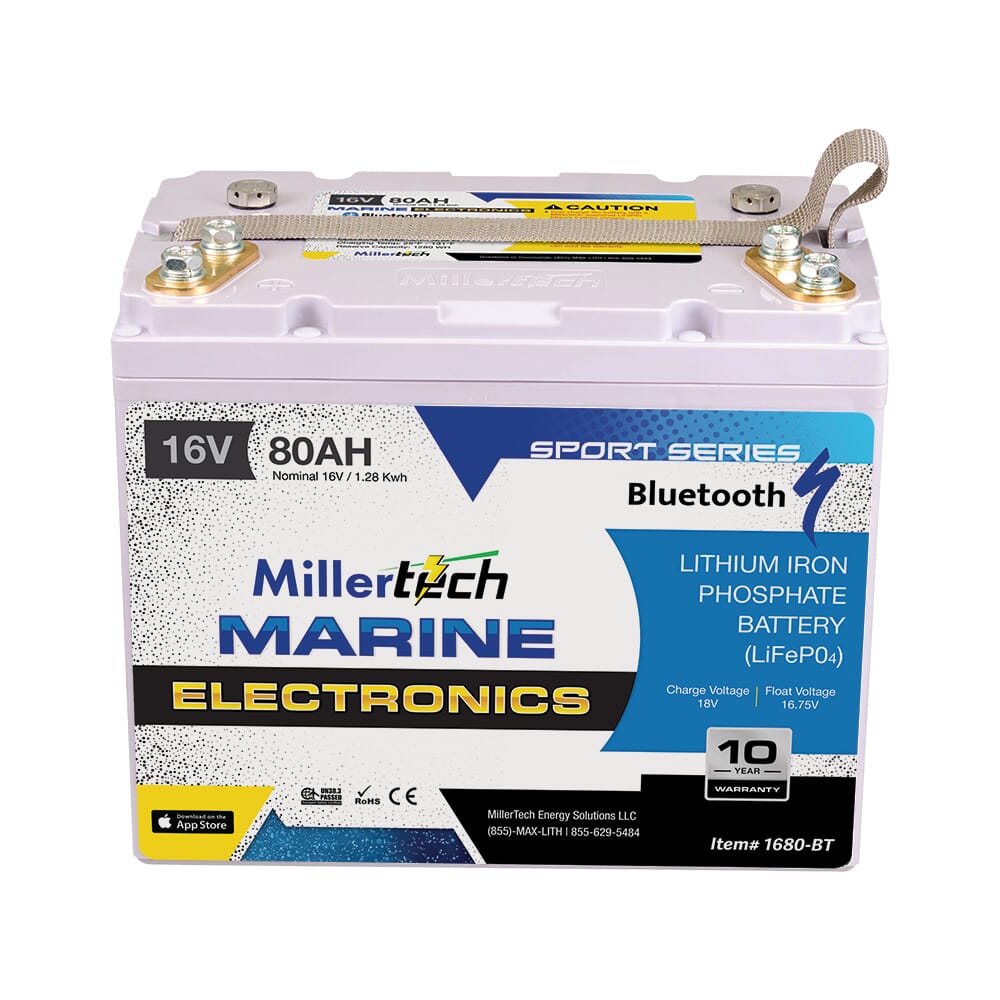

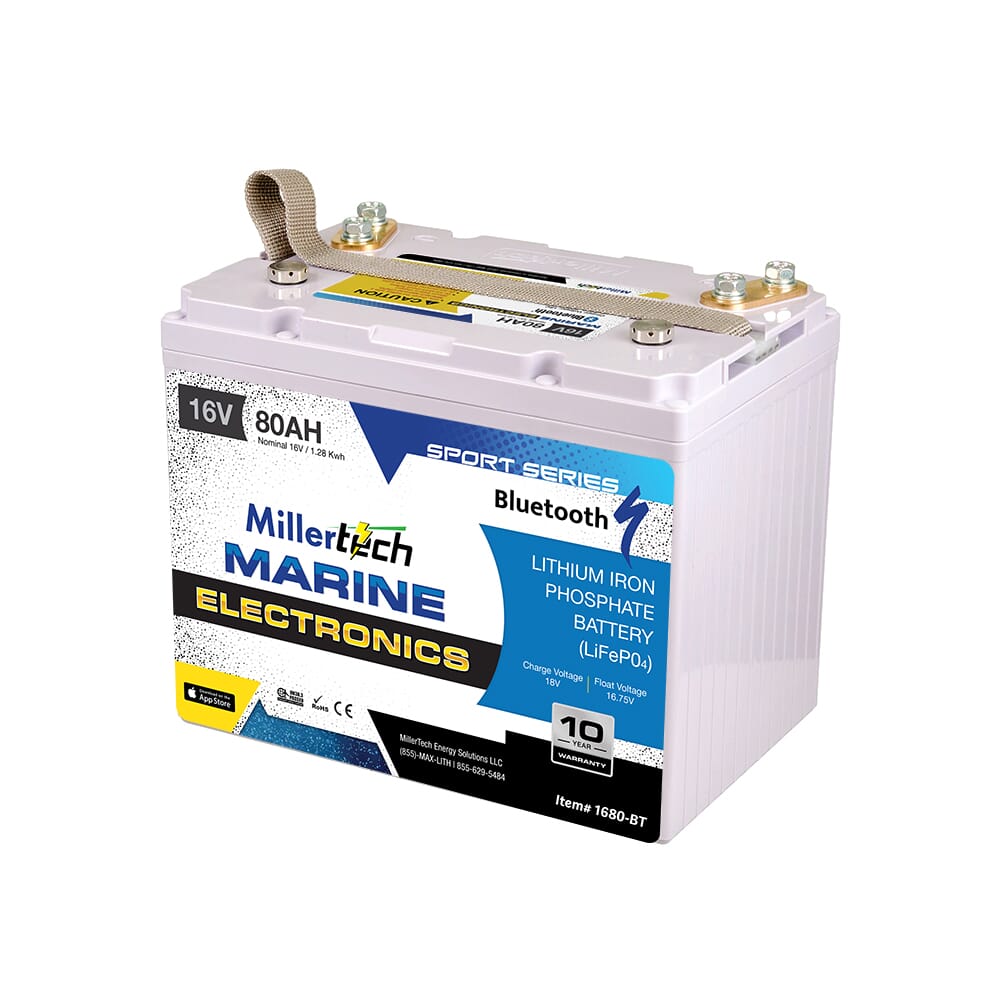

The Millertech Lithium 16V 80AH Marine Electronics Battery (1680-BT) is built for serious multi-battery marine electronics systems requiring stable, high-capacity 16-volt power. At 1.28kWh of storage in a 26.55-pound package, this battery delivers the energy density and runtime lithium is known for without the weight penalty of traditional lead-acid alternatives.
SPECIFICATIONS
WARRANTY
See manufacturer warranty
WEIGHT
26.55 lbs

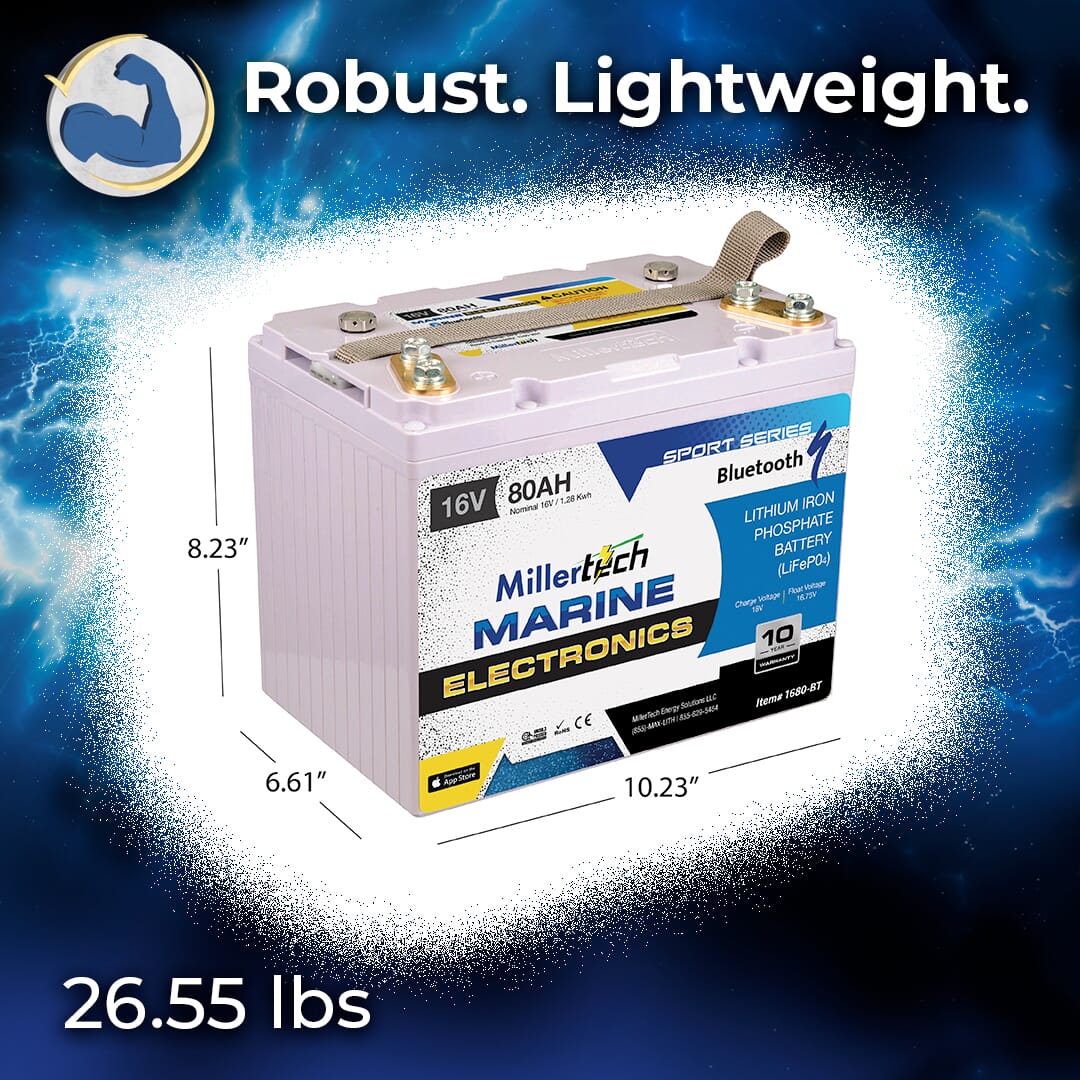

SIZE
10.23" x 6.61" x 8.35"
STORAGE CAPACITY
80AH (1.28kWh)
VOLTAGE
Nominal: 16V
Float: 16.75V
Low discharge cutoff: 12.5V
ENERGY
1.28kWh

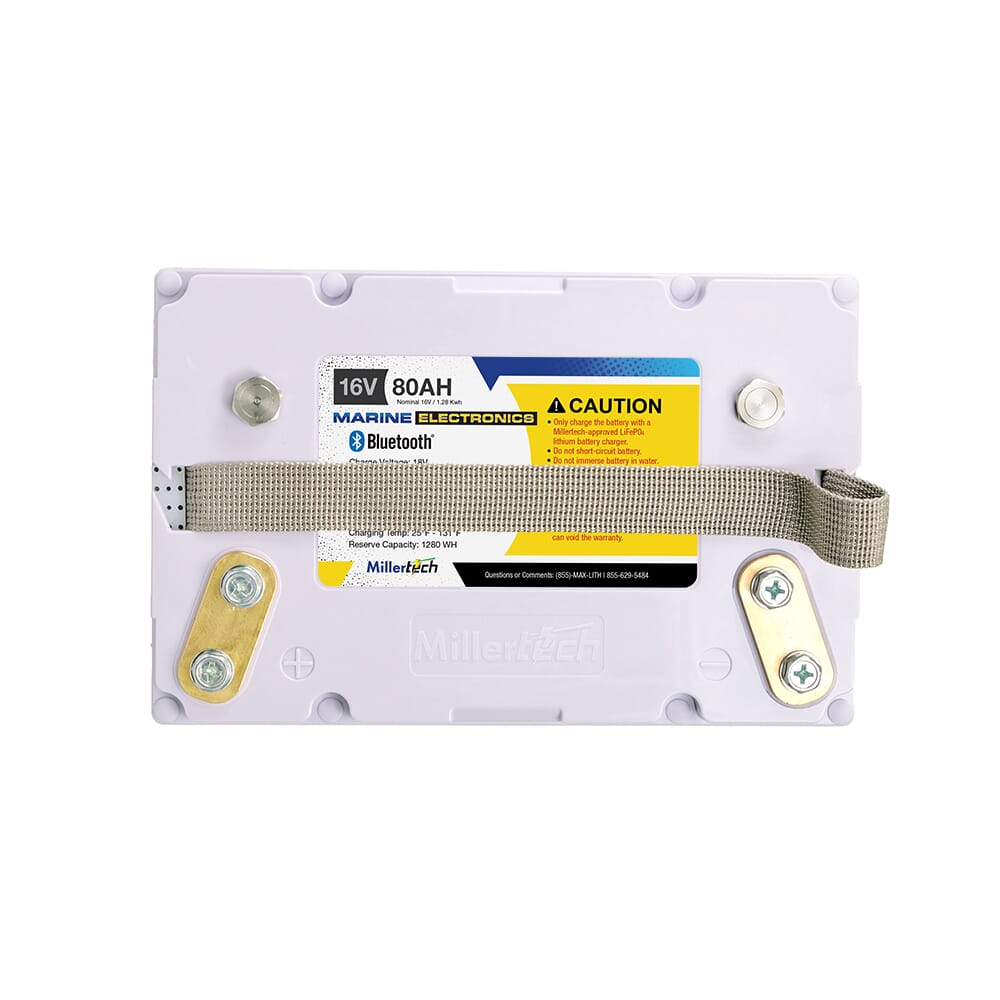

TERMINALS
Torque setting: 10 ft-lbs
LIFECYCLES (BATTERY LIFESPAN)
Self-discharge rate: Less than 4% per month
OPERATING TEMPERATURE
Discharge (operating): -4°F to 140°F
Charge: 25°F to 131°F
DISCHARGE
Max continuous: 65A
5-second peak: 80A
CHARGE
Max voltage: 18V
Max current: 65A
Recommended current: 15A
Recommended CV: 15
INCLUDES ACTIVE BMS PROTECTION
Yes. Includes active BMS protection with cell balancing, low and high voltage cutoff, short circuit protection, and high temperature protection.
Bluetooth Capable
Yes (BT model)
Experience the Millertech Lithium Advantage
The 1680-BT puts 1.28kWh of stable 16-volt power where you need it, with Bluetooth monitoring so you know exactly what your electronics battery is doing before you're 20 miles offshore.
