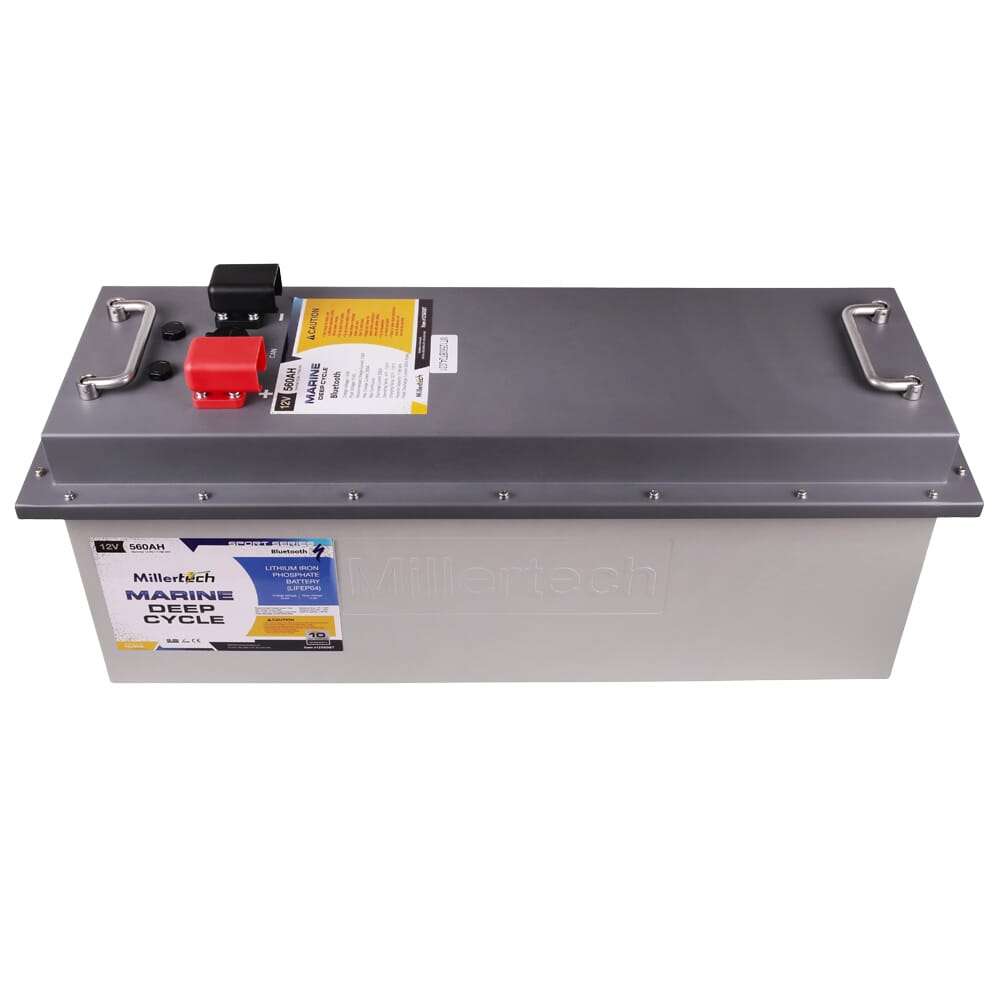

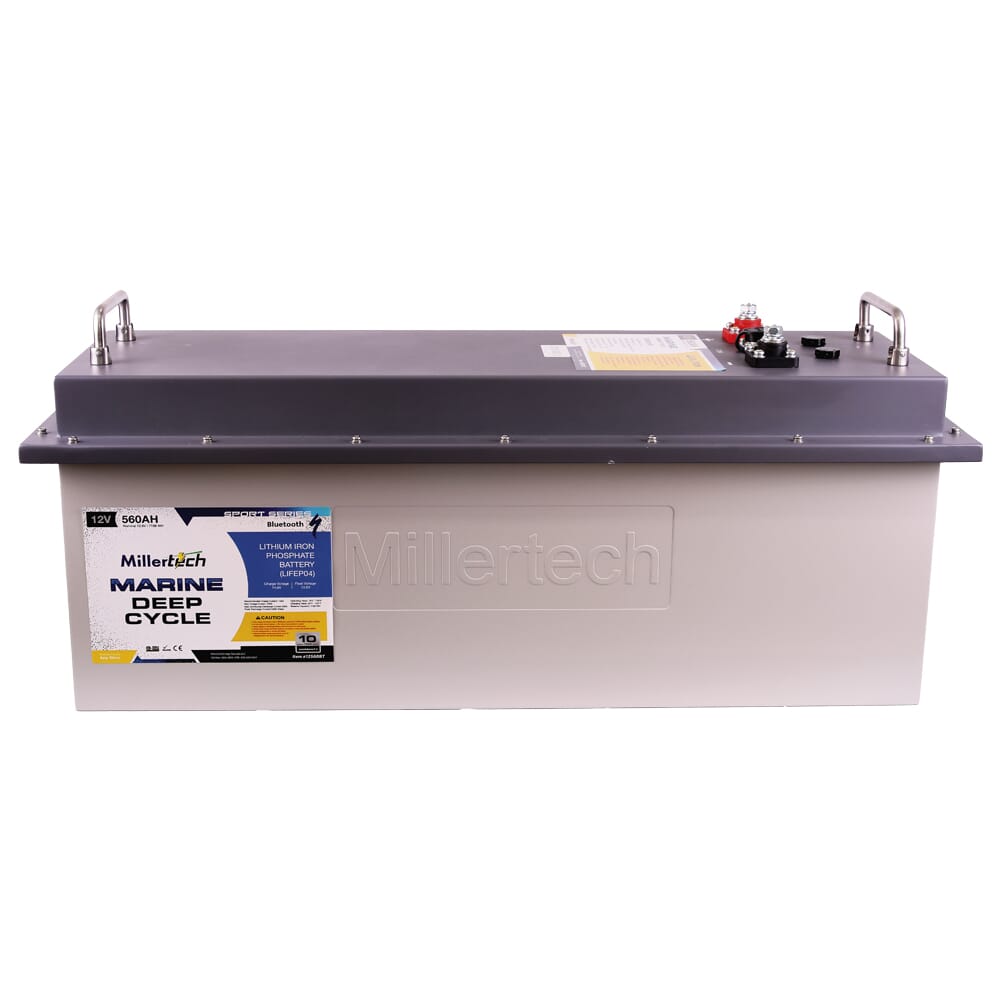

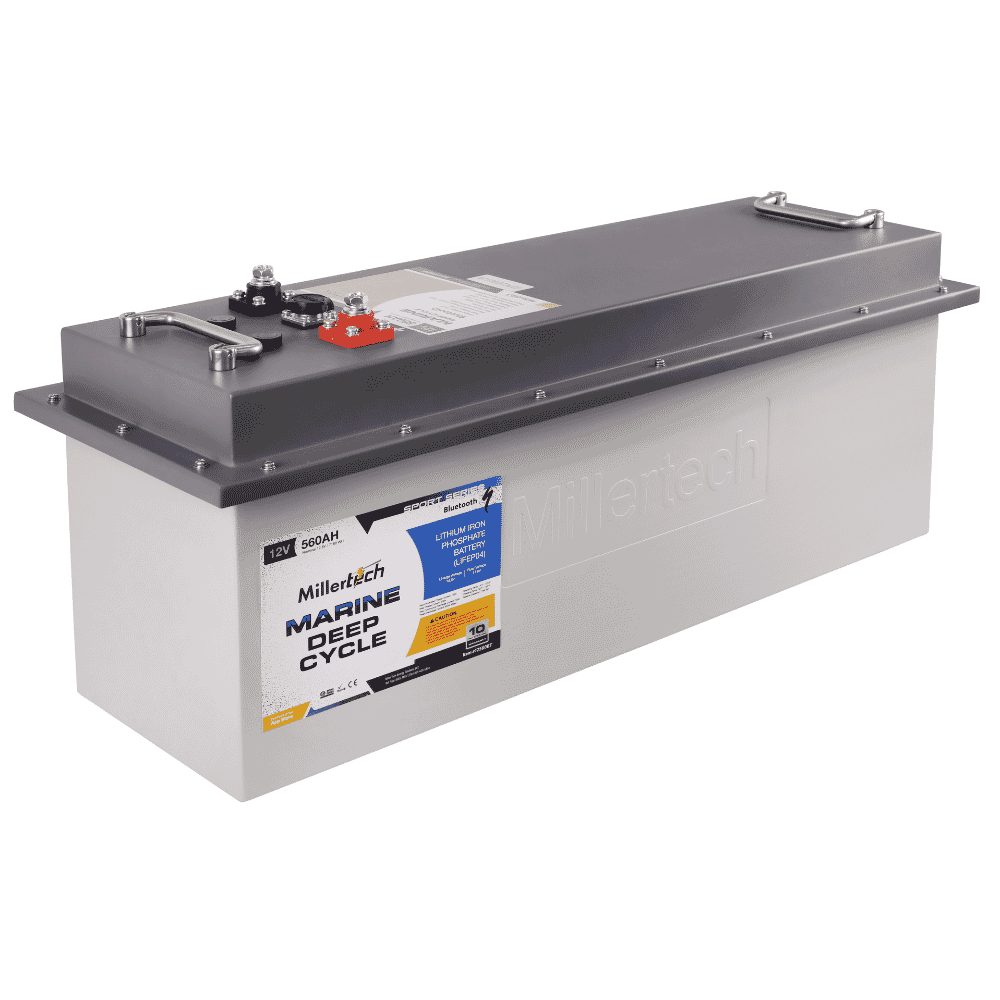

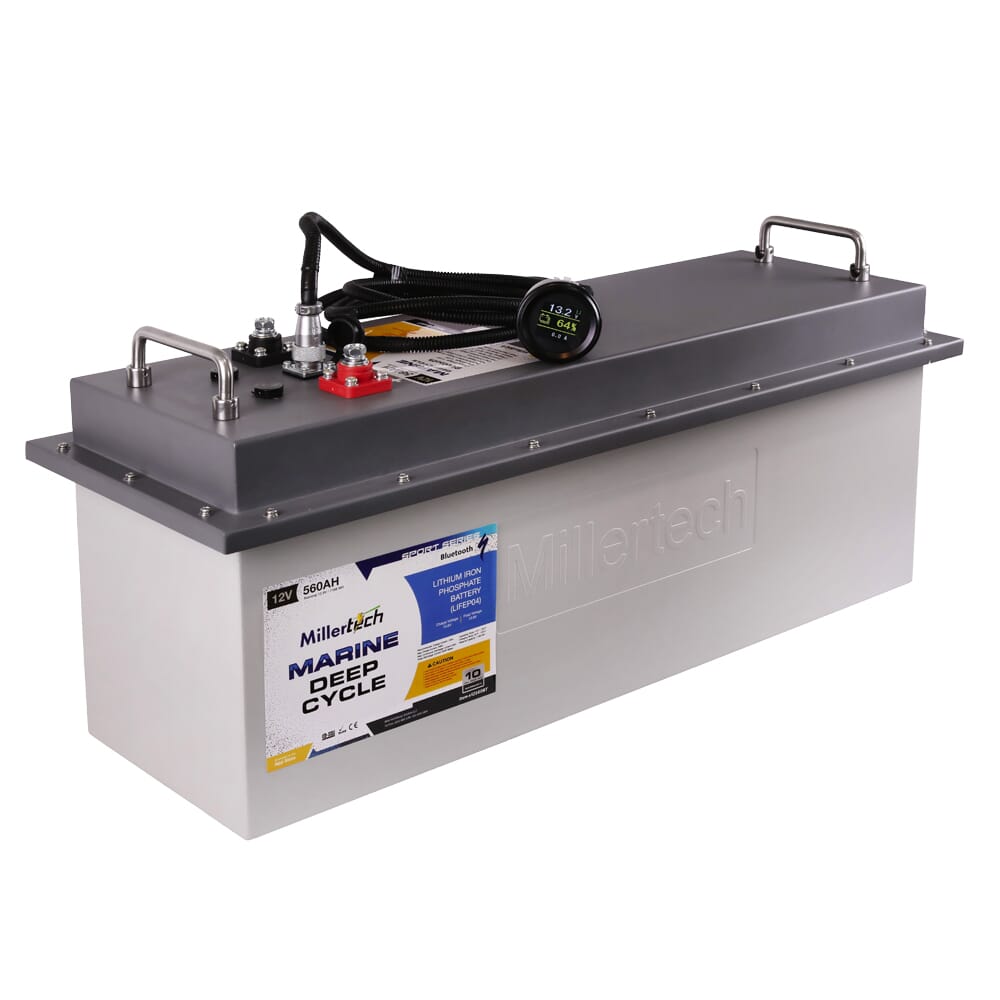

The Millertech Lithium 12V 560AH Sport Series Lithium Battery with Bluetooth delivers serious storage capacity for vessels that need power when it counts. At 560 amp hours, this battery handles house loads, extended anchoring, and multiple high-draw systems without the weight penalty of comparable lead-acid banks. Built-in Bluetooth monitoring lets you track state of charge and battery health from your phone.
SPECIFICATIONS
WARRANTY
See manufacturer warranty
WEIGHT
126 lbs

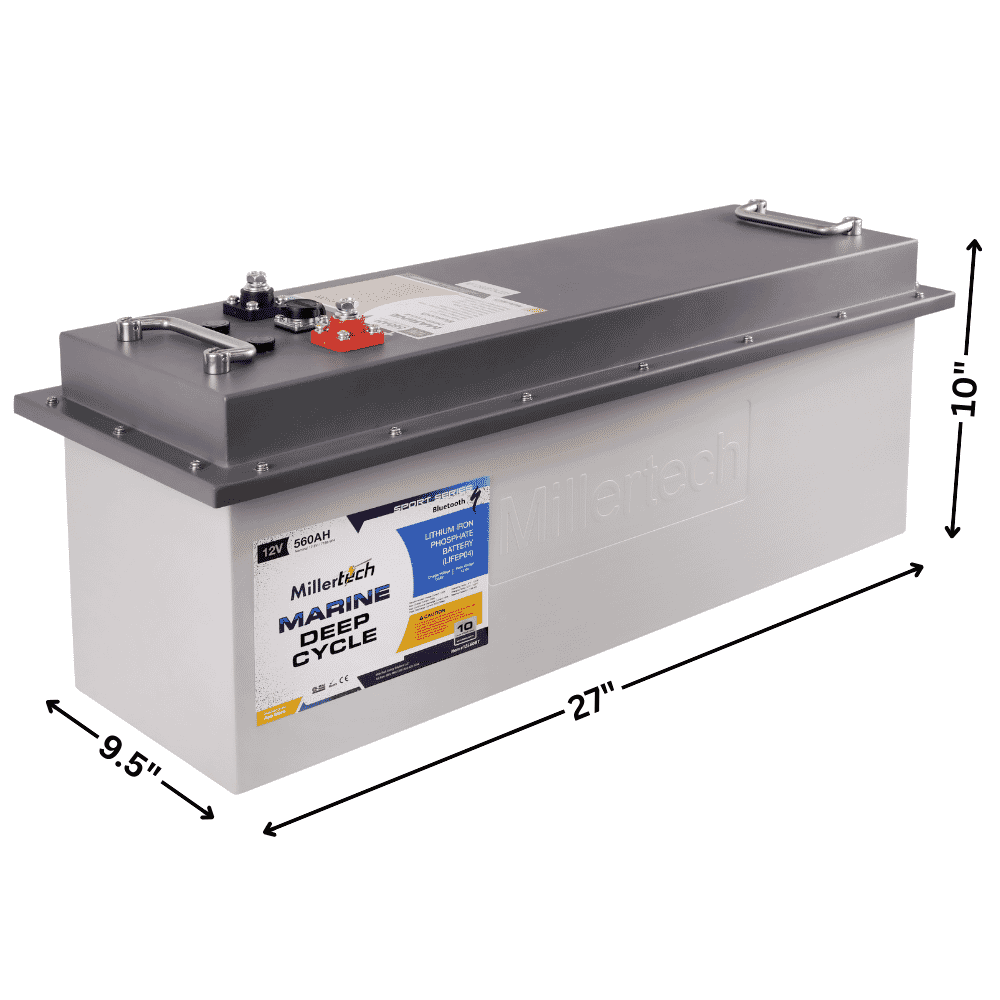

SIZE
27" x 9.5" x 10"
STORAGE CAPACITY
560AH at 12.8V nominal. LiFePO4 chemistry maintains flat voltage curve through discharge cycle, meaning usable capacity stays consistent until the battery nears empty, unlike SLA batteries that lose voltage progressively under load.
VOLTAGE
12.8V nominal
ENERGY
7168 watt hours (560AH x 12.8V)

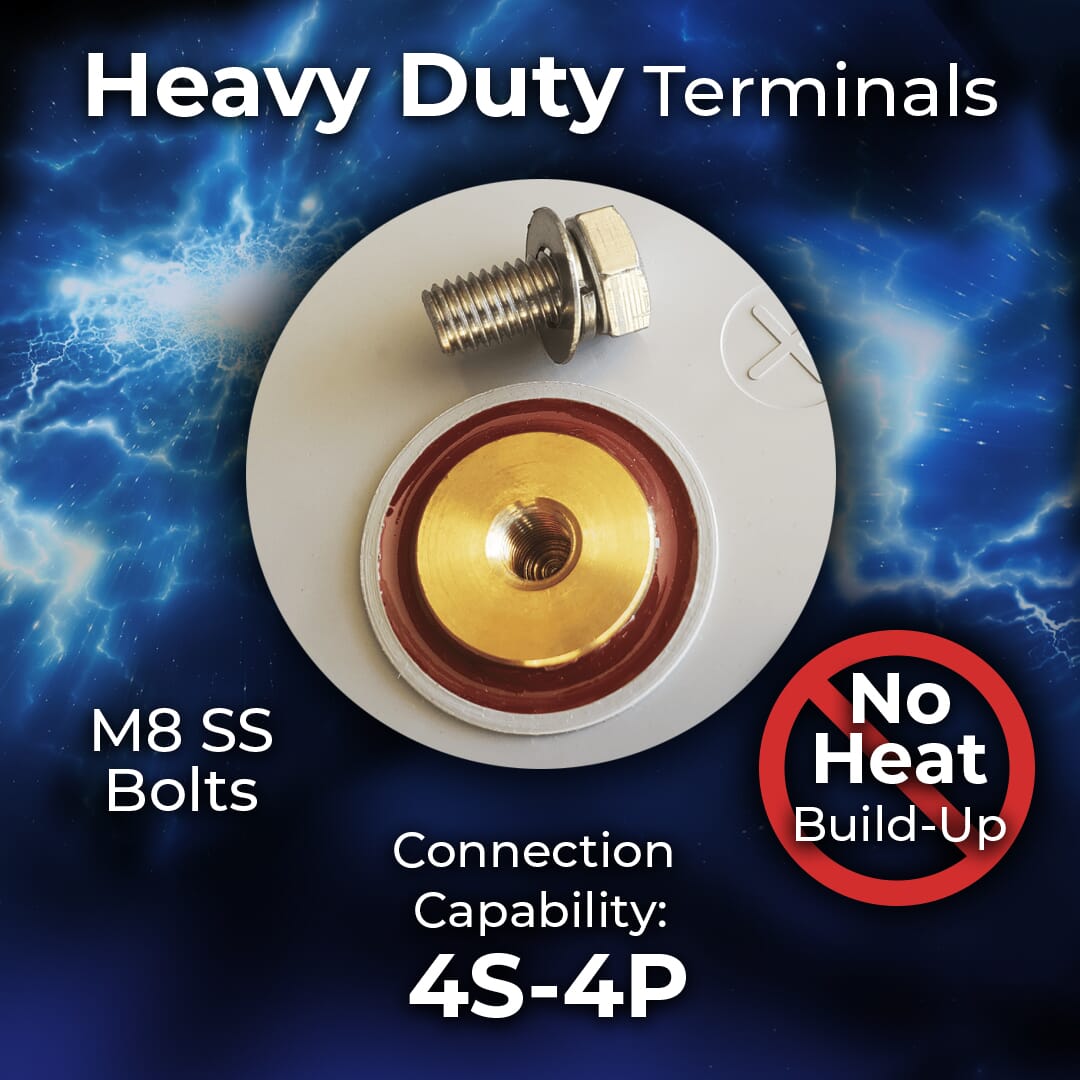

TERMINALS
M8
LIFECYCLES (BATTERY LIFESPAN)
Not specified by manufacturer
OPERATING TEMPERATURE
-4°F to 140°F
DISCHARGE
Max continuous discharge: 200A
Peak discharge: 500A for 5 seconds
Low cutoff voltage: 10V
CHARGE
Max charge current: 200A
Max charge voltage: 14.6V
Built-in cold temperature charging protection with heating element
Efficiency: 98%
INCLUDES ACTIVE BMS PROTECTION
Yes. Integrated battery management system monitors cell balance, temperature, and charge/discharge parameters.
BLUETOOTH CAPABLE
Yes. Monitor battery status, state of charge, and system health via smartphone app.
Experience the Millertech Lithium Advantage
The 12560-BT combines high-capacity energy storage with modern monitoring in a package that weighs a fraction of equivalent lead-acid banks. The integrated BMS and cold-weather charging protection handle the management work so the battery performs when you need it.
