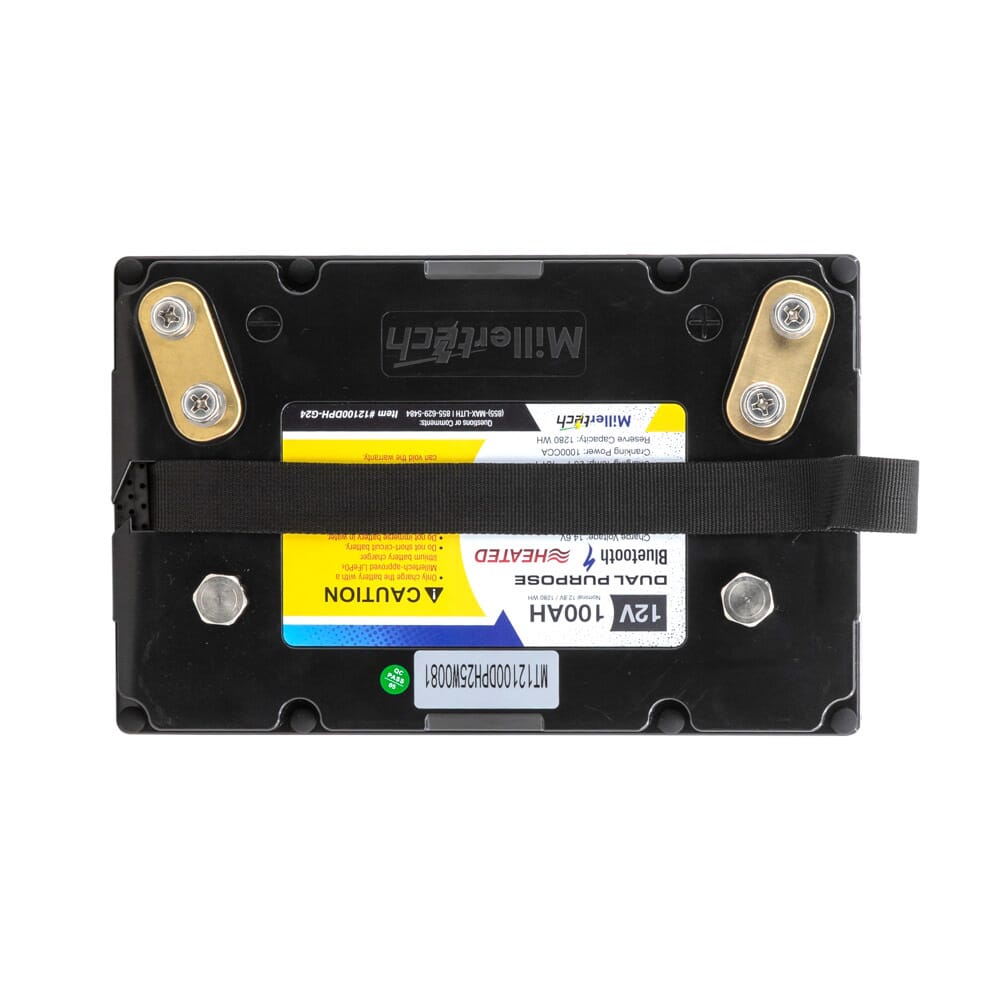

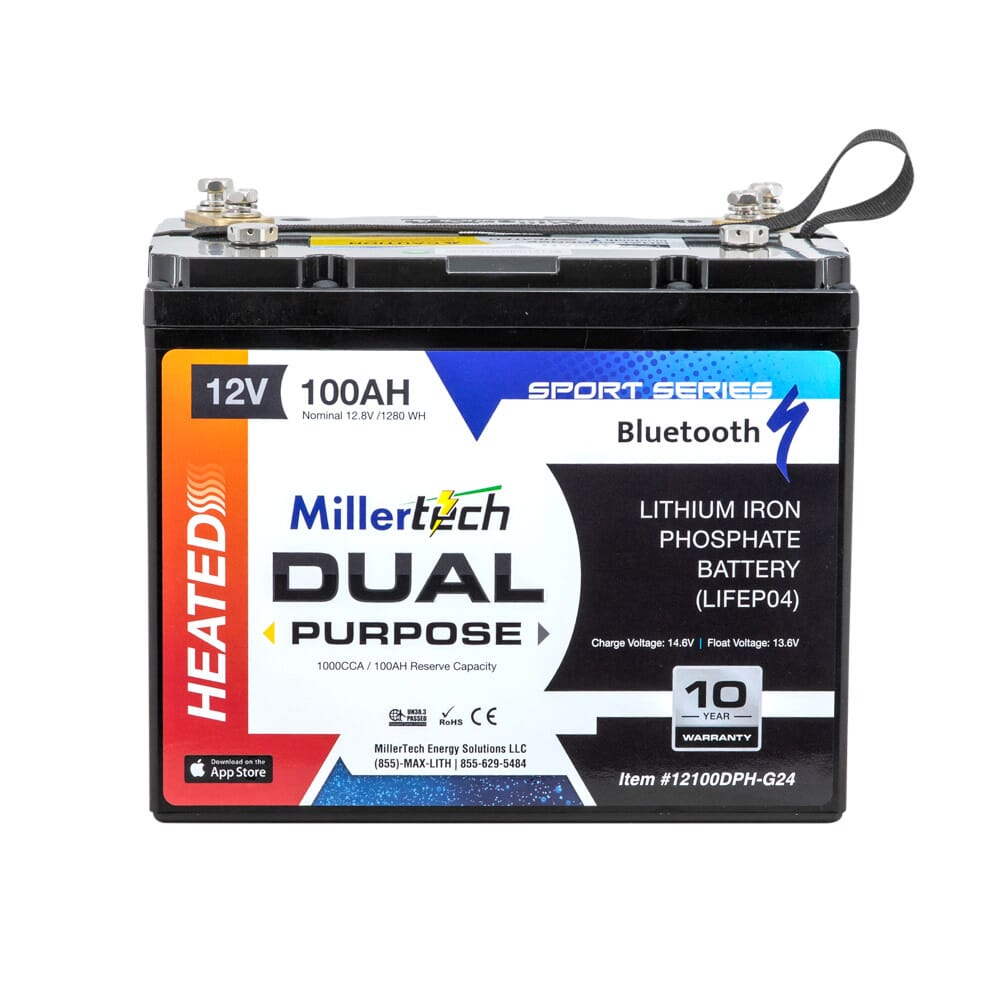

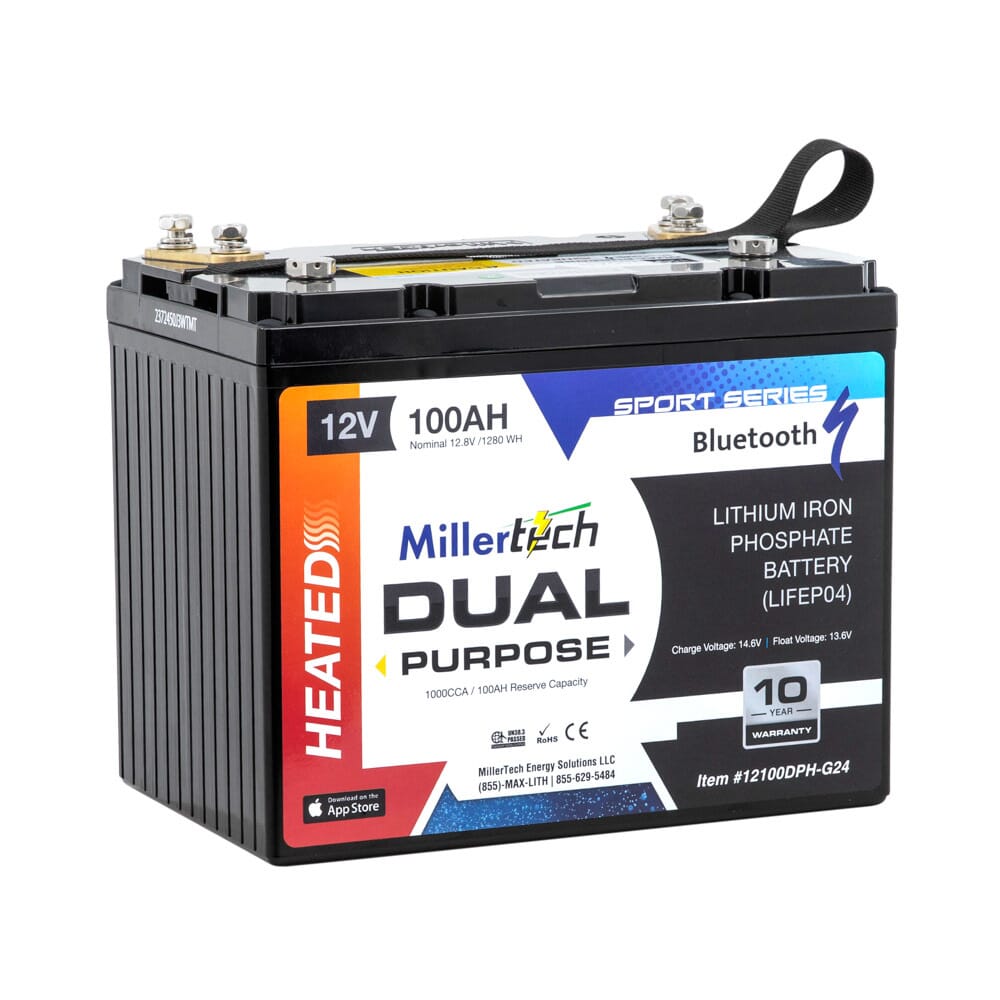

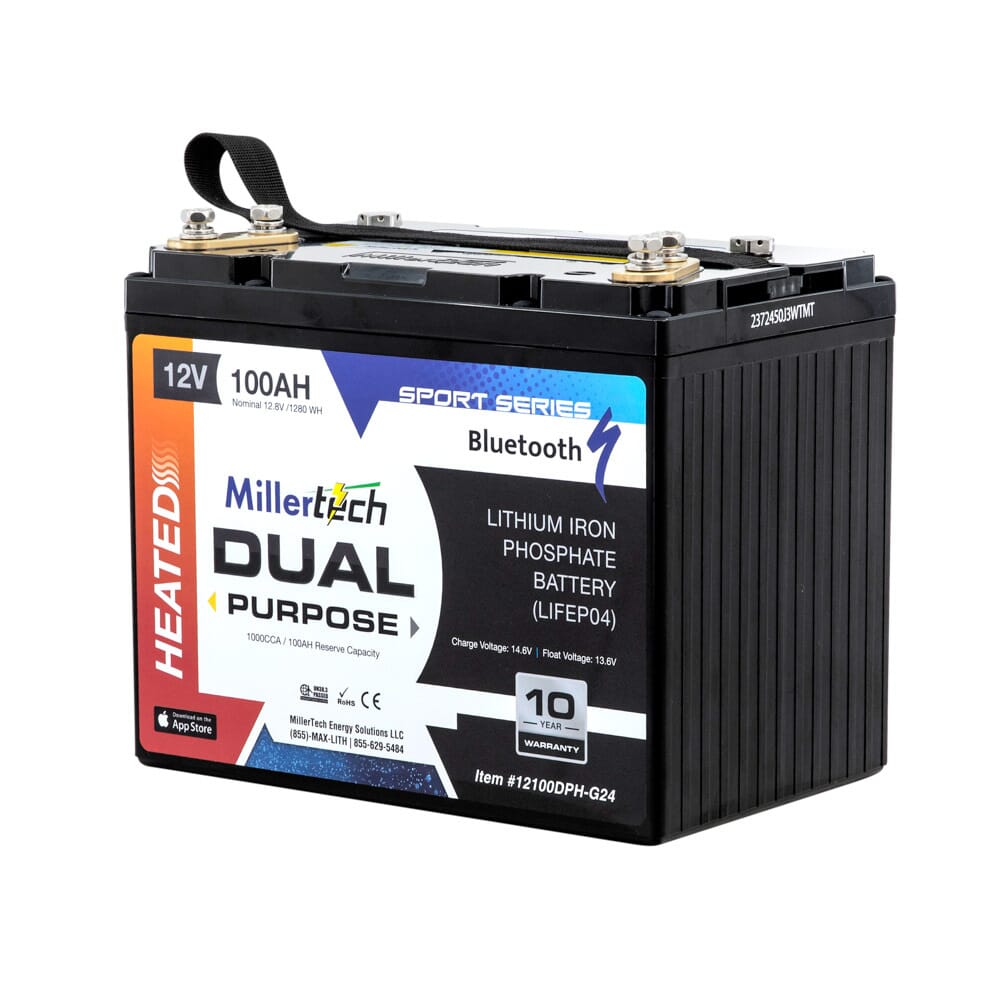

The Millertech Lithium 12V 100AH Group Size 24 Heated Dual Purpose Starting Battery delivers 1000 cold cranking amps in a package that weighs 31 pounds. Built-in heating extends the operating range down to -4°F, making it functional in conditions that shut down standard lithium batteries.
SPECIFICATIONS
WARRANTY
See manufacturer warranty
WEIGHT
31 lbs
SIZE

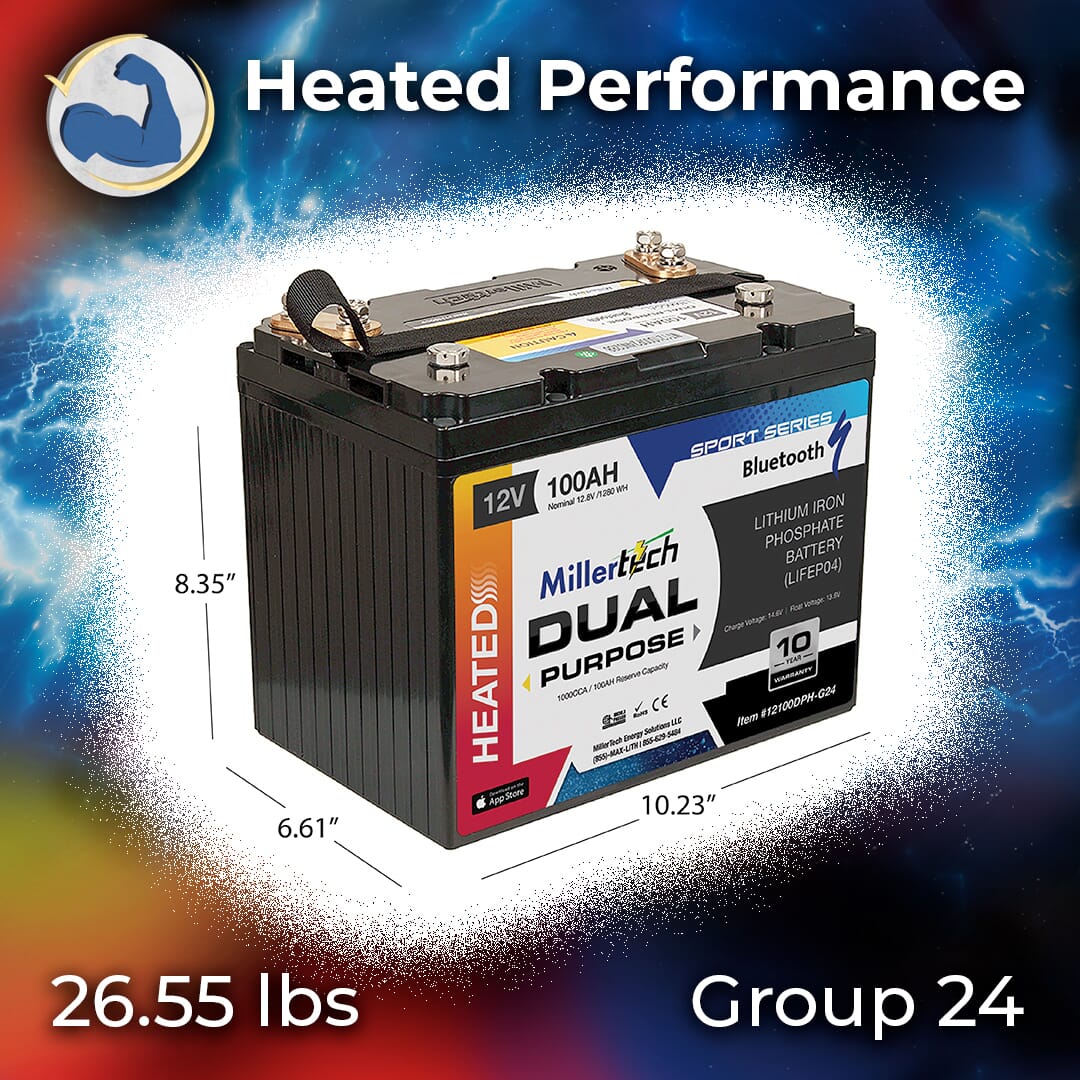

10.23" x 6.61" x 8.35"
STORAGE CAPACITY
100AH (1.28kWh). Self-discharge rate is less than 4% per month.
VOLTAGE
Nominal voltage: 12.8V
Float voltage: 13.4V
Low cutoff voltage: 10V (any cell 2.5V)
Recommended low voltage disconnect: 12.0V
ENERGY
1.28kWh
TERMINALS
Torque setting: 10 ft-lbs
LIFECYCLES (BATTERY LIFESPAN)
Not specified by manufacturer
OPERATING TEMPERATURE
Discharge temperature range: -4°F to 140°F
Charge temperature range: 25°F to 131°F
DISCHARGE
Max continuous discharge current: 100A
Discharge current (5 seconds): 300A
Cold cranking amps (CCA): 1000A
CHARGE
Max charge voltage: 14.6V
Max charge current: 100A
Recommended charge current: 25A
Recommended constant voltage duration: 15 minutes
INCLUDES ACTIVE BMS PROTECTION
Yes. Includes active BMS protection with cell balancing, low and high voltage cutoff, short circuit protection, and high temperature protection.
Bluetooth Capable
Not specified by manufacturer
Experience the Millertech Lithium Advantage
The 12100DPH-G24 combines 1000 cold cranking amps with integrated heating for reliable starts in sub-freezing conditions. Group 24 footprint fits standard battery trays without modification.
