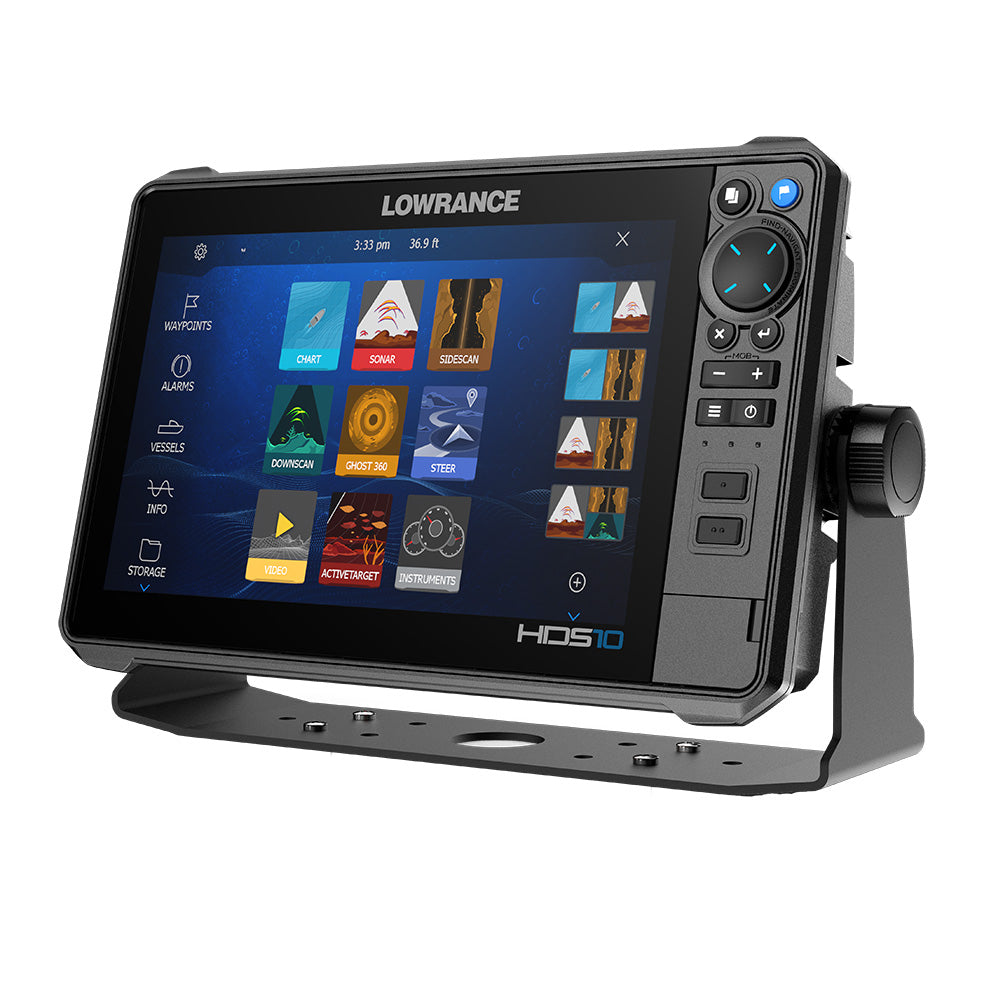

HDS PRO 10 - with Preloaded C-MAP DISCOVER OnBoard - No Transducer
See more and catch more with the HDS PRO 10 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.
In the box:
- HDS PRO fishfinder/chartplotter (10-inch display screen)
- C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
Features:
- Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
- SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
- High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
- High-resolution ActiveTarget 2 Live Sonar ready
- FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
- Real-time mapping is available with C-MAP Genesis Live.
- Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
- Large programmable keys
- Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
- NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications
Display:
- Backlight Color: Pure white LED
- Display Resolution: 1280 x 720
- Viewing Angles: 80° top/bottom, 80° left/right
Connectivity:
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
- Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
Electrical:
- Power Consumption Max: 2.9A @ 13.8VDC with Full Backlight, Sonar on
- Power Consumption Minimum: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption Typical: 2.0A @ 13VDC with Full Backlight, Sonar on
- Recommended Fuse Rating: 3A
- Supply Voltage: 12 v DC (10.8-17VDC)
Environment:
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
GPS:
- GPS Receiver Channels: 16
- Update rate: 10 Hz
MFD (Multi-Function Display):
- Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
- Internal Storage: 8.0 GB Internal
- Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail
*Sidescan Fish Reveal requires S3100 module and a compatible transducer
Specifications:
- Cartography Brand: C-Map
- Screen Size: 10"
- Touchscreen: Yes
- Transducer Included: No
- Box Dimensions: 6"H x 14"W x 16"L WT: 8 lbs
- UPC: 9420064129799
