Description
NEW COMPACT FIT: Built specifically for the new LiTime 36V 100Ah Compact OBM Smart lithium battery.
EXPECTED TO SHIP 10/1

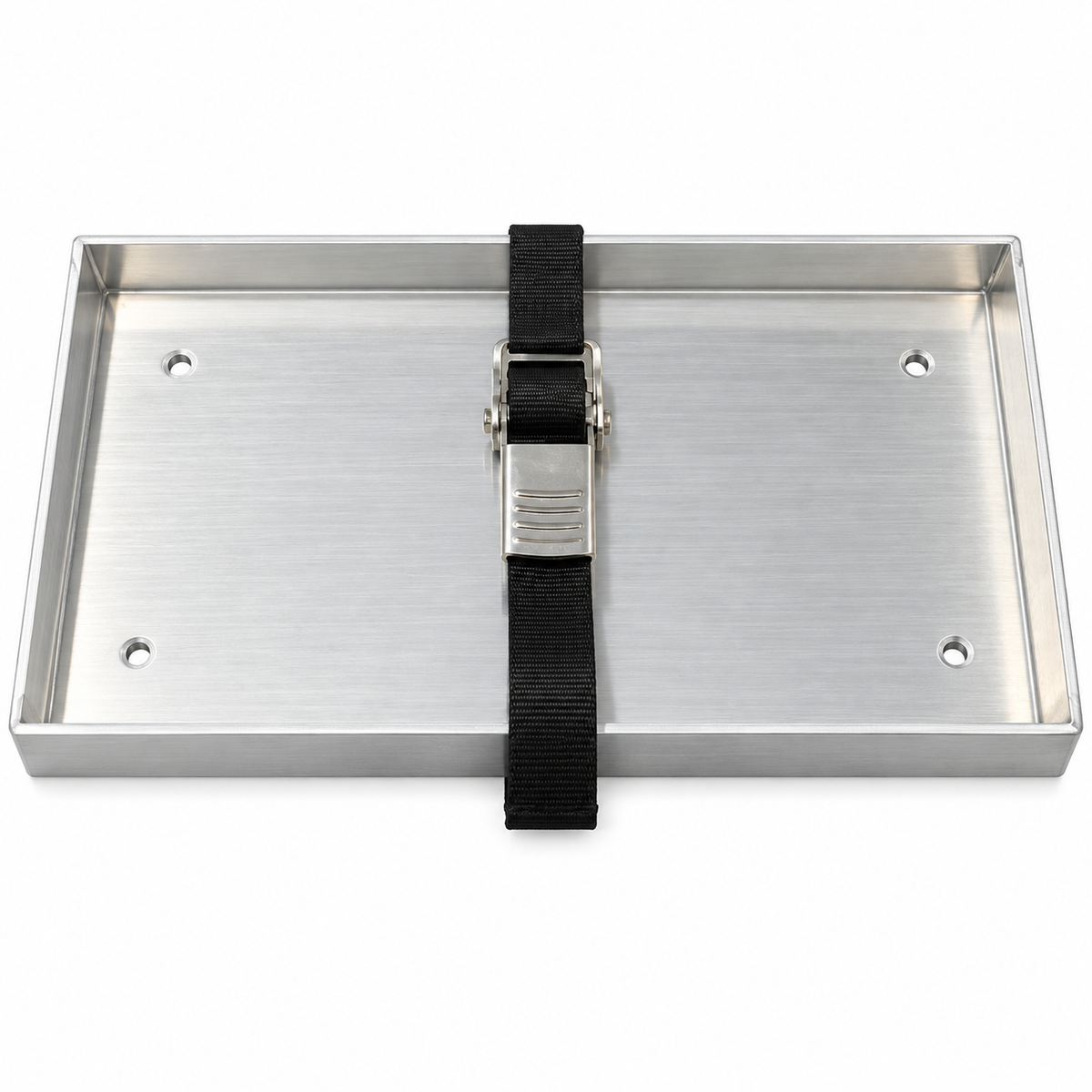

A purpose-built tray for the new compact LiTime 36V 100Ah battery
LiTime made its 36V 100Ah marine battery much smaller. We made the tray to match. This Mealey Marine battery tray is designed around the new battery's compact 15.35 x 7.99 inch footprint, giving boat owners a secure mounting solution without using an oversized Group 8D tray.
The tray is made from 1/8 inch marine-grade aluminum for a rigid, corrosion-resistant mount that can handle rough water, hard turns, and trailer travel. Two heavy-duty woven straps hold the battery securely, and stainless steel mounting hardware is included.
What battery does this tray fit?
This tray is made specifically for the LiTime 36V 100Ah Compact OBM Smart lithium battery, listed by LiTime at 15.35 x 7.99 x 10 inches. It is not the tray for LiTime's larger Group 8D-size 36V 100Ah batteries.
Why choose the compact tray?
- Purpose-built for the new compact LiTime 36V 100Ah battery footprint
- Uses less deck space than a full-size Group 8D battery tray
- Secures one 36V battery without a three-battery series setup
- Heavy-duty aluminum construction for marine use
- Includes straps and stainless steel mounting hardware
Included
- One Mealey Marine aluminum battery tray
- Two 1 x 68 inch woven polypropylene battery straps
- Six #10 x 3/4 inch stainless steel flat-head mounting screws
Specifications:
-
Outside Dimensions: 14.25" x 8.25" x 1.125"
-
Inside Dimensions: 14" x 8" x 1"
(Battery bases are slightly smaller than published specs — we guarantee a perfect fit or your money back.) -
Wall Thickness: .125"
-
Weight: 2 lbs
-
Strap: 1" x 68" woven polypropylene straps
-
Hardware: (4) #10 x 3/4" stainless steel flat head screws
Important fit note
LiTime sells more than one 36V 100Ah battery case size. Verify that your battery is the Compact OBM Smart model with the 15.35 x 7.99 inch footprint before ordering. If your battery is approximately 20.5 x 10.6 inches, use the full-size Mealey Marine LiTime 36V 100Ah Battery Tray instead.
Designed and built by Mealey Marine in Houston, Texas.
