The Ionic Three Bank Charger (model ION-12V10C-3BK) is a 110V AC onboard or bench charger designed to charge up to three 12V lithium batteries simultaneously at 10 amps per bank. It delivers a proper 14.6V charge voltage and 13.8V float for LiFePO4 chemistry, which prevents the overcharging and undercharging that shortens battery life. This charger also works with lead-acid and AGM batteries, but using an SLA or AGM charger on lithium batteries will damage the battery and void the warranty.
SPECIFICATIONS
WARRANTY
1 year warranty
CHARGER RATING
Input: 110V/120VAC at 7.5A
Output Power: 584W
Charge Voltage: 14.6V
Float Voltage: 13.8V
Current: 10A per channel (3 independent banks)
TERMINAL CONNECTIONS

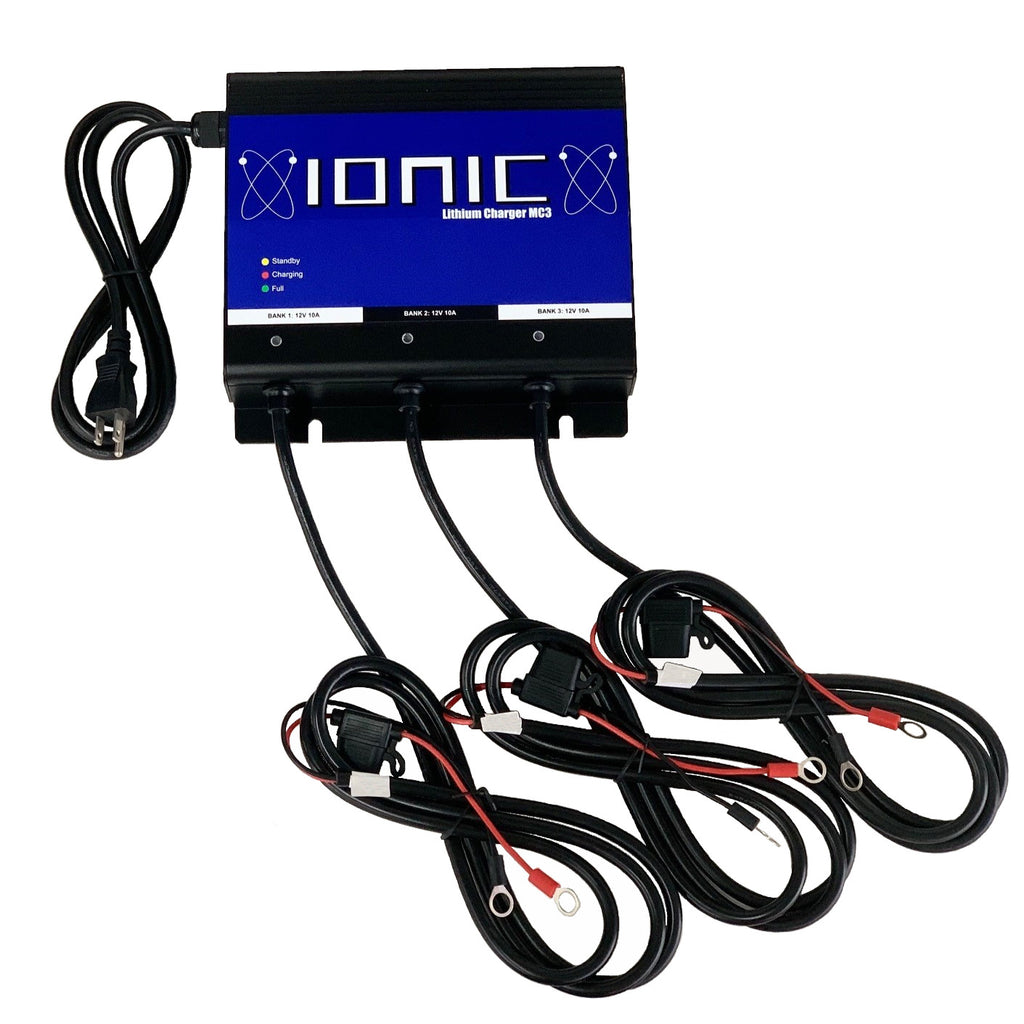

Three independent banks with 5-foot cables. Each bank charges at constant current (10A) to 14.6V, then floats at 13.8V to protect the battery.
SMART BMS COMMUNICATION
Bluetooth monitoring via LithiumHub smartphone app when charging Ionic Lithium (LiFePO4) batteries. Displays real-time charge status and battery data. Bluetooth function only works with lithium batteries.
COMPATIBILITY
Charges 12V lithium batteries (LiFePO4 chemistry). Can be used for 36V, 24V, or 12V systems when batteries are wired in series. Also compatible with lead-acid and AGM batteries. Do not use lead-acid or AGM chargers on lithium batteries. The charge profiles are different and using the wrong charger will damage lithium cells.
Experience the Ionic Lithium Advantage

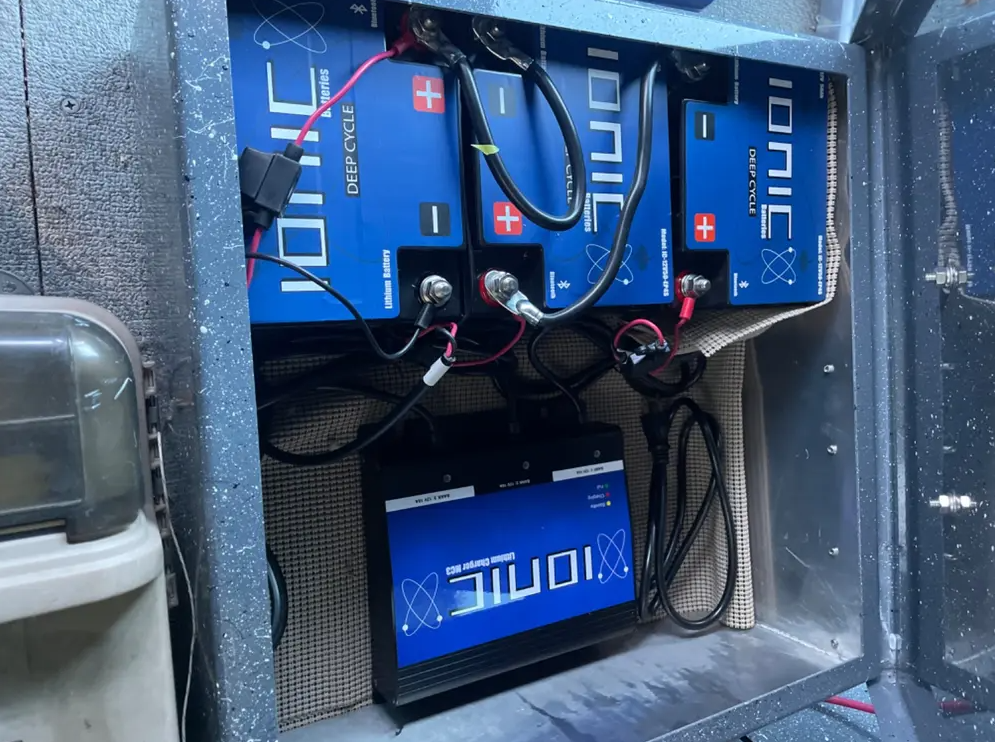

The Ionic Three Bank Charger handles multiple batteries in one compact, 10-pound unit (12" x 9.5" x 2"), making it practical for onboard mounting or garage bench use.
