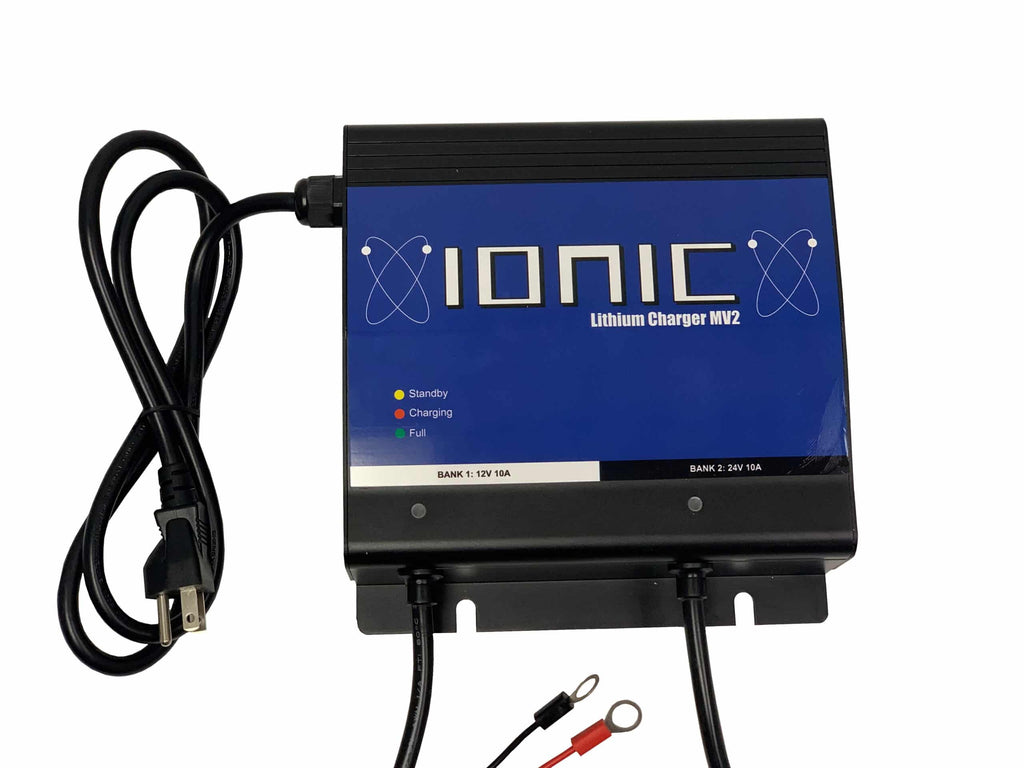

The Ionic Multi Voltage Charger (model ION-12V24C-MV) handles an unusual setup: one 24V battery bank and one 12V bank charging simultaneously at 10A each. This is an onboard charger for boats or RVs running mixed voltage systems. Lithium batteries need chargers designed for their chemistry. Using a lead-acid or AGM charger on a LiFePO4 battery will damage the battery because the voltage profiles don't match.
SPECIFICATIONS
WARRANTY
See manufacturer warranty
CHARGER RATING
Input: 110V/120VAC at 7.5A
Output: Two independent banks
Bank 1: 24V at 10A
Bank 2: 12V at 10A
TERMINAL CONNECTIONS
Each bank has a 5-foot cable with ring terminals. Polarity marking on connections. Status lights indicate charge state on each bank independently.
COMPATIBILITY
Works with 12V and 24V lithium (LiFePO4), AGM, and lead-acid batteries. Each bank detects battery type and adjusts charge profile accordingly. You can charge a lithium battery on one bank and a lead-acid battery on the other at the same time. Do not use chargers designed for SLA or AGM chemistry on lithium batteries. The voltage curves are different and using the wrong charger will damage your lithium battery.
PHYSICAL DIMENSIONS
12 inches x 9.5 inches x 2 inches
Weight: 11 lbs
Experience the Ionic Lithium Advantage
The Ionic Multi Voltage Charger solves the space and weight problem when you need to charge both a 12V trolling motor bank and a 24V main bank from one unit. One charger, two independent charge profiles, 11 pounds total.
