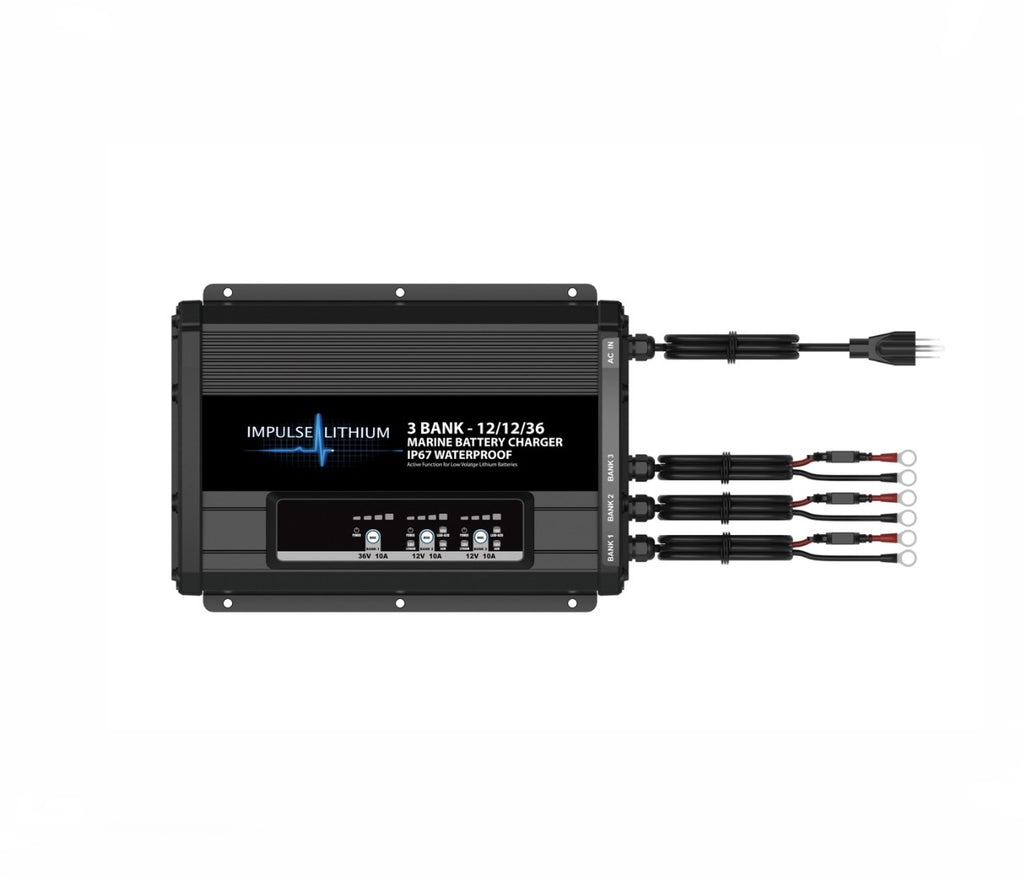

Impulse Lithium 3 Bank – 12/12/36 AC Charger

The Impulse Lithium 3 Bank 12/12/36 AC Charger is a waterproof onboard charging solution designed for mixed voltage lithium systems. Two banks charge 12-volt systems at 10 amps each (with selectable profiles for lead acid, AGM, or lithium), and the third bank charges 36-volt lithium trolling motor systems at 10 amps. This charger is built for boats running both house electronics and multi-battery trolling setups where you need independent charging control for each bank.

SPECIFICATIONS

WARRANTY
See manufacturer warranty

CHARGER RATING
Input: AC shore power (voltage and frequency not specified by manufacturer)
Output: (2) 12-volt banks at 10 amps each, (1) 36-volt bank at 10 amps

BANK CONFIGURATION
Bank 1: 12 volts, 10 amps, selectable output for lead acid, AGM, or lithium
Bank 2: 12 volts, 10 amps, selectable output for lead acid, AGM, or lithium
Bank 3: 36 volts, 10 amps, lithium only

TERMINAL CONNECTIONS
Not specified by manufacturer

WATERPROOF RATING
Waterproof rated for onboard marine installation. Specific IP rating not provided by manufacturer.

DIMENSIONS
14.5 inches × 9.75 inches × 3.75 inches

COMPATIBILITY
Banks 1 and 2 work with 12-volt lead acid, AGM, or lithium batteries. Bank 3 is lithium-only for 36-volt trolling motor systems. Do not use lead acid or AGM charge profiles on lithium batteries. Using the wrong profile can damage the battery and void your warranty.

Experience the Impulse Lithium Advantage

The Impulse Lithium 3 Bank 12/12/36 gives you independent control over house and trolling systems without running separate chargers. Waterproof construction and selectable profiles mean one less installation headache when you wire your boat correctly the first time.
