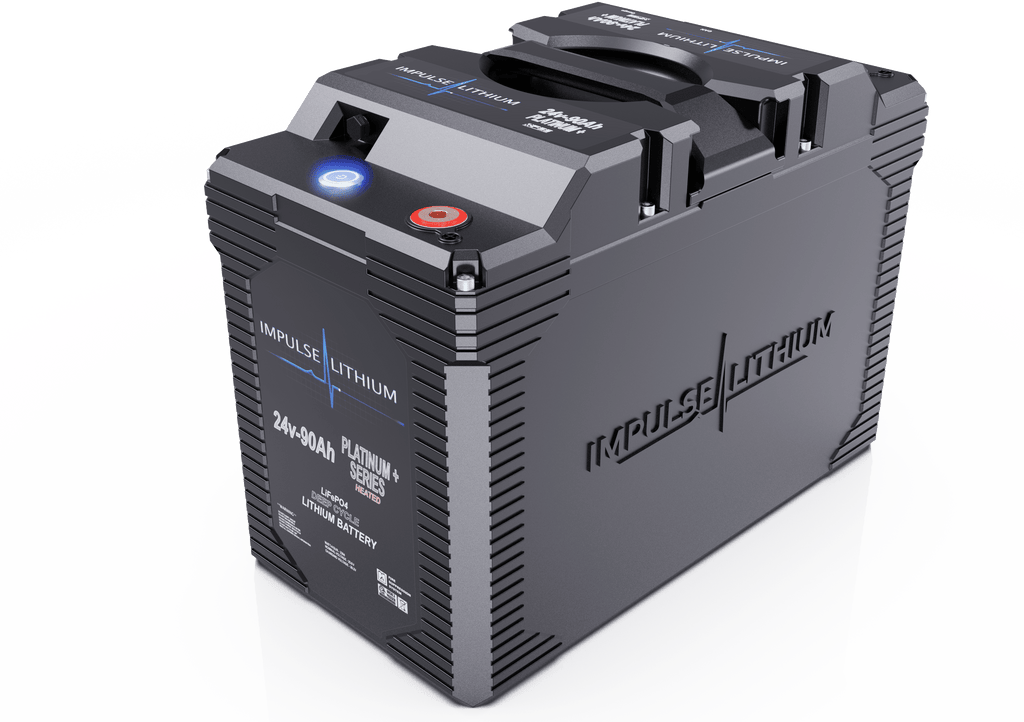

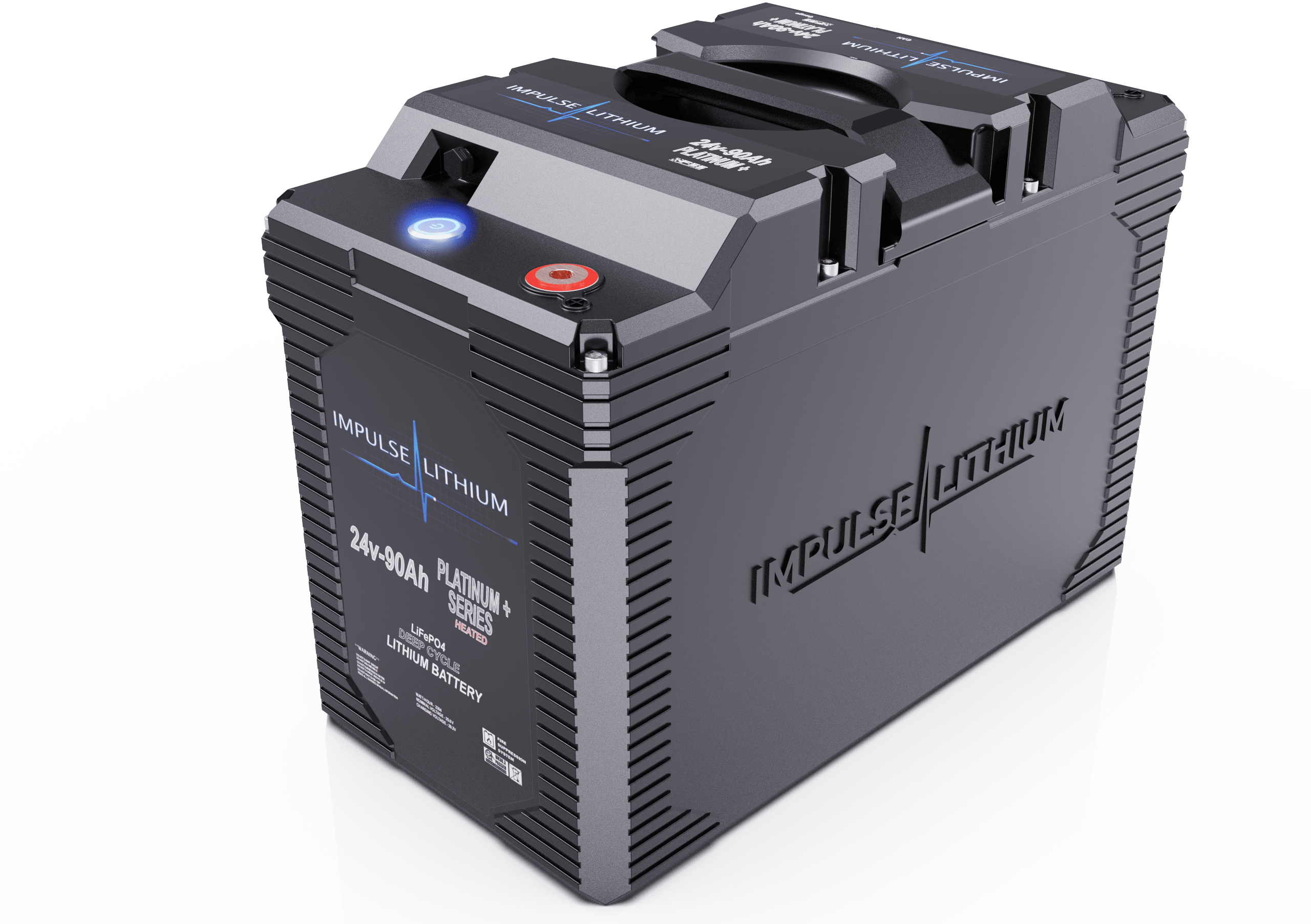

The Impulse Lithium 24V 90Ah Platinum+ battery solves a specific problem for tournament anglers and smaller boat owners: running a 24V trolling motor without the space or weight penalty of multiple batteries. This single-unit 24V system includes Bluetooth monitoring, internal heating, fire suppression, and the ability to parallel up to four batteries when you need more capacity.
SPECIFICATIONS
WARRANTY
See manufacturer warranty
WEIGHT
30 lbs
SIZE
Group 31 case
STORAGE CAPACITY
90Ah at 25.6V nominal. LiFePO4 chemistry delivers a flat voltage curve, meaning the usable capacity remains consistent until the battery is nearly empty, unlike sealed lead-acid batteries that lose performance as they discharge.
VOLTAGE
25.6V nominal
ENERGY
2304 Wh
TERMINALS
Battery and hold down tray included
LIFECYCLES (BATTERY LIFESPAN)
Not specified by manufacturer
OPERATING TEMPERATURE
Includes low temperature protection with internal heating system
DISCHARGE
60A continuous discharge current
90A max discharge current
180A peak surge current (under 5 seconds)
CHARGE
30A charge current
INCLUDES ACTIVE BMS PROTECTION
Yes. Includes active BMS protection with cell balancing, low and high voltage cutoff, short circuit protection, and high temperature protection. Additionally includes over current protection, fire suppression system, CAN communication, and display port for optional data gauge.
Bluetooth Capable
Yes. Bluetooth monitoring included for real-time state of charge and battery parameters
Experience the Impulse Lithium Advantage
The Impulse Lithium 24V 90Ah Platinum+ battery delivers 2304 Wh in a 30-pound Group 31 package, with the option to parallel up to four units when your fishing demands more runtime.
