PRE-SALE: Available to order now.
Stop fighting a piece of PVC pipe.
If you are searching for a Vault cap installation tool, a UFP Vault install tool, or a better way to drive Dexter/UFP Vault caps without starting them crooked, this is the tool we built for the job.
Dexter ships its Vault service kit with a plastic pipe section and calls it a tool. Anybody who has used one knows what happens next. The cap starts crooked, will not straighten out, and you end up chasing it around the hub with a block of wood. Sometimes the PVC splits. Sometimes a $40 cap gets ruined.
We got tired of it and machined our own.

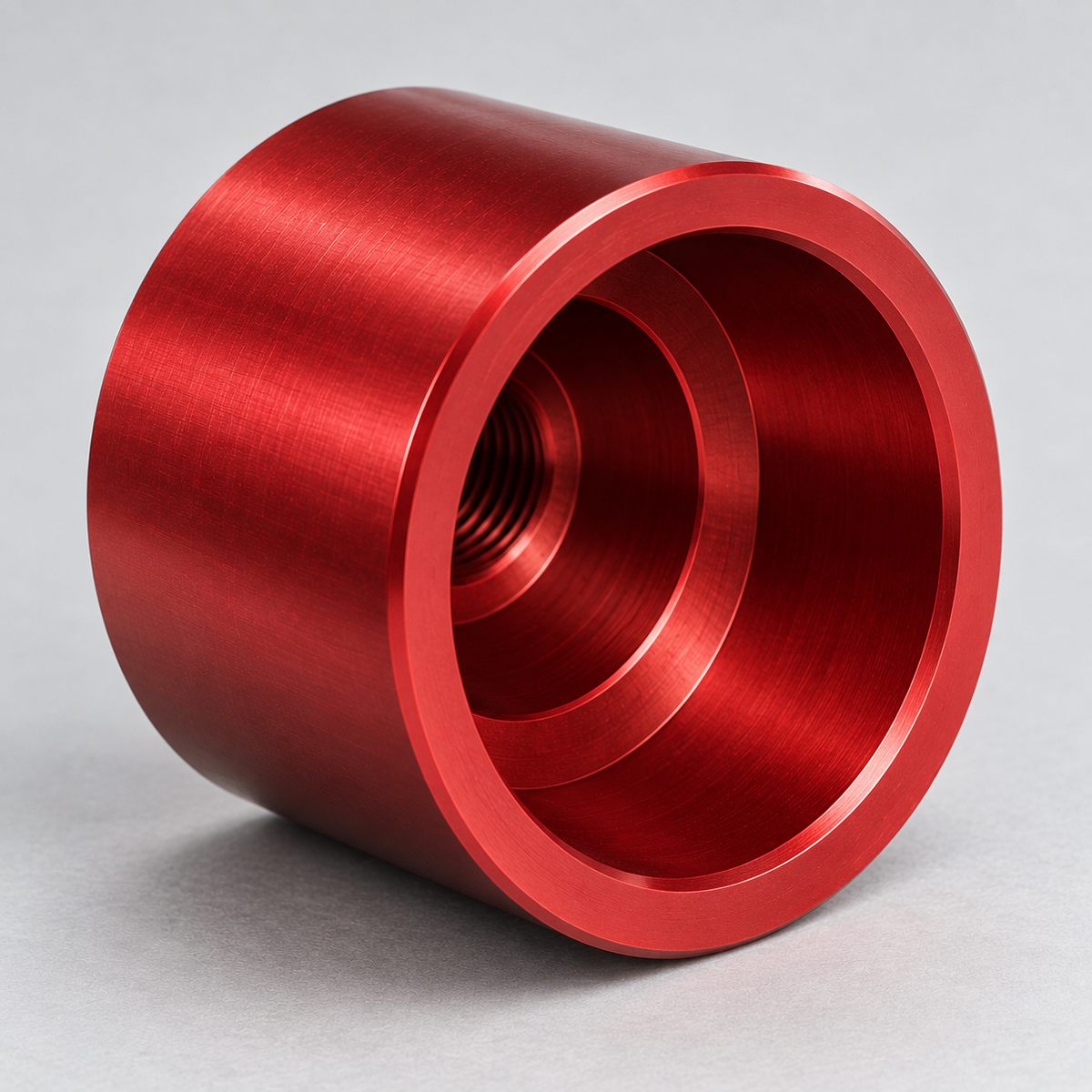

The Mealey Marine Trailer Grease Cap Driver is a solid billet aluminum cup that holds the cap square to the hub before you ever swing a hammer. The cap physically cannot cock because the tool will not let it. A recessed pocket gives the pressurized diaphragm room to bulge so nothing touches it, and the aluminum is softer than the stainless cap. It drives clean without marring the flange.
Dexter/UFP Vault Cap Installation Tool Sizes
1.980
Fits Dexter/UFP Vault caps on 2.5K, 3.2K, 3.5K, and 3.7K hubs. It is the billet aluminum alternative for the Dexter/UFP 071-788-00 Vault installation tool included with the K71-030-00 service kit. It also drives Dexter E-Z Lube 1.99, Bearing Buddy, Posi-Lube, Karavan, Knott, and most 1.98 to 1.99 caps. This is the size most bass boat, bay boat, and single-axle trailers need.
2.328
Fits Dexter/UFP Vault caps on 4.2K and 5.2K hubs. For the 2.328 cap application, it is the billet aluminum alternative to the Dexter/UFP 071-787-00 Vault installation tool included with the K71-029-00 service kit. This is the size for heavier tandem rigs and bigger offshore trailers.
Both
Covers both 1.980 and 2.328 Vault hub applications. If you are a shop working on mixed trailers all week, get both and quit guessing.
Dexter Part Number Cross-Reference
| Mealey Driver Size | Dexter/UFP Tool Reference | Common Vault Service Kit | Hub Application |
|---|---|---|---|
| 1.980 | 071-788-00 | K71-030-00 | 2.5K, 3.2K, 3.5K, and compatible 3.7K |
| 2.328 | 071-787-00* | K71-029-00 | 4.2K and 5.2K |
*Dexter also references 071-787-00 in service kits for other cap diameters. This Mealey Marine driver is specifically sized for the 2.328 cap application.
Key Features
- Cap Goes On Square: The cup design holds the cap true to the hub with no cocking, walking, or restarts.

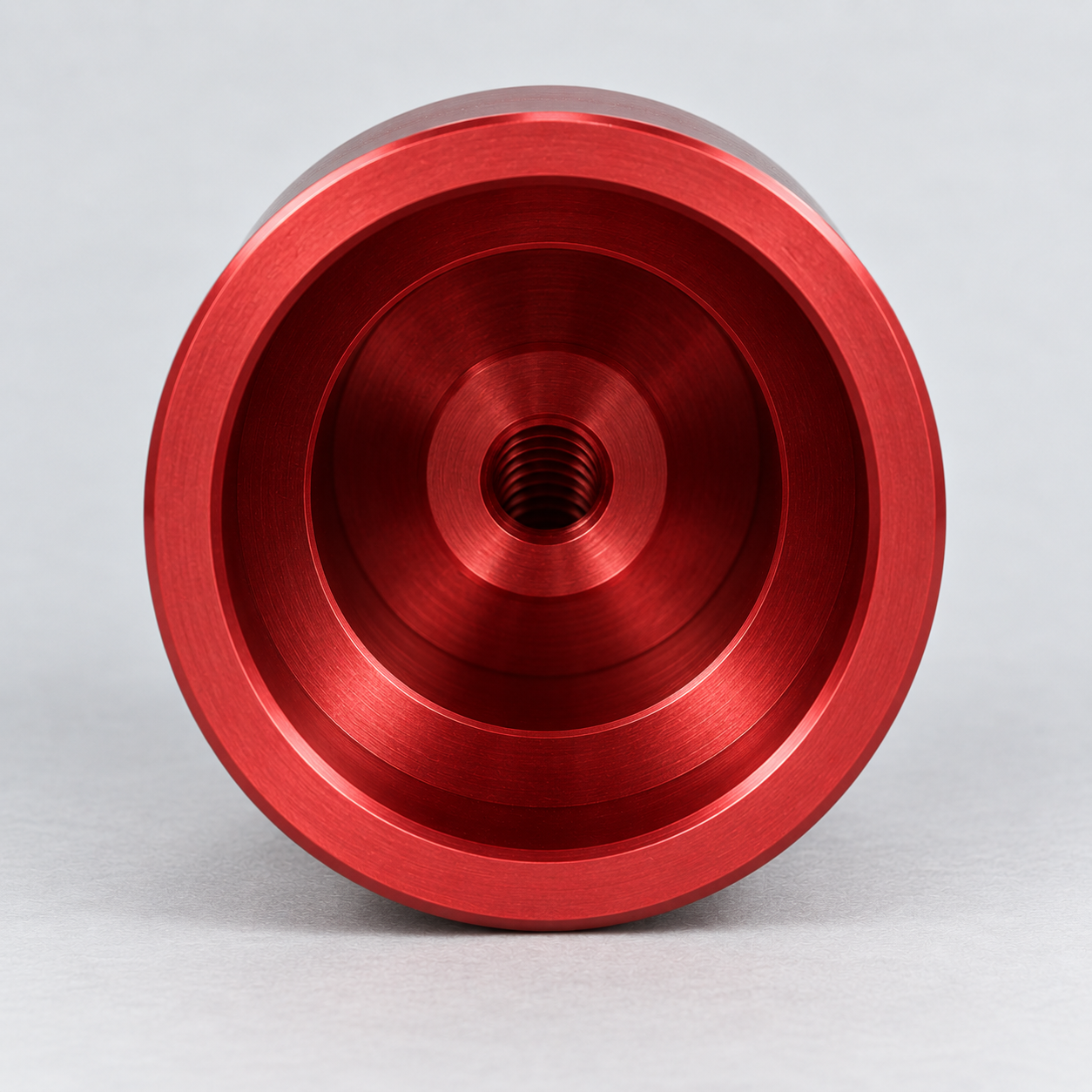

- Diaphragm Relief: The recessed pocket clears the pressurized center. The tool only touches the flange.
- Will Not Mar Your Caps: 6061 aluminum is softer than the stainless cap by design.
- Use Any Handle: The 3/4-10 threaded boss takes any standard driver handle, bolt, or all-thread you already own.
- Solid Billet Build: Machined from 6061-T6 bar. The 1.980 driver measures 2.500" x 1.625". The 2.328 driver measures 2.750" x 1.625".
- Red Anodized Finish: Type II anodize adds corrosion resistance and makes the tool easy to find in the truck.
- Lifetime Warranty: No moving parts and nothing to wear out. If you break it, we will replace it.
- Made in the USA: Machined in Houston, Texas.
Vault Cap Driver FAQ
What tool do I need to install a Dexter/UFP Vault cap?
Match the driver to the cap outside diameter. Use the 1.980 driver for 1.98 to 1.99 caps and the 2.328 driver for 2.328 Vault caps. If you service mixed boat trailers, choose Both.
What replaces the Dexter/UFP 071-788-00 installation tool?
The Mealey Marine 1.980 driver covers the same 1.980 Vault cap application associated with Dexter/UFP tool 071-788-00 and service kit K71-030-00, but uses a rigid billet aluminum cup instead of plastic pipe.
What replaces the Dexter/UFP 071-787-00 installation tool for a 2.328 cap?
The Mealey Marine 2.328 driver covers the 2.328 Vault cap application associated with Dexter/UFP tool 071-787-00 and service kit K71-029-00. It is not intended for the larger 2.441 or 2.717 cap applications that may also reference 071-787-00.
Will the driver touch the pressurized Vault diaphragm?
No. The recessed pocket clears the pressurized center so the driver contacts only the cap flange.
Which size fits axles rated 3.7K and under?
Use the 1.980 driver. You can also pull the cap and measure its outside diameter before ordering.
What handle does the tool use?
The threaded boss is 3/4-10 and accepts a standard driver handle, bolt, or all-thread.
Whether you are a shop turning hubs every week or handling your own trailer once a season, this is the tool Dexter should have put in the box.
Pre-sale orders ship from Houston, Texas.
Made in America. Built to work.
Mealey Marine independently manufactures this product and is not affiliated with or endorsed by Dexter or UFP. Dexter, UFP, Vault, E-Z Lube, Bearing Buddy, Posi-Lube, Karavan, and Knott are trademarks of their respective owners. Part numbers are provided only as application cross-references.
