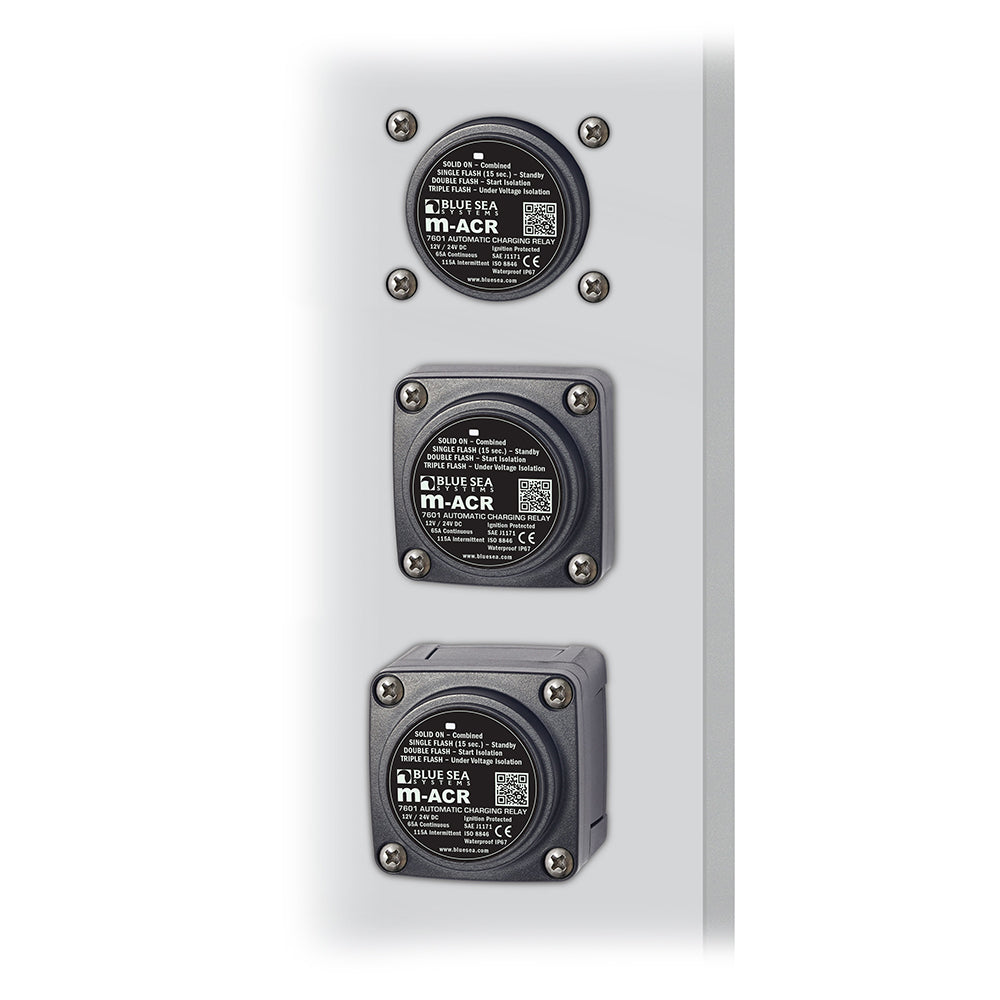

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp [7601]

filler

Price:
$85.99

Description

7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Features:

  • 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
  • Compact case design allows surface and panel mounting
  • Senses charging on two battery banks
  • Snap-on cover insulates terminal connections
  • LED indicates ACR status
  • 1/4" x .032" male quick connect terminal for ground
  • 5/8" (16 mm) stud length to accept multiple cable terminals
  • 12V DC voltage input


Specifications:
  • Intermittent Rating: 5 min.: 115A
  • Terminal Stud Size: 1/4"-20
  • Relay Contact Position: Open (30 sec.): 12.75V DC
  • Continuous Rating: 65A
  • Maximum Torque: 75 in-lb (8.5 Nm)
  • Relay Contact Position - Open High: 16.0V DC
  • Amperage Operating Current: 175mA (Combine)
  • Relay Contact Position: Combine (30 sec.): 13.0V DC
  • Under Voltage Lockout: 9.5V DC
  • Amperage Operating Current: 15mA (Open)
  • Relay Contact Position: Combine (2 min.): 13.6V DC
  • Maximum Cable Size: 1/0 AWG
  • Relay Contact Position: Open (10 sec.): 12.35V DC

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Continuous Amperage: 65a
  • Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
  • UPC: 632085076016

Owner's Manual (pdf)
