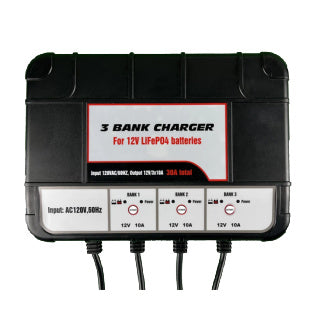

This 3-bank onboard charger is perfect for LiFePO4 batteries in a demanding environment. Charge 3 batteries at once with a combined 30 amps, 10 amps per battery, to ensure a fast and efficient charge. This onboard charger comes with an IP67 waterproof rating, meaning it is perfect for using in boats or other outdoor applications. Built into this charger is also a BMS wake-up function for batteries that reach the low voltage cut off protection mode.
FOR 12 VOLT LITHIUM BATTERIES
Standard lead acid batteries operate at a maximum voltage of about 12.7 volts. As a result, many standard chargers will only charge to this voltage. Our lithium batteries operate at a maximum voltage of 14.4 volts. This means standard chargers will not charge lithium batteries to full capacity. Depending on the lead acid charger, it may only charge to 60% to 80% of the batteries fully capacity.
INPUT 110-120VAC
Charge Voltage 14.4V
Current 10A/channel
Install the M8 ring terminals using the bolts on your terminals. Bolt black to your black terminal. Red to your red terminal. Do not short circuit.
Charger will restart or "wake up" a Lithium BMS that has turned off a battery due to short circuit or excessive amp draw. Simply connect the charger to the battery to initiate a restart.
