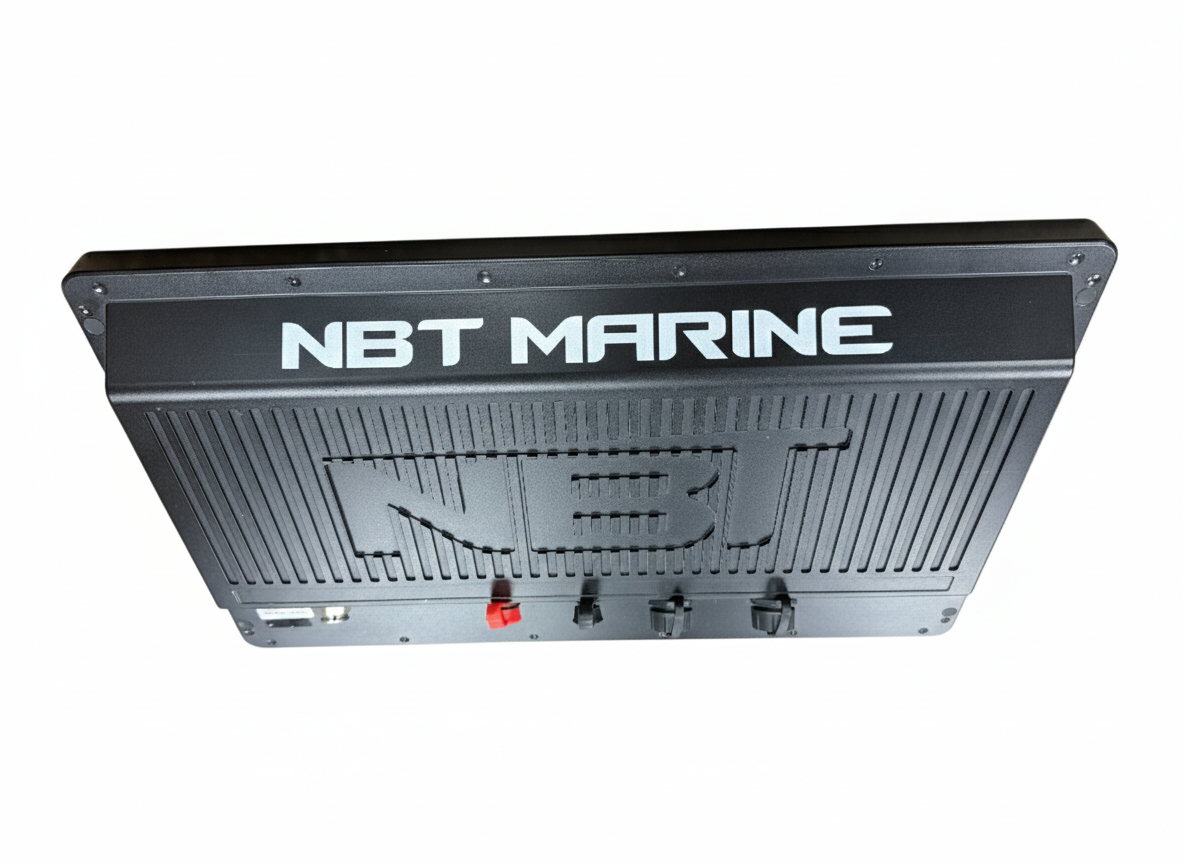

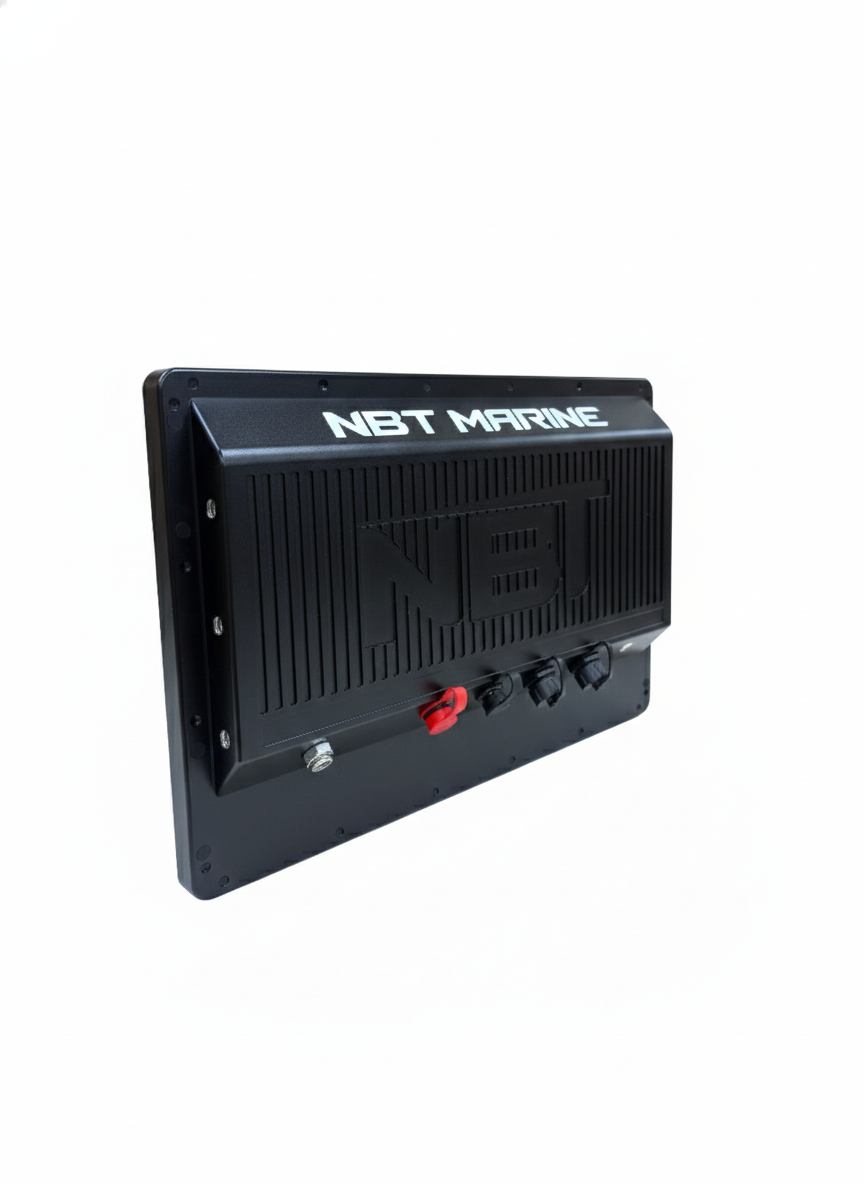

NBT Marine 22" Battleship Pro QHD

The 22" Battleship Pro QHD is NBT Marine's flagship display delivering 2560 x 1440 resolution on a 21.6" diagonal screen at 1500 nits. Designed for tournament-level Garmin installations, this monitor handles dual LiveScope, SideVu, DownVu, and up to six split-screen boxes from your 86XX or 1243/1643 series chartplotter.

Why Anglers Choose the 22" Battleship Pro QHD

• 21.6" diagonal screen provides the real estate needed to run multiple LiveScope views, mapping, and sonar simultaneously without compromising clarity on any single window
• 1500 nits brightness with optical bonding and anti-glare UV coatings ensures sunlight readability when you need it most
• IP67 waterproof rating means the display is sealed against dust and submersion, not just splash-resistant
• Plug-and-play kit with 26-foot HDMI cable and gimbal mount eliminates guesswork during installation
• 10-point capacitive touchscreen with on/off control and included OSD remote gives you multiple ways to control the display without reaching for the chartplotter

Premium Display Performance

• Display Resolution: 2560 x 1440 QHD
• Screen Size: 21.6" diagonal, 21.3" x 13" overall dimensions
• Brightness: 1500 nits, vivid sunlight readable
• Touch Type: 10-point capacitive touch with touch on/off control
• Glass Type: Optical bonding with anti-glare UV coatings
• Split Screen: Up to 6 split-screen boxes

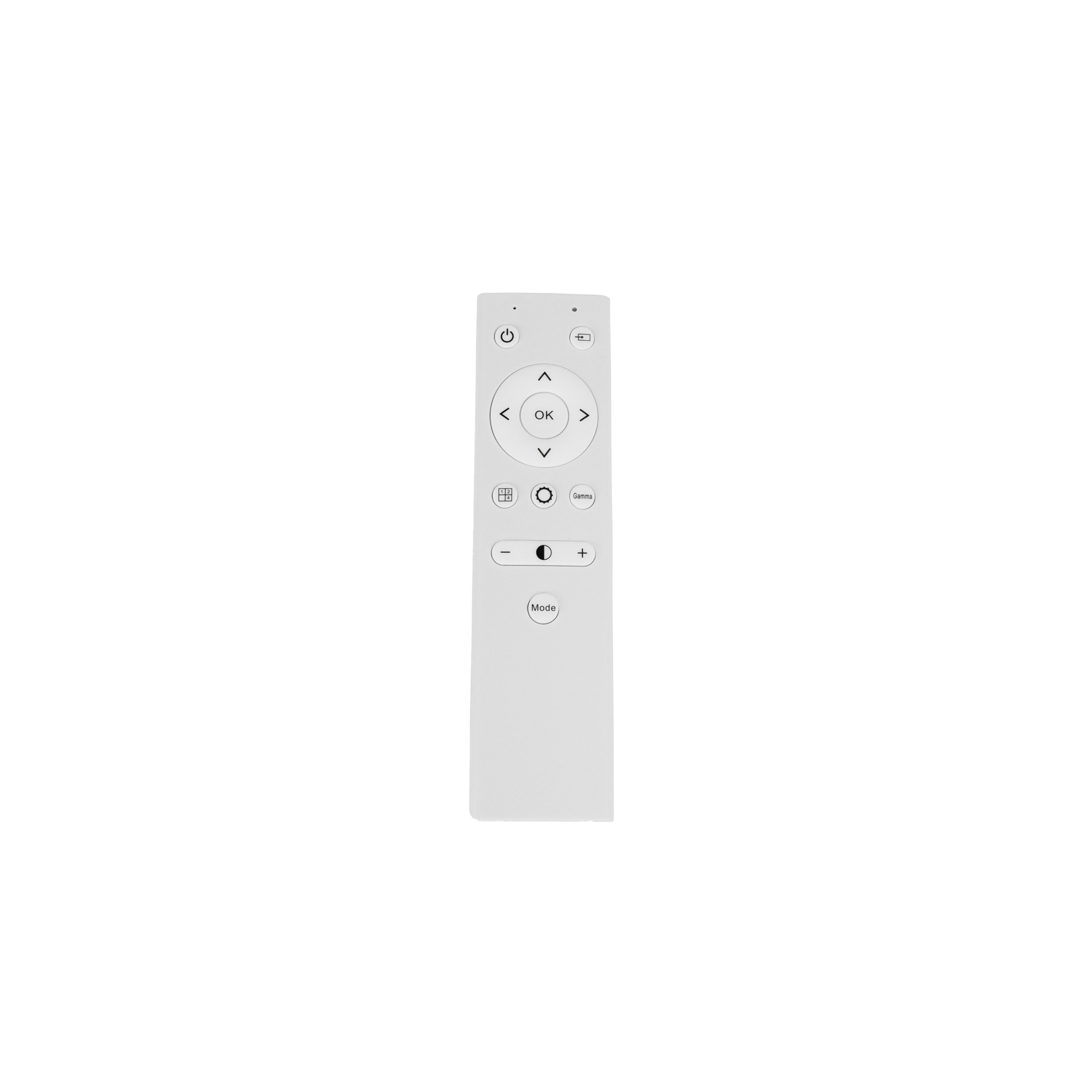

• Remote OSD: Included remote control
• Polarization Capable

Built for Harsh Marine Environments

• Waterproof Rating: IP67 (dust-tight and protected against submersion)
• Operating Temperature: -20°C to +75°C (-4°F to +170°F)

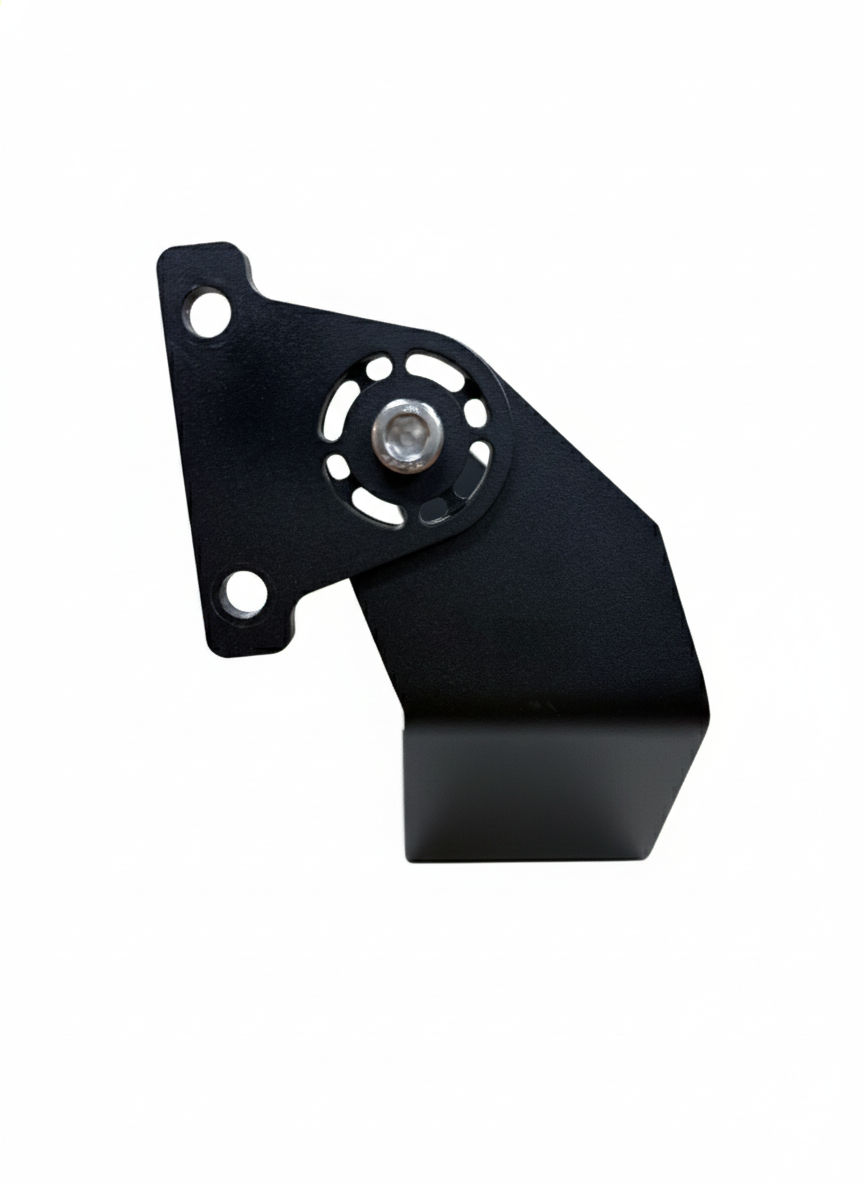

• Mounting: Included gimbal mount
• Weight: 7.5 kg (16.5 lbs)

Advanced Compatibility

• GARMIN 8700
• GARMIN 1643 (XSV) or NON
• GARMIN 8610 8410 (XSV) or NON*
• GARMIN 8612 8412 (XSV) or NON
• GARMIN 8616 8416 (XSV) or NON
• GARMIN 1243 (XSV) or NON*
• GARMIN 9210 (XSV) or NON*
• GARMIN 9213 (XSV) or NON*
• GARMIN 9217 (XSV) or NON*
• LiveScope: All compatible units up to 2 LiveScopes
• SideVu / DownVu: All compatible XSV units or GCV box
• * Some limitations apply. The 8610, 8410, 1243, and 9210/9213/9217 series have Garmin software limitations that may affect certain functions.

Power & Connectivity

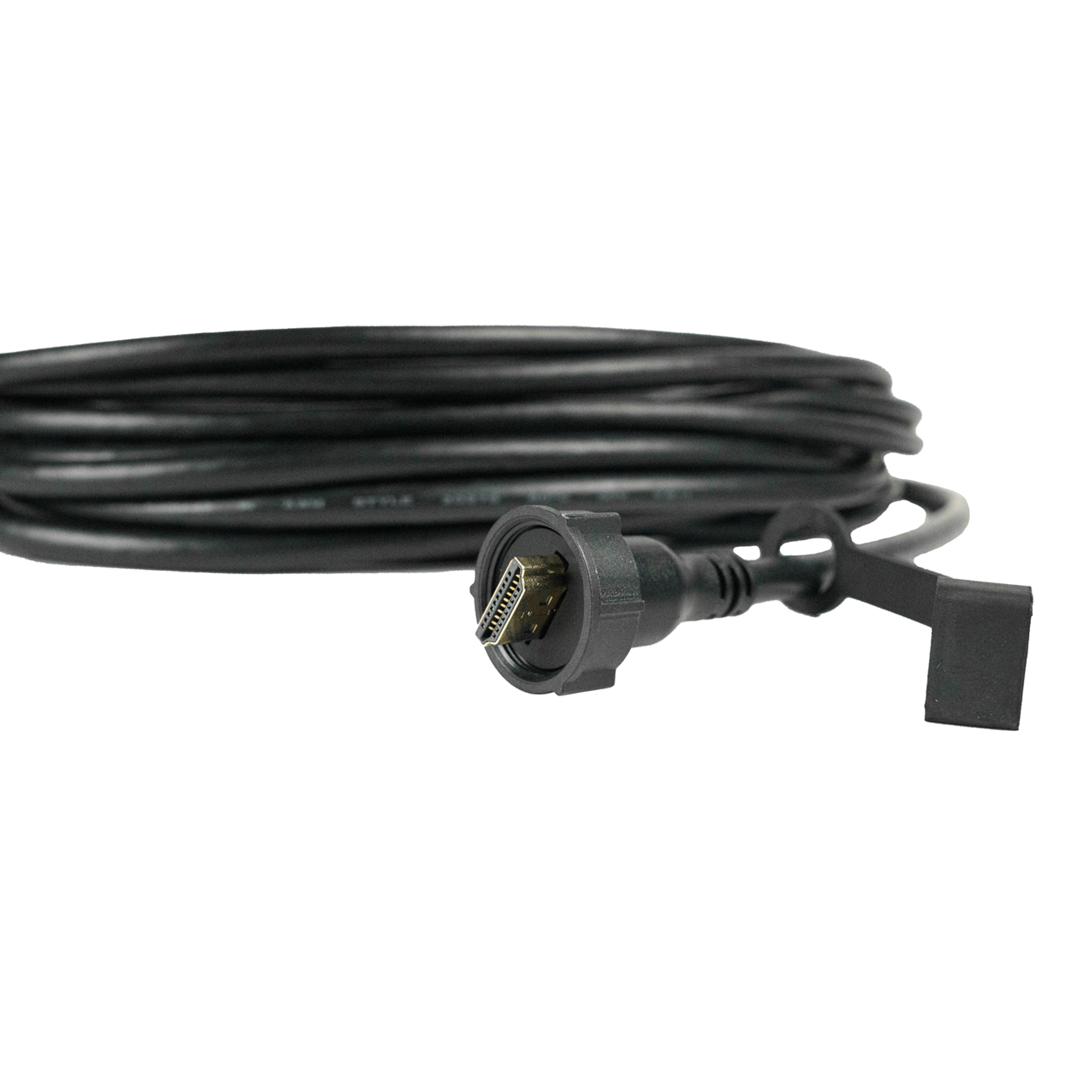

• HDMI Cable: 8 meters (26 feet)

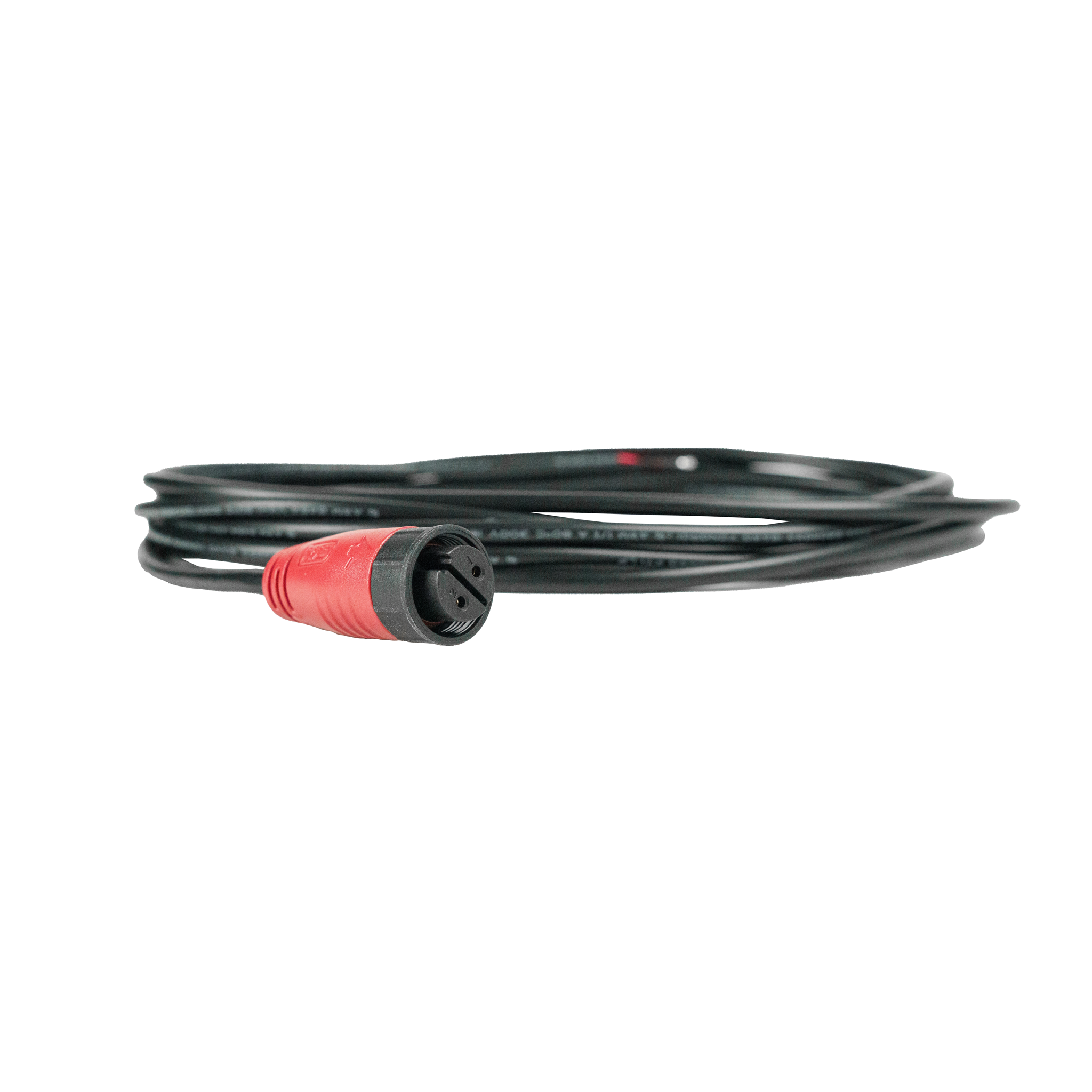

• DC Power Cable: 4 meters (13 feet)

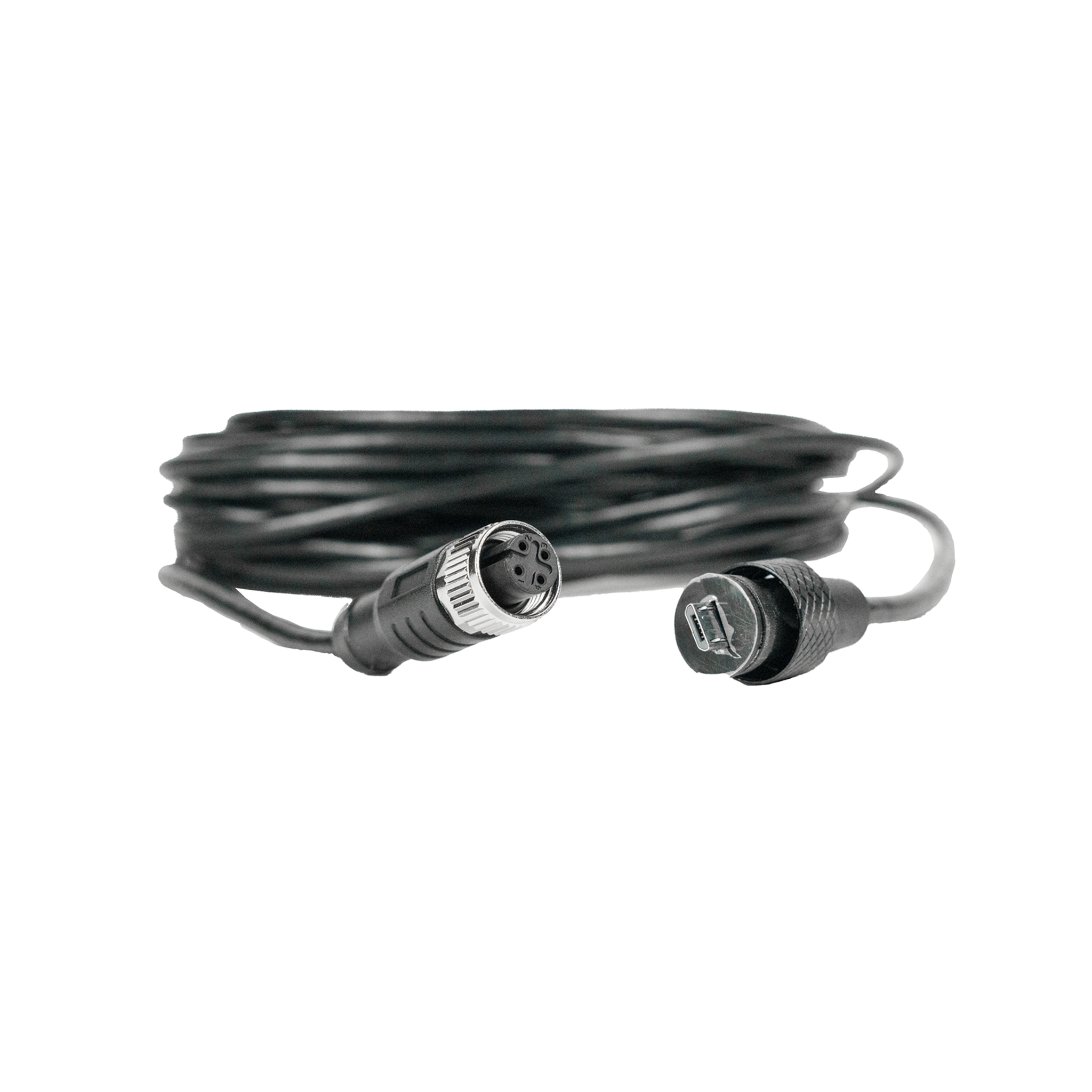

• USB Cable: 8 meters (26 feet)
• Power Input: 10V to 18V DC
• Typical Current Draw at 12V DC: 4.2A
• Maximum Current Draw at 12V DC: 6A

Why Upgrade

• Running dual LiveScope on a small MFD screen forces you to choose between seeing detail and seeing the full picture. This 22" QHD display lets you do both.
• Glare and washout turn expensive sonar into guesswork. 1500 nits brightness with optical bonding and anti-glare coatings means you see what you paid for, regardless of sun angle.
• Adding a second display usually means buying proprietary hardware at proprietary prices. The Battleship Pro works with the Garmin unit you already own.

Backed by the manufacturer warranty. This is the flagship unit in the NBT Marine lineup for a reason.
