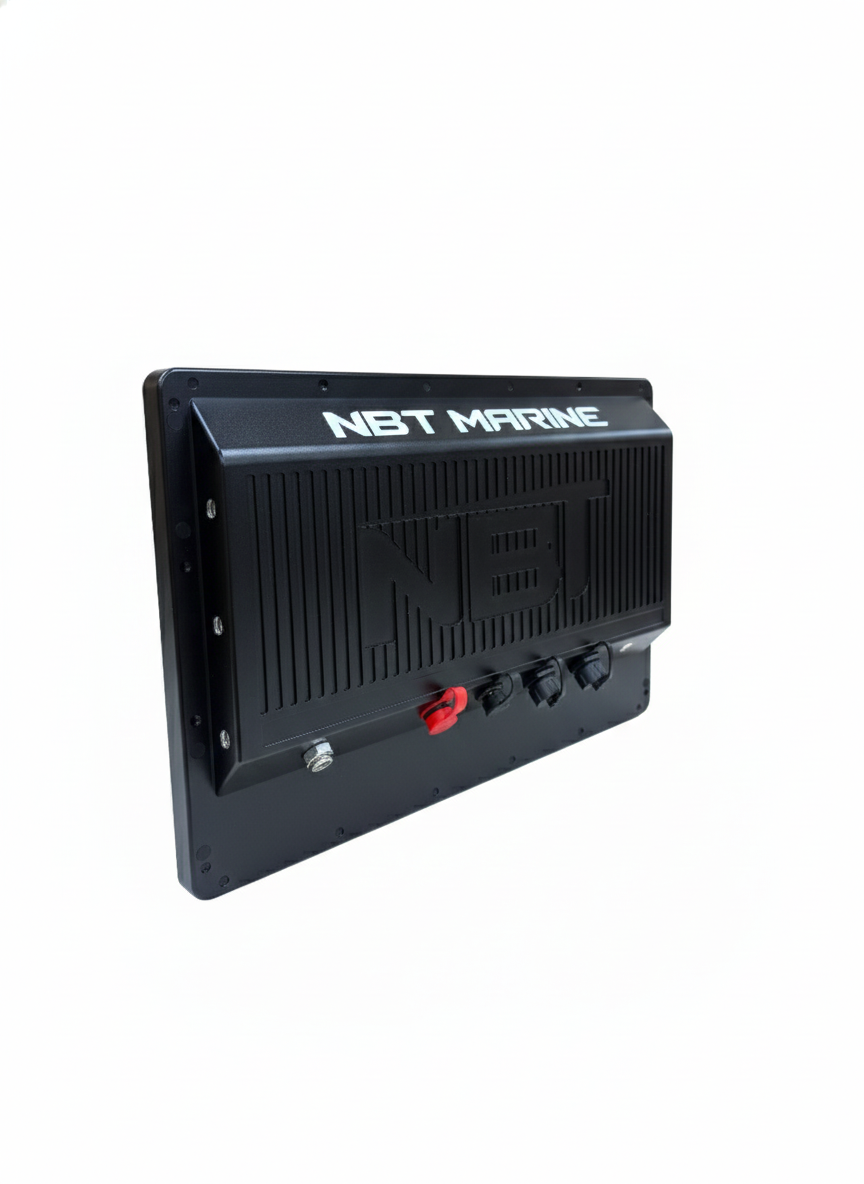

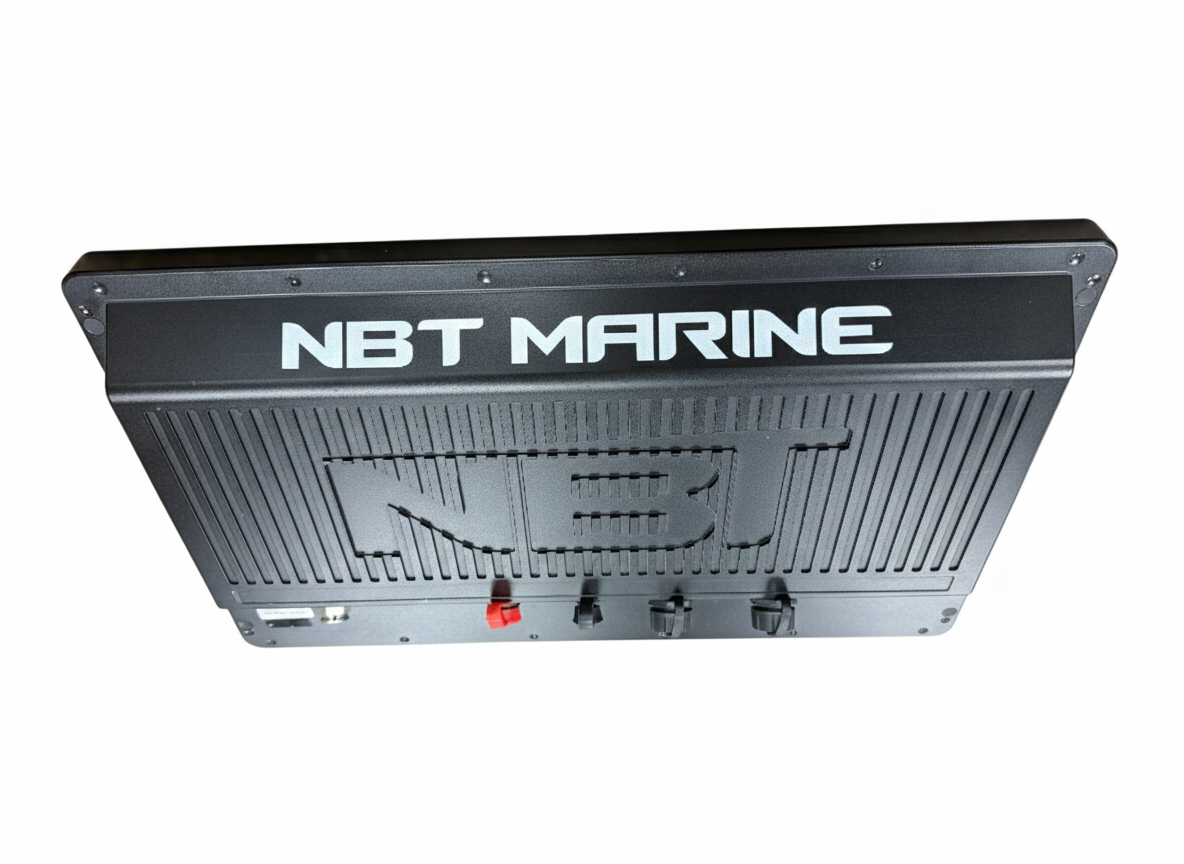

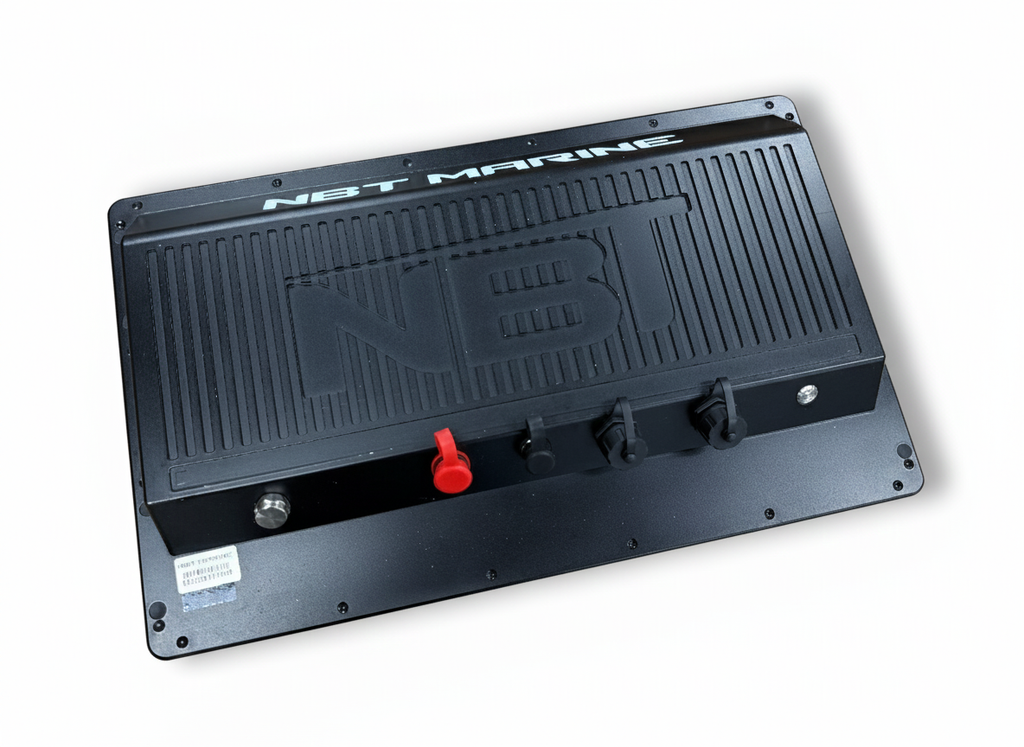

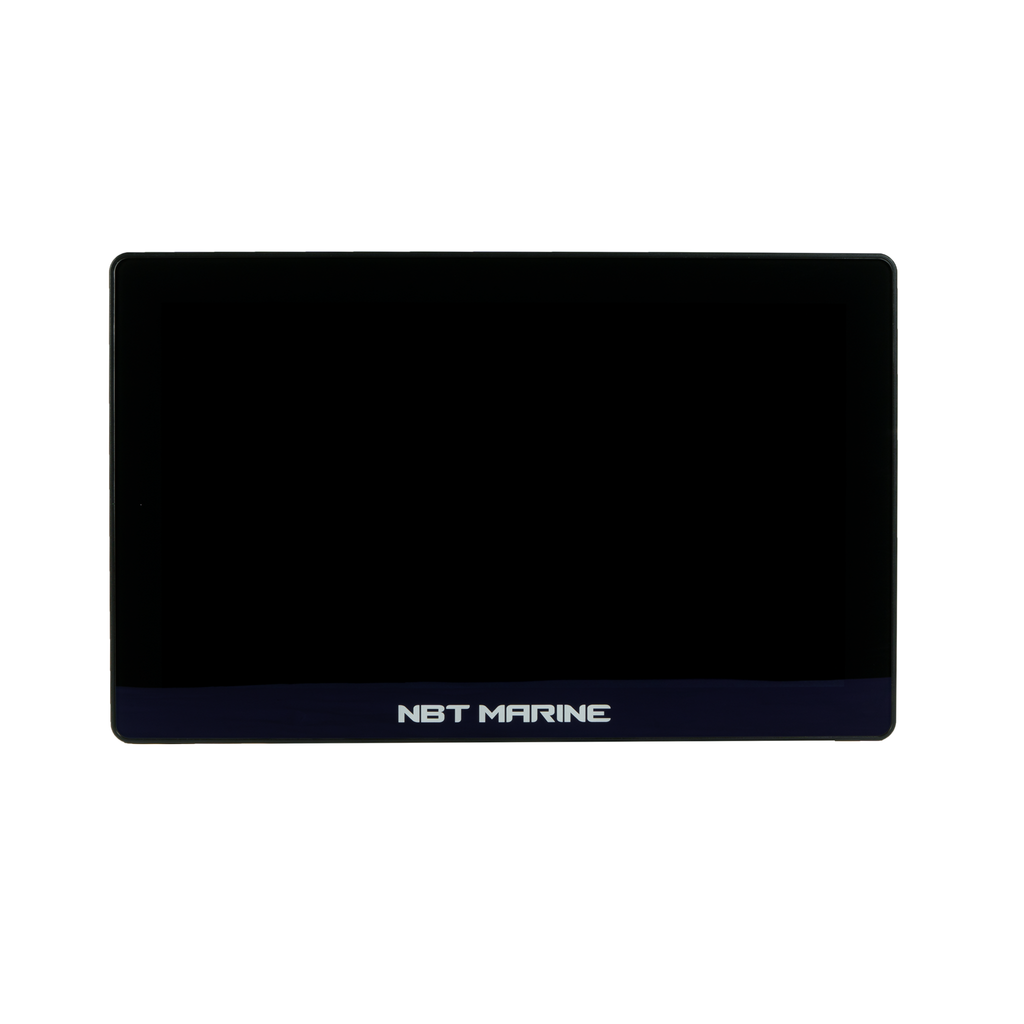

The NBT Marine 18" Cruiser Pro QHD is a plug-and-play touchscreen display designed for Garmin chartplotters. With QHD resolution, 1500-nit brightness, and IP67 waterproof construction, this monitor delivers LiveScope and sonar clarity for anglers running multiple screens or upgrading from smaller displays. Compatible with Garmin 9XXX, 86XX, and select 12/16-inch units.
Why Anglers Choose the 18" Cruiser Pro QHD
- 18.3-inch diagonal display provides more working area for split-screen sonar, charts, and LiveScope views without crowding.
- 2560 x 1440 QHD resolution and 1500-nit brightness deliver sharp imaging in direct sunlight.
- IP67 waterproof rating and operational temperature range of -20°C to +75°C handle spray, humidity, and temperature swings.
- Plug-and-play integration with Garmin chartplotters using included HDMI, power, and USB cables.
- Optical bonding with anti-glare UV coating reduces reflections and improves polarized sunglass compatibility.
Premium Display Performance
- Display size: 18.3 inches diagonal
- Resolution: 2560 x 1440 (QHD)
- Brightness: 1500 nits
- Touch type: 10-point capacitive with touch on/off control
- Split-screen: Up to 6 boxes

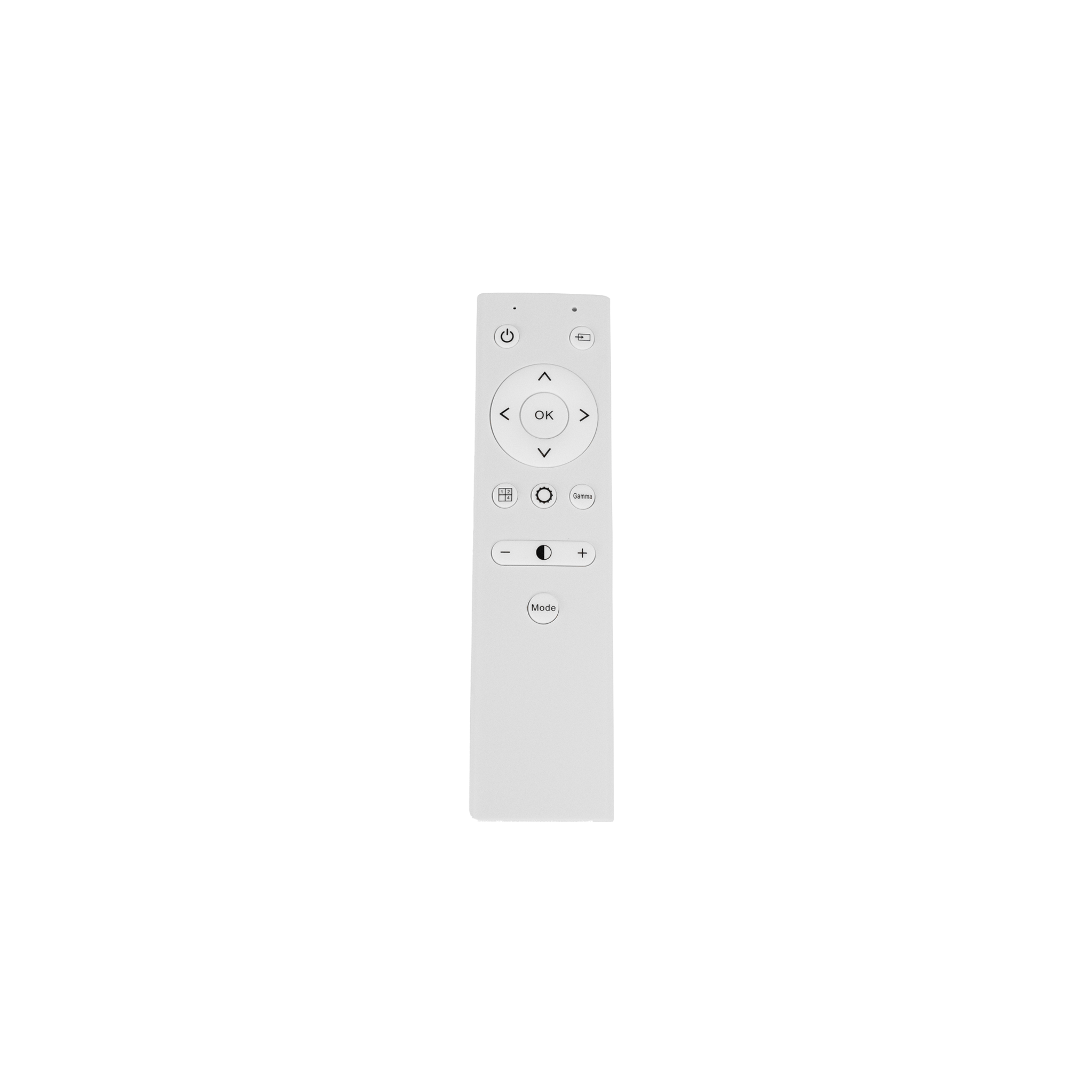

- Remote OSD: Included remote control
- Dimensions: 12" x 19"
Built for Harsh Marine Environments
- Waterproof rating: IP67
- Operating temperature: -20°C to +75°C (-4°F to +170°F)

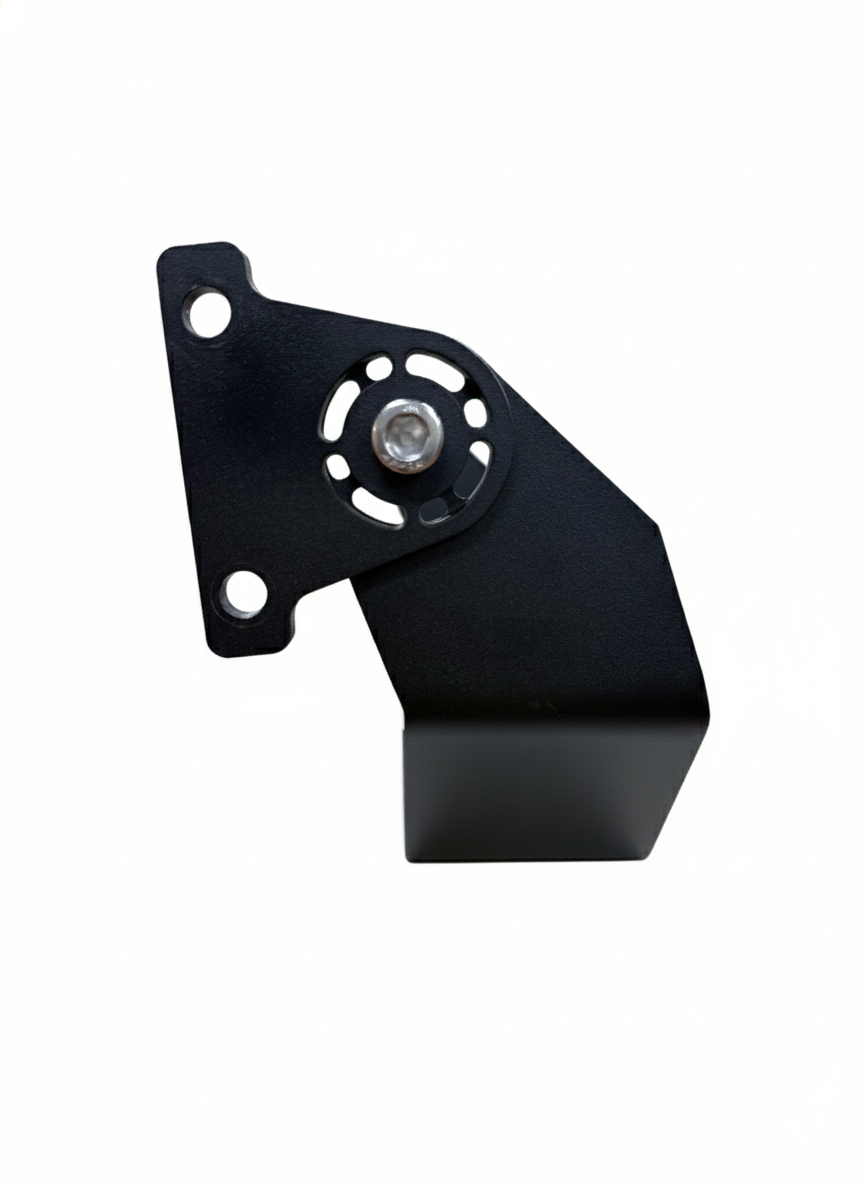

- Mounting: Included gimbal bracket
- Rugged shock rating: 20G
- Polarization capable for use with polarized sunglasses
- Weight: 13 lbs
Advanced Compatibility
- Garmin 8700
- Garmin 1643 (XSV or non-XSV)
- Garmin 8610, 8410 (XSV or non-XSV)*
- Garmin 8612, 8412 (XSV or non-XSV)
- Garmin 8616, 8416 (XSV or non-XSV)
- Garmin 1243 (XSV or non-XSV)*
- Garmin 9210 (XSV or non-XSV)*
- Garmin 9213 (XSV or non-XSV)*
- Garmin 9217 (XSV or non-XSV)*
- LiveScope: All compatible units support up to 2 LiveScope displays
- SideVu / DownVu: All compatible XSV units or GCV box
- * Some limitations apply per Garmin software (8610, 8410, 1243, 9210, 9213, 9217)

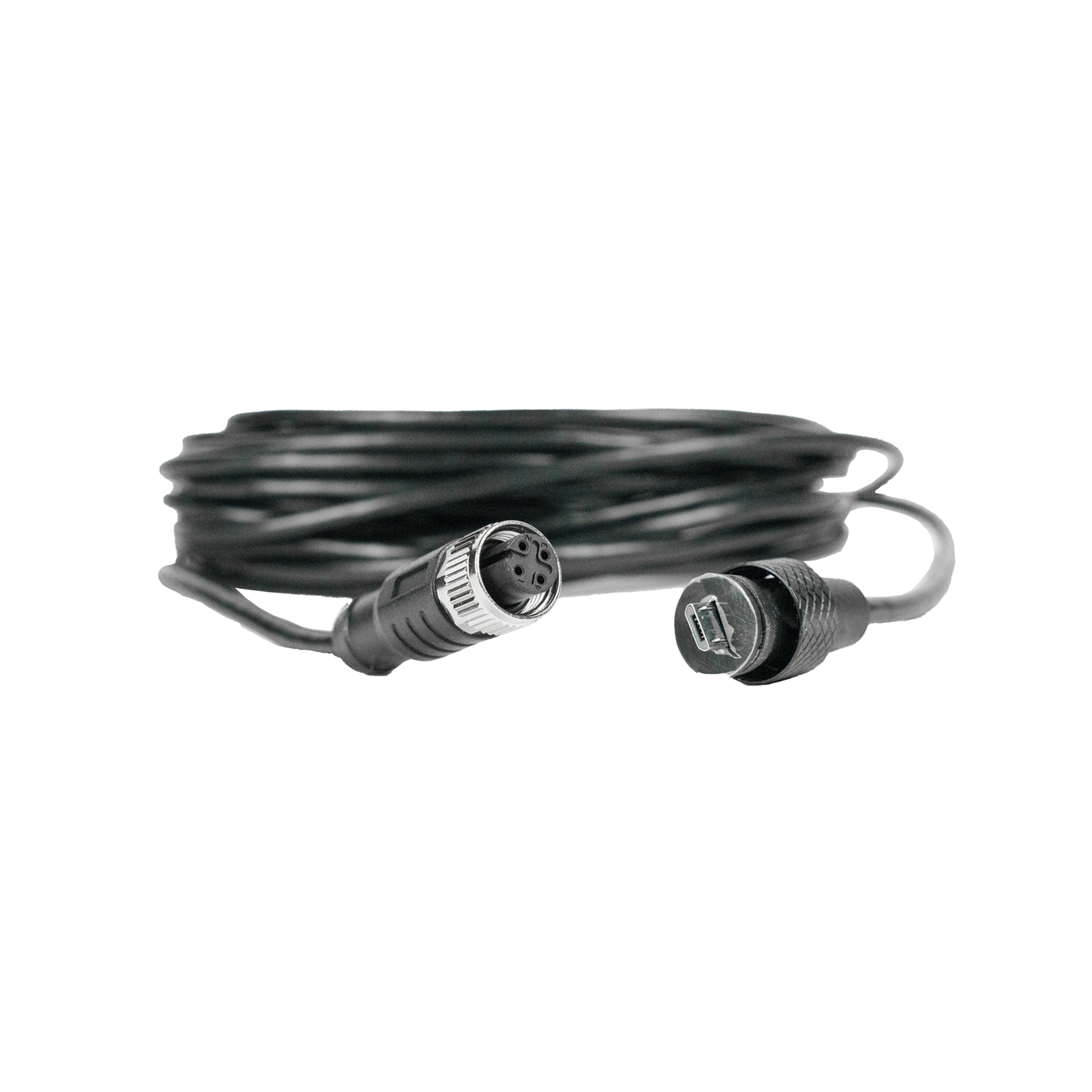

Power & Connectivity

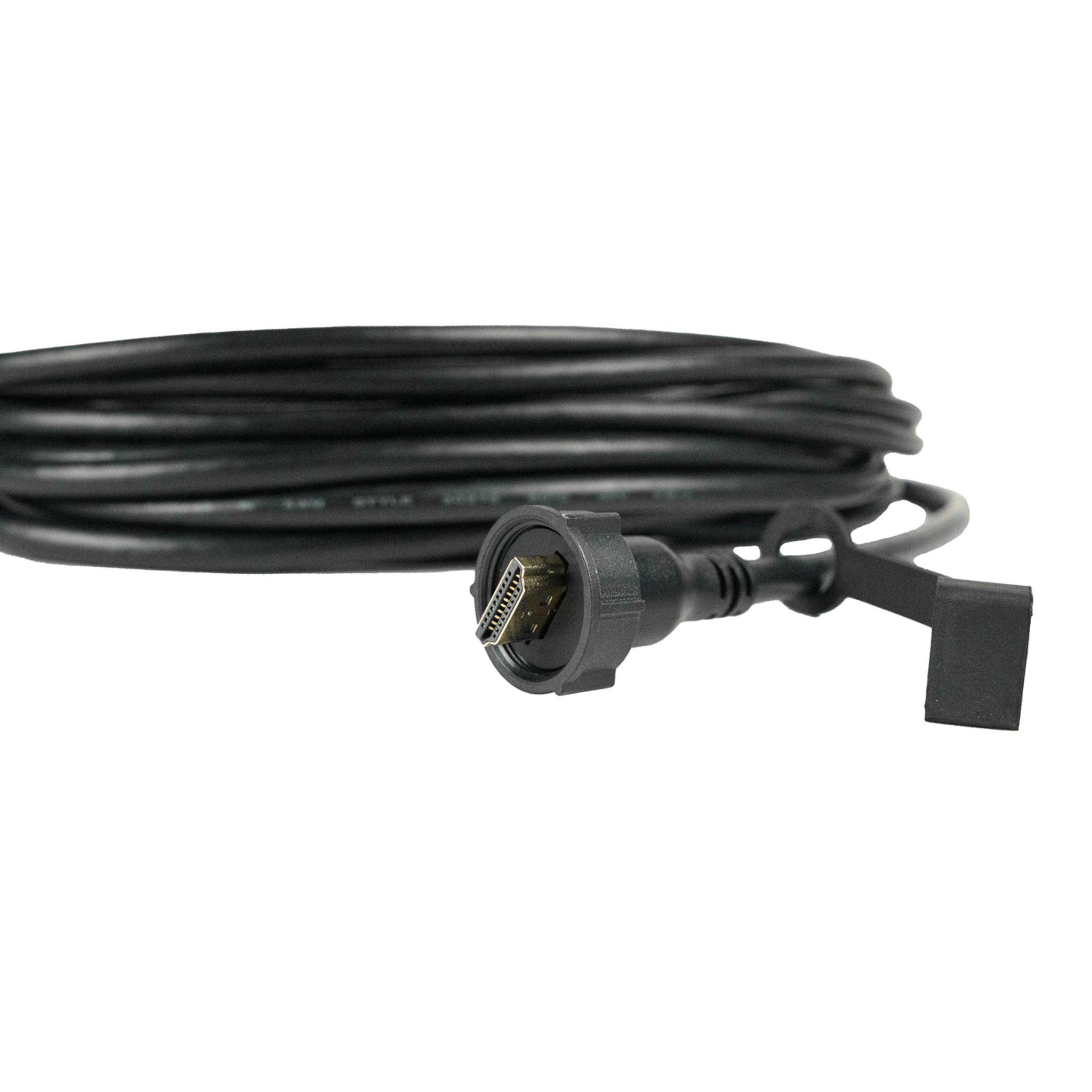

- HDMI cable: 8 meters (26 feet)

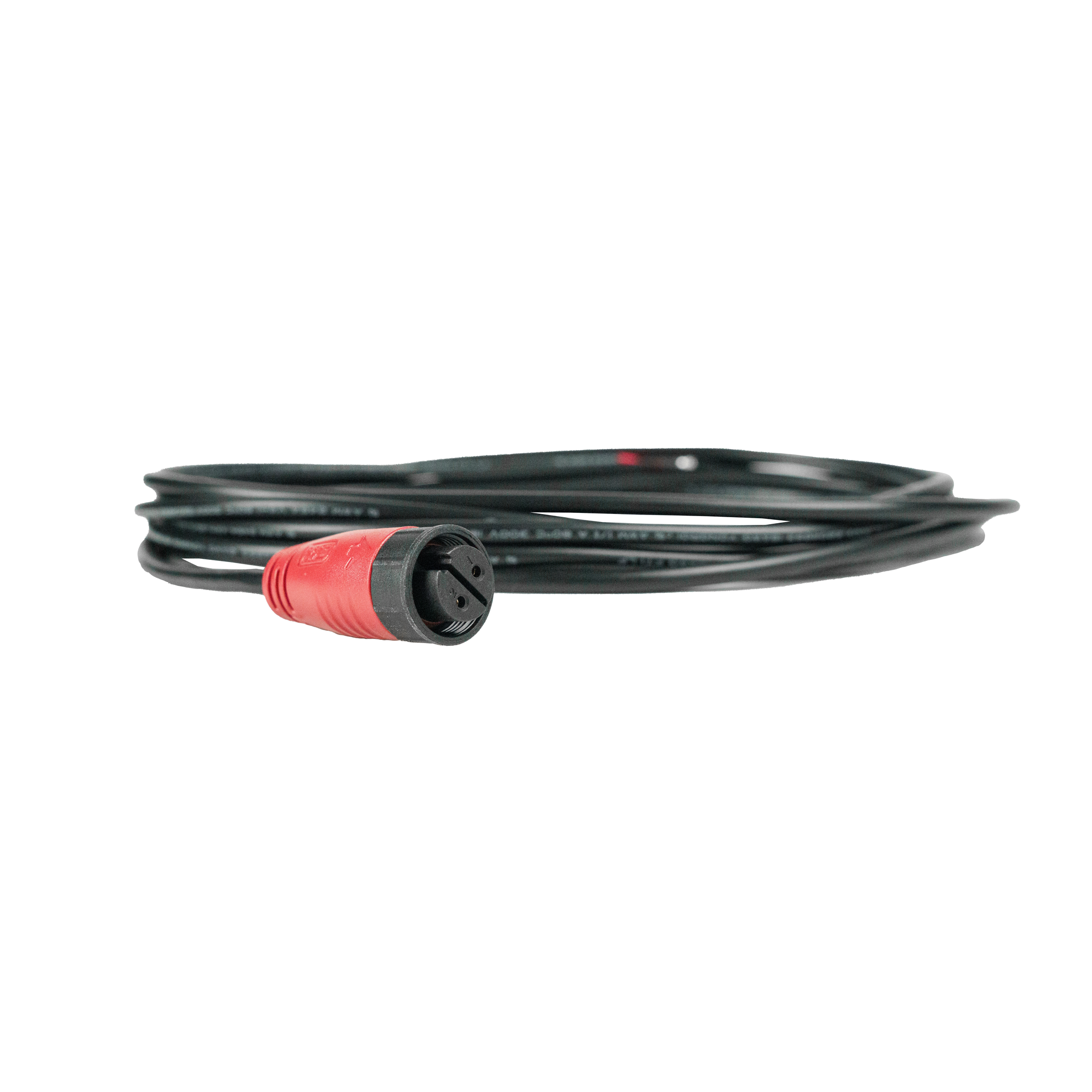

- DC power cable: 4 meters (13 feet)
- USB cable: 8 meters (26 feet)
- Power input: 10V to 28V DC
- Typical current draw at 12V: 4.2A
- Maximum current draw at 12V: 7A
Why Upgrade
- Running LiveScope and multiple sonar views on a single 12-inch screen forces you to choose between detail and context. The 18.3-inch display eliminates that tradeoff with room for six split-screen boxes.
- Standard marine displays dim out in bright conditions. The 1500-nit panel and anti-glare coating maintain visibility regardless of sun angle or time of day.
- Aftermarket displays often require adapter harnesses, custom mounts, or voltage converters. This unit includes the gimbal mount, power cable, HDMI cable, and USB cable for immediate installation.
Backed by the manufacturer warranty. Contact us with questions about compatibility with your specific Garmin chartplotter.
