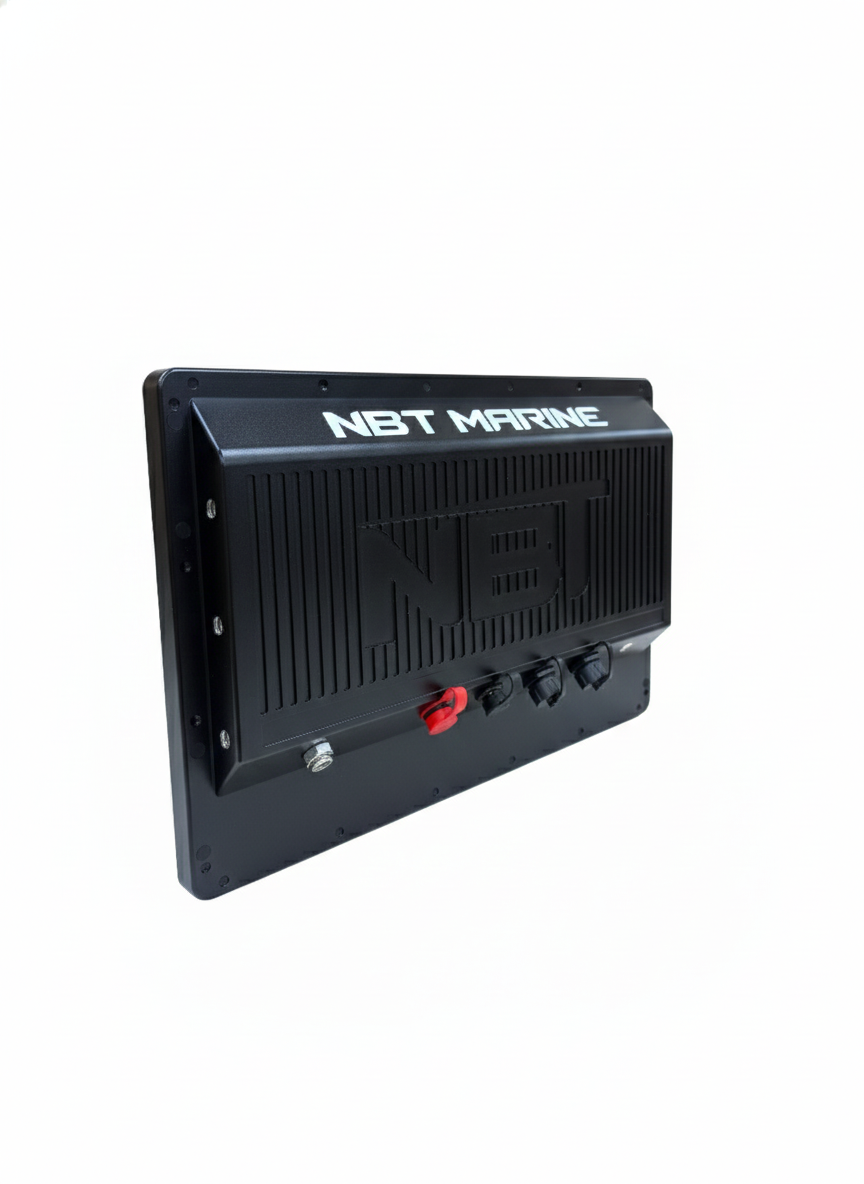

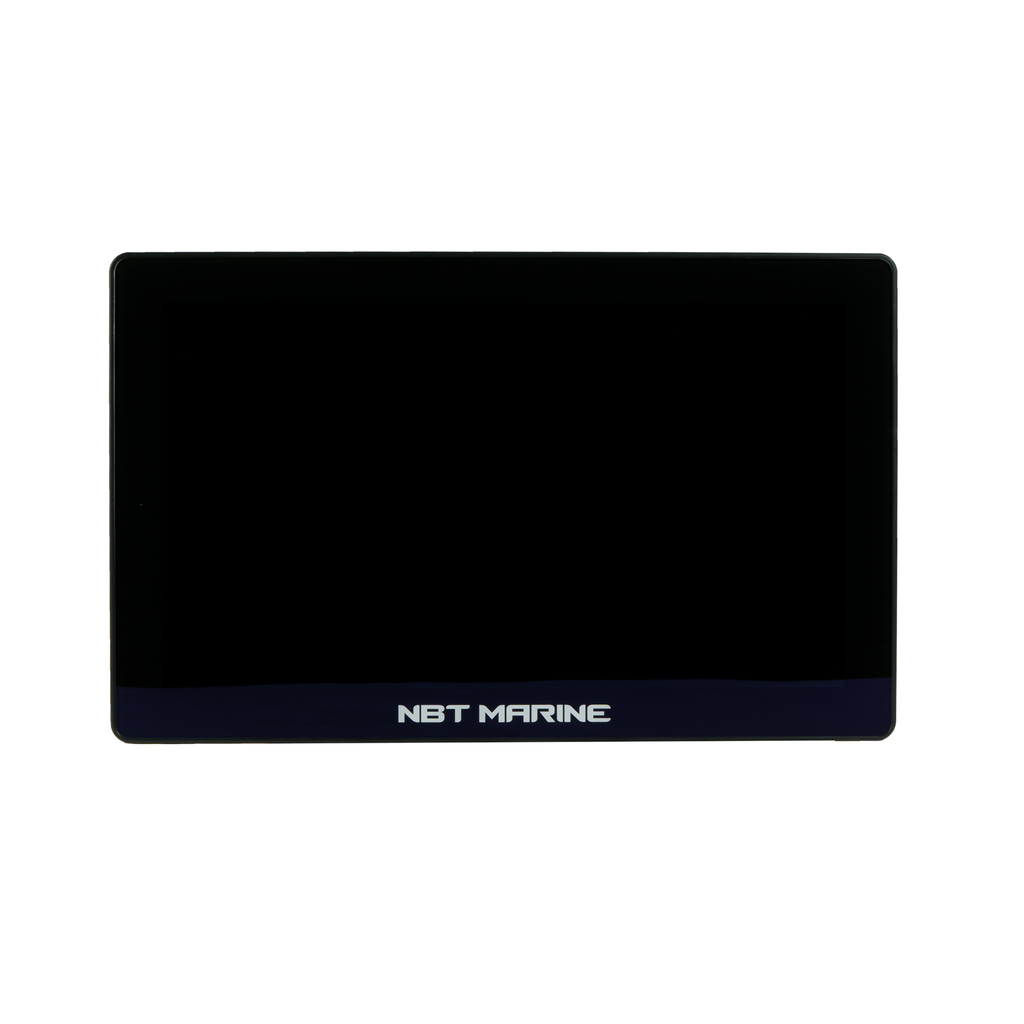

The NBT Marine 16" Destroyer Pro 4k is a tournament-grade monitor delivering 4k UHD resolution and 1500-nit brightness for serious anglers running Garmin LiveScope, SideVu, and DownVu. This plug-and-play system connects to Garmin 9XXX, 86XX, 1243, and 1643 units, giving you a massive screen upgrade without rewiring your console.
Why Anglers Choose the 16" Destroyer Pro 4k
- 15.7" diagonal 4k display (3840 x 2160) puts LiveScope and SideVu detail right in front of you with zero squinting
- 1500-nit brightness with optical bonding and anti-glare UV coatings cuts through direct sun
- IP67 waterproof rating and -4F to +170F operating range handle every condition you will fish
- Plug-and-play installation with 26-foot HDMI cable and included gimbal mount gets you running fast
- 10-point capacitive touchscreen with on/off control and included OSD remote for full command when conditions change
Premium Display Performance
- Screen size: 15.7" diagonal (16.5" x 10.5" overall dimensions)
- Resolution: 3840 x 2160 (4k UHD)
- Brightness: 1500 nits
- Touch type: 10-point capacitive with touch on/off control
- Split-screen capability: Up to 6 boxes

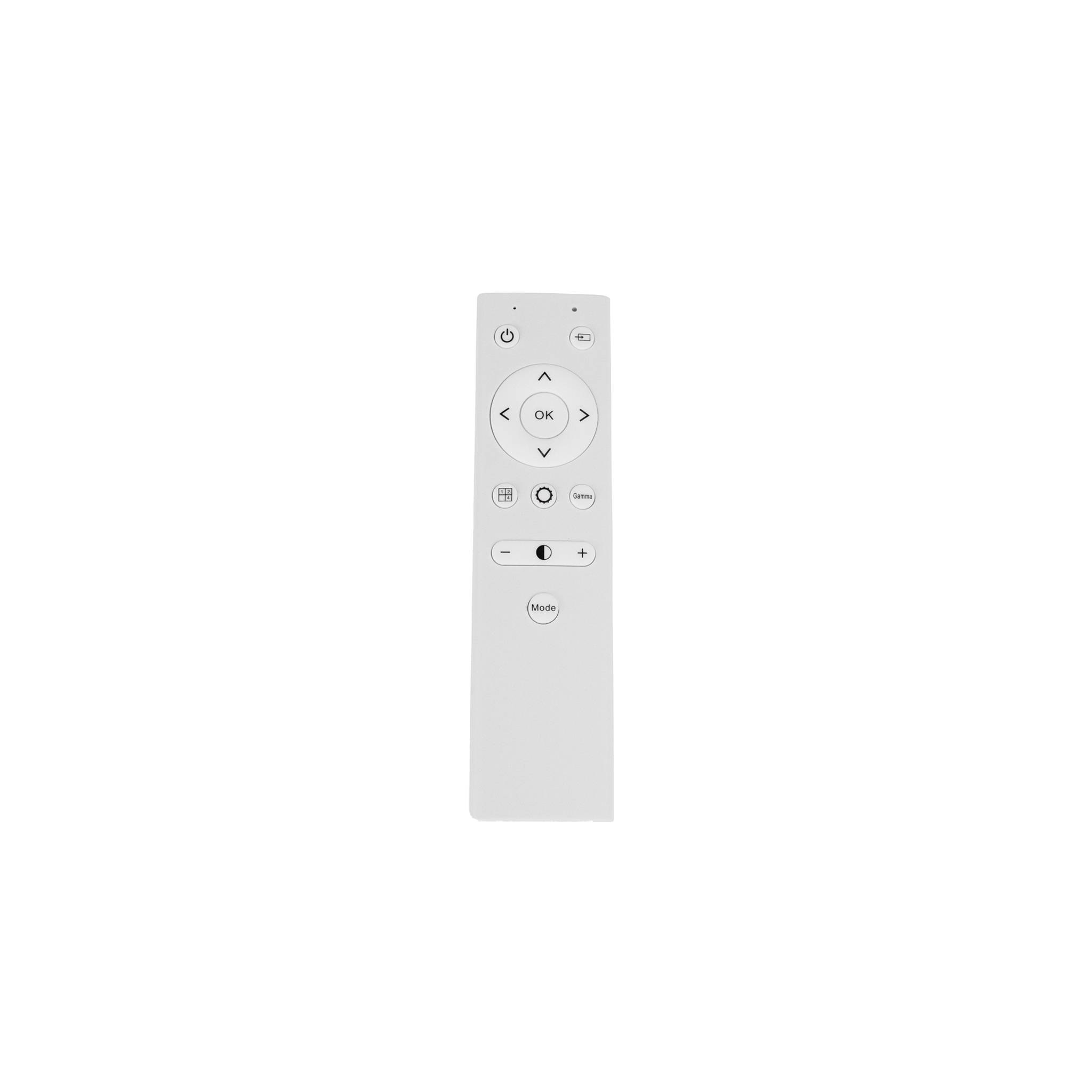

- OSD remote: Included
- Glass type: Optical bonding with anti-glare UV coatings
- Weight: 10 lbs
Built for Harsh Marine Environments
- Waterproof rating: IP67
- Operating temperature: -4F to +170F
- Rugged shock rating: 20G

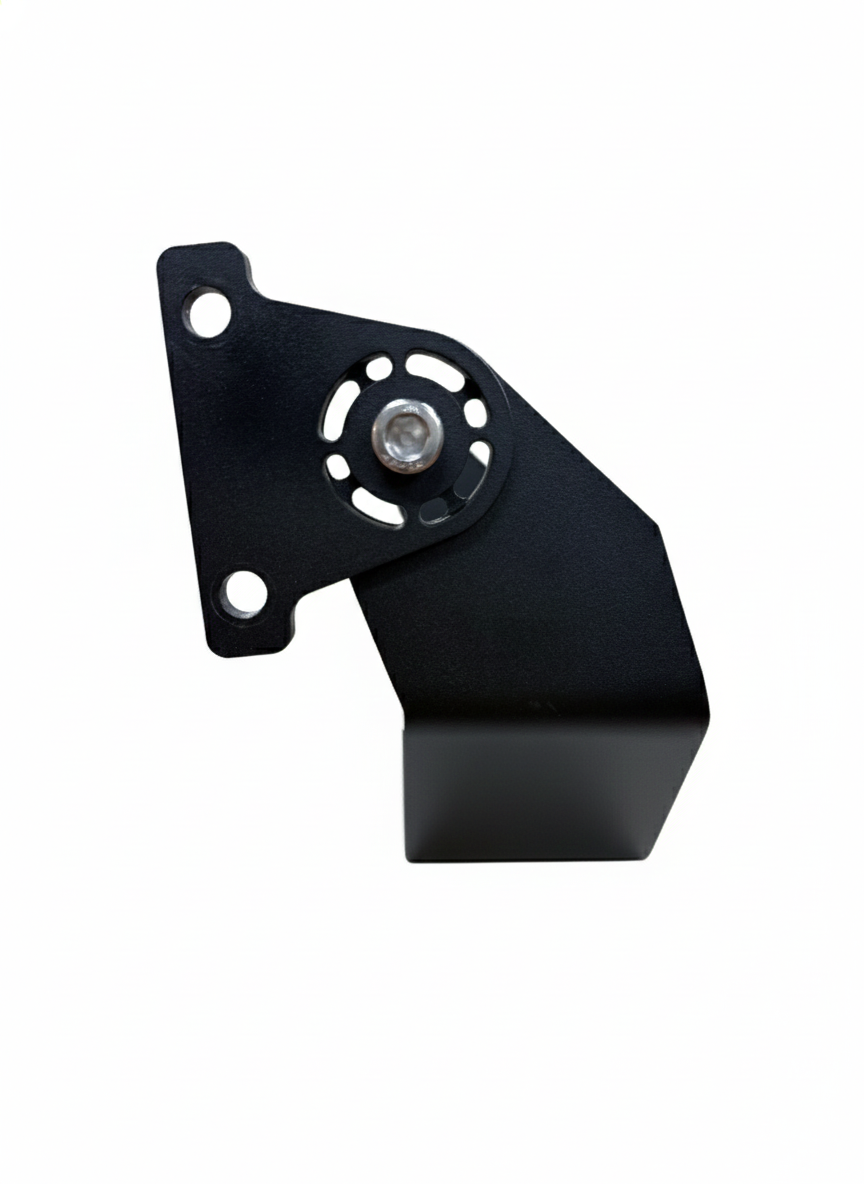

- Mounting: Included gimbal
- Polarization capable
Advanced Compatibility
- Garmin 8700
- Garmin 1643 (XSV or non-XSV)
- Garmin 8610, 8410 (XSV or non-XSV)*
- Garmin 8612, 8412 (XSV or non-XSV)
- Garmin 8616, 8416 (XSV or non-XSV)
- Garmin 1243 (XSV or non-XSV)*
- Garmin 9210 (XSV or non-XSV)*
- Garmin 9213 (XSV or non-XSV)*
- Garmin 9217 (XSV or non-XSV)*
- LiveScope: All compatible units up to 2 LiveScopes
- SideVu / DownVu: All compatible XSV units or GCV box
- * Some limitations apply (Garmin software)

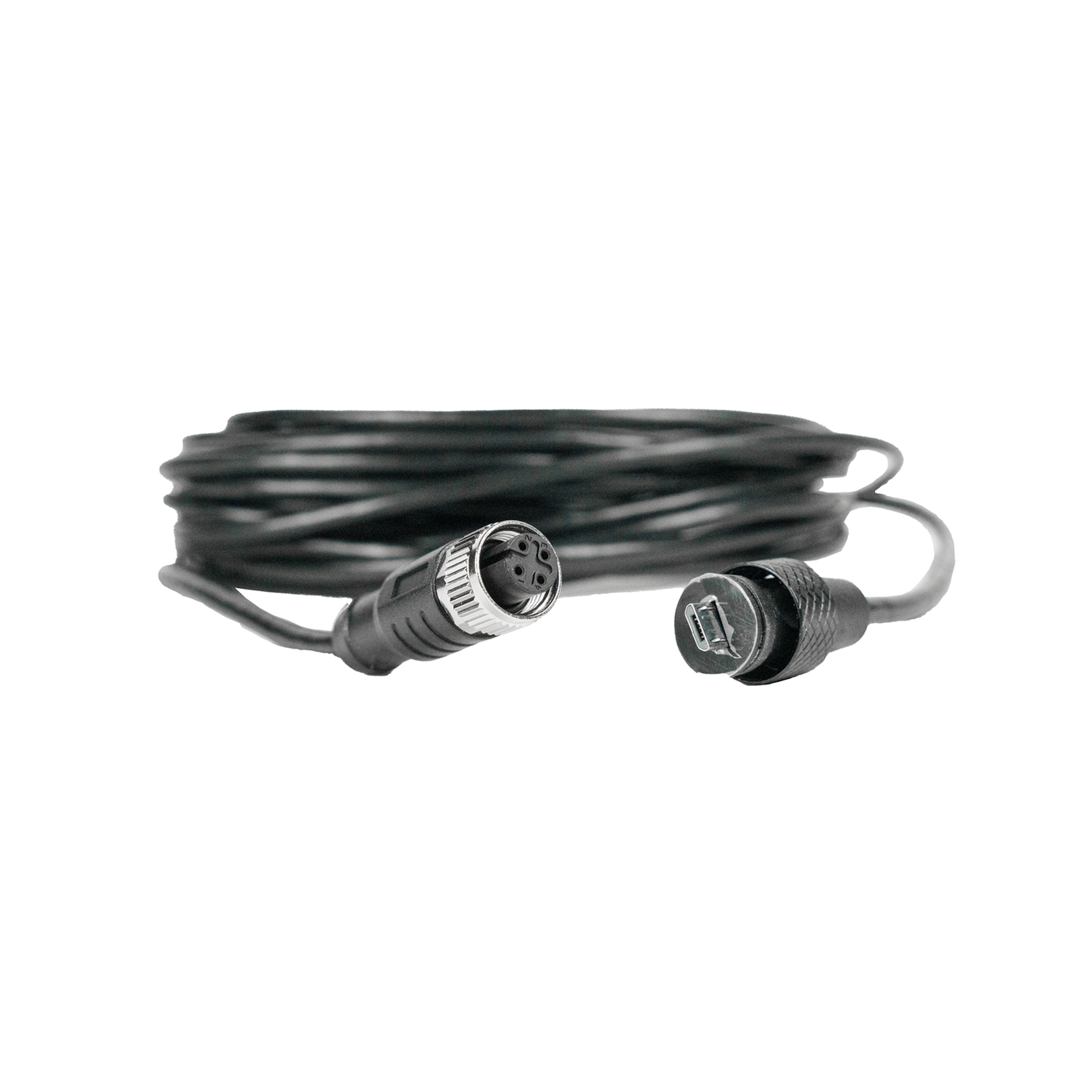

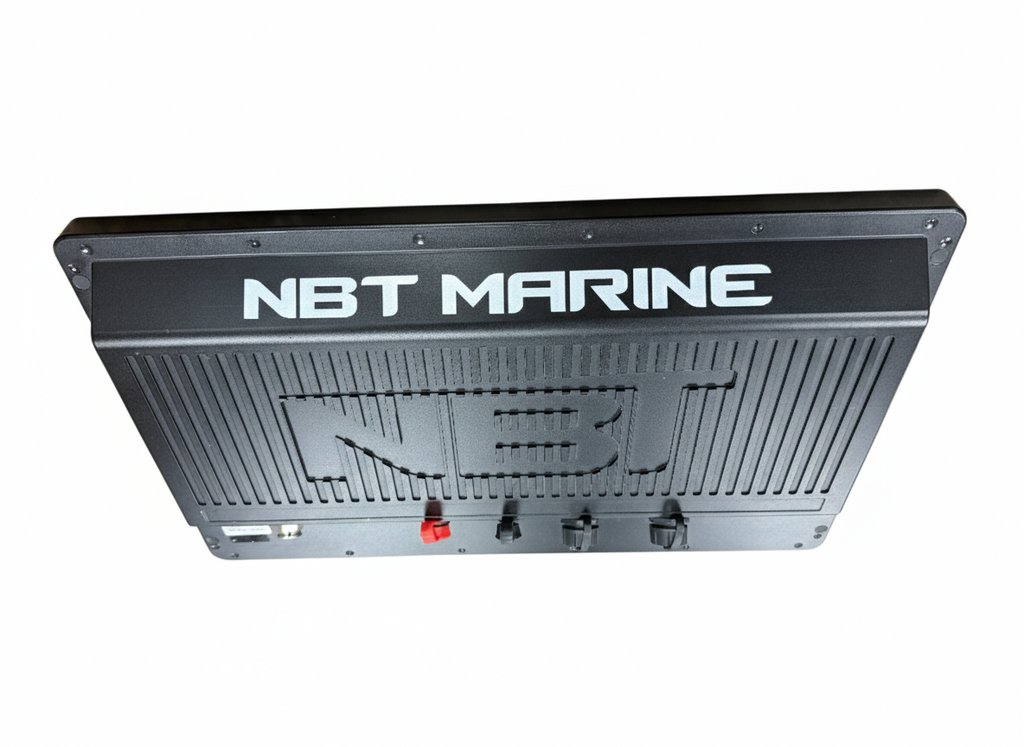

Power & Connectivity

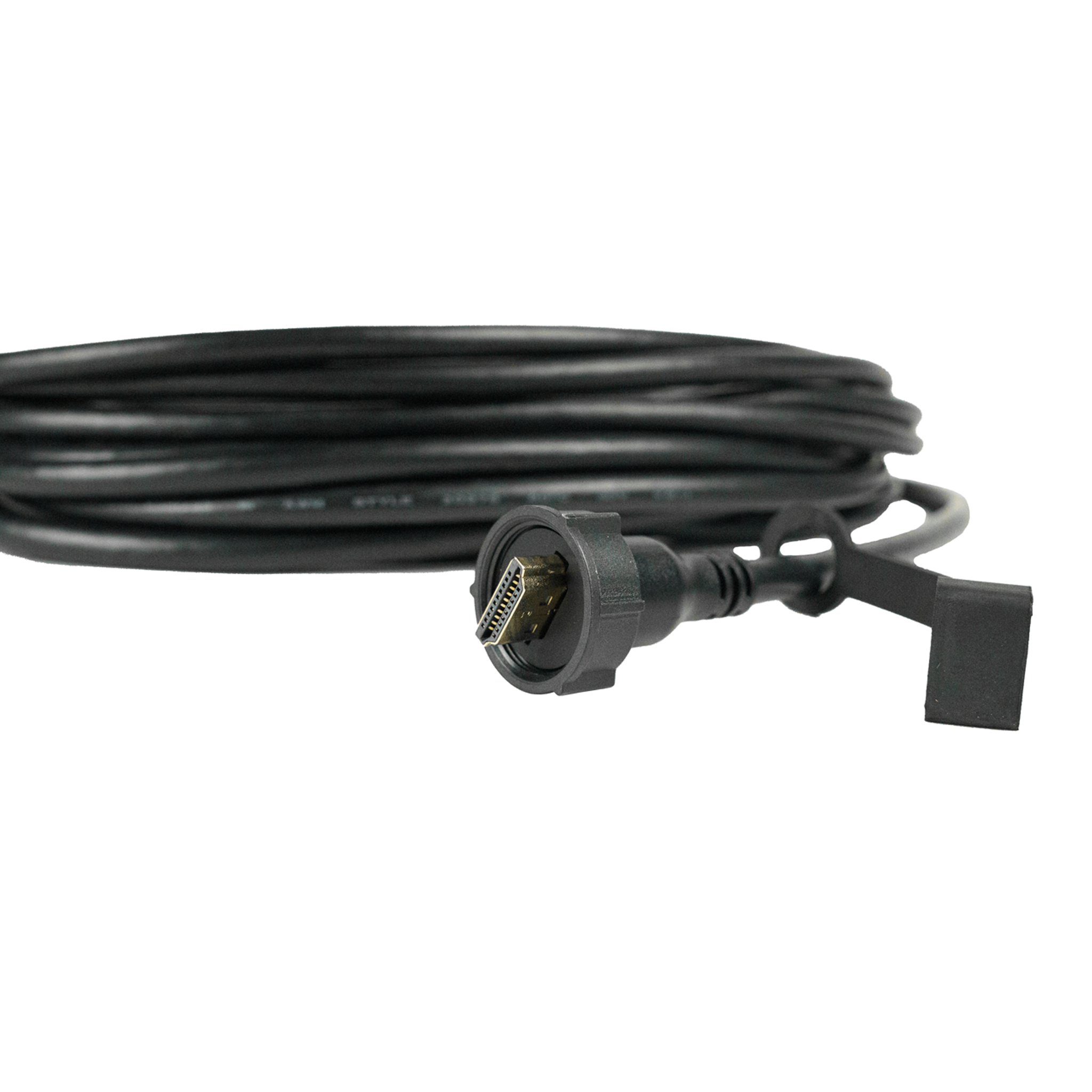

- HDMI cable: 8 meters (26 feet)

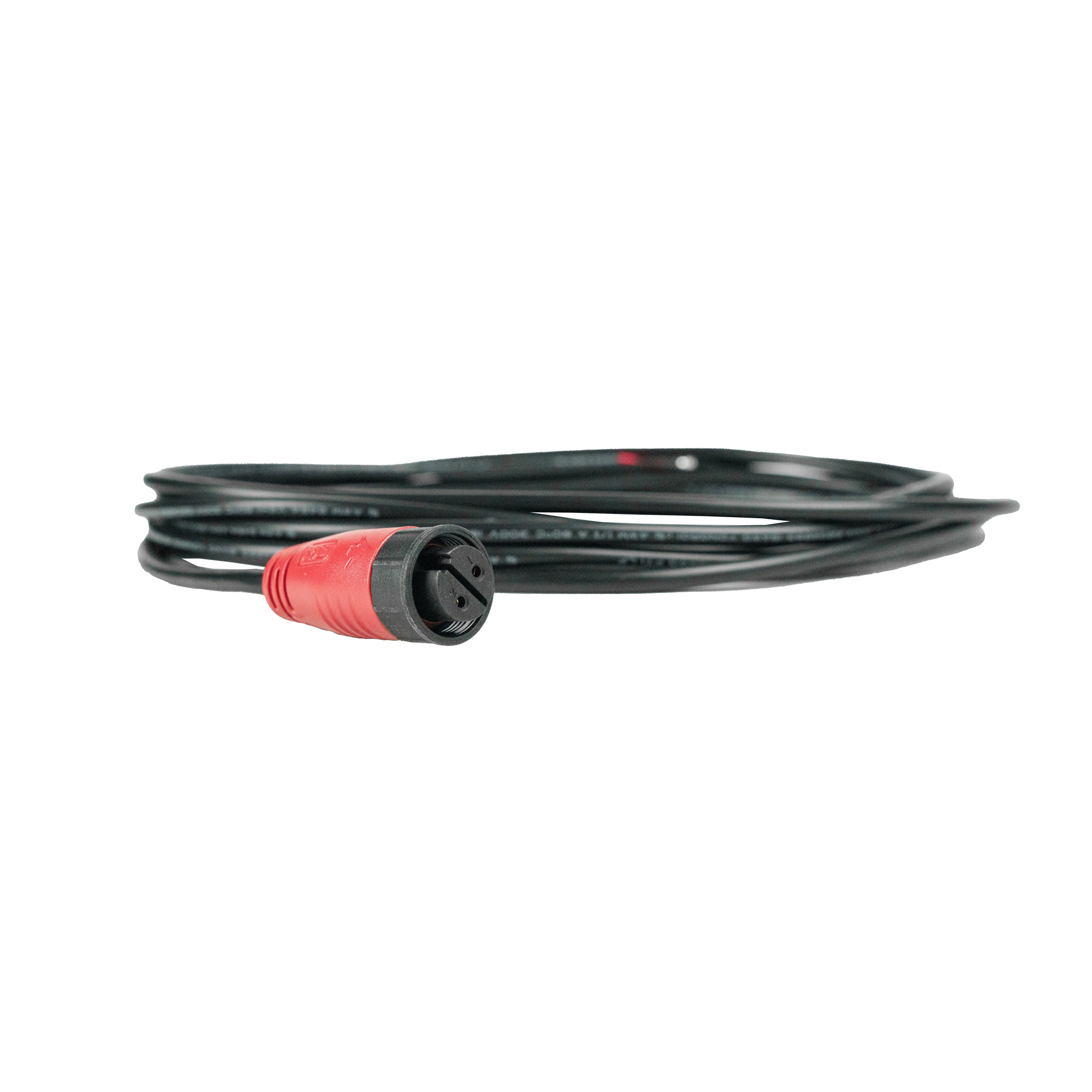

- DC power cable: 4 meters (13 feet)
- USB cable: 8 meters (26 feet)
- Power input: 10V to 28V DC
- Typical current draw at 12V DC: 4.2A
- Maximum current draw at 12V DC: 7A
Why Upgrade
- Small screens force you to toggle between maps and LiveScope constantly. This 16" 4k display with 6-way split-screen keeps everything visible at once.
- Standard MFD brightness washes out in direct sun. 1500 nits with optical bonding and anti-glare coatings means you see your targets regardless of conditions.
- Adding a second large display usually means custom mounting and complicated wiring. This system includes the gimbal mount, 26-foot HDMI, and plug-and-play compatibility with your existing Garmin setup.
Backed by the manufacturer warranty.
