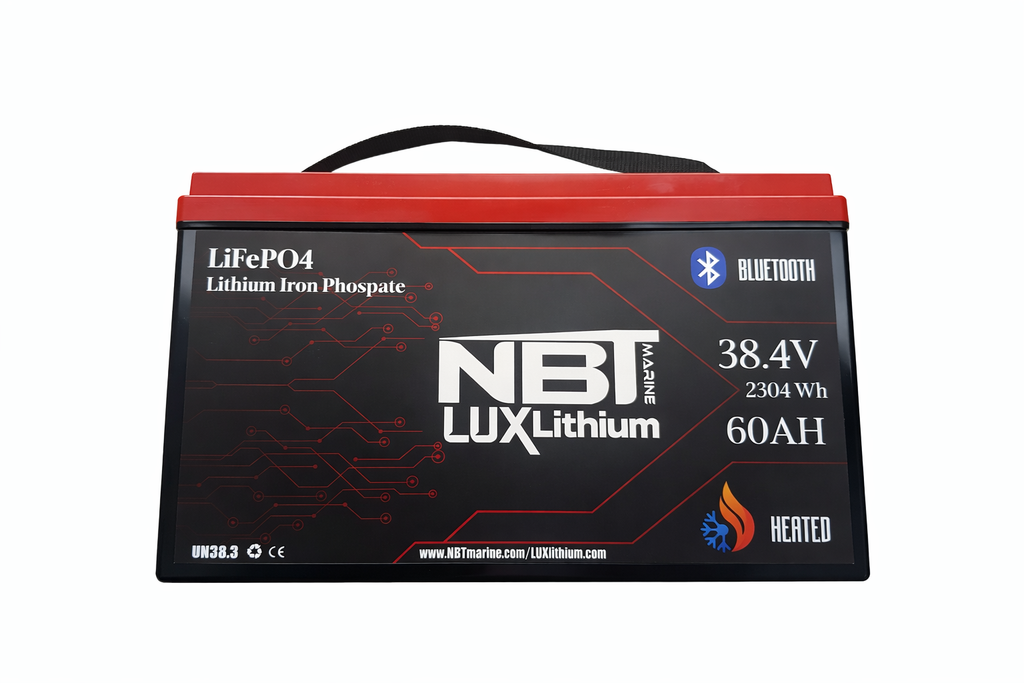

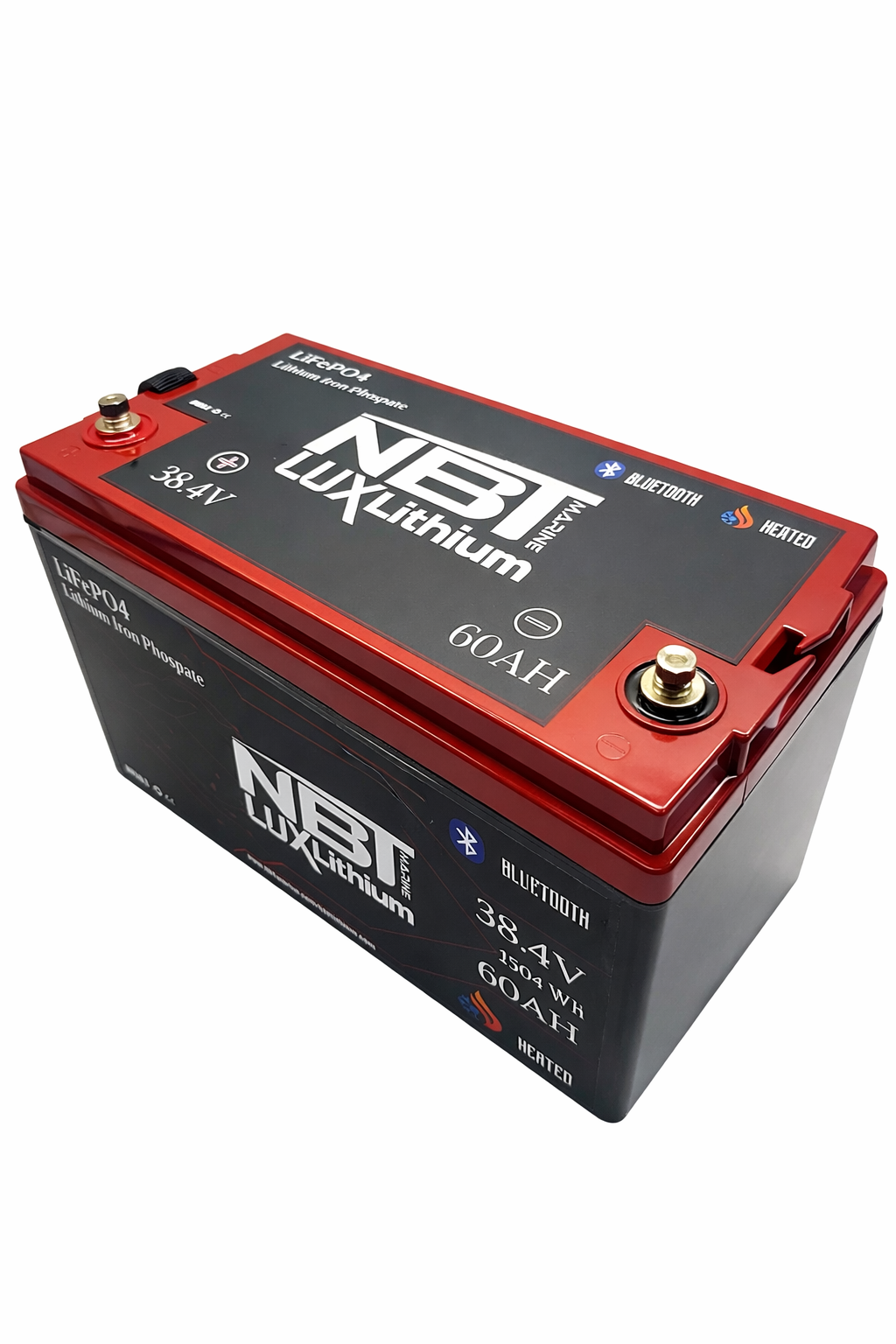

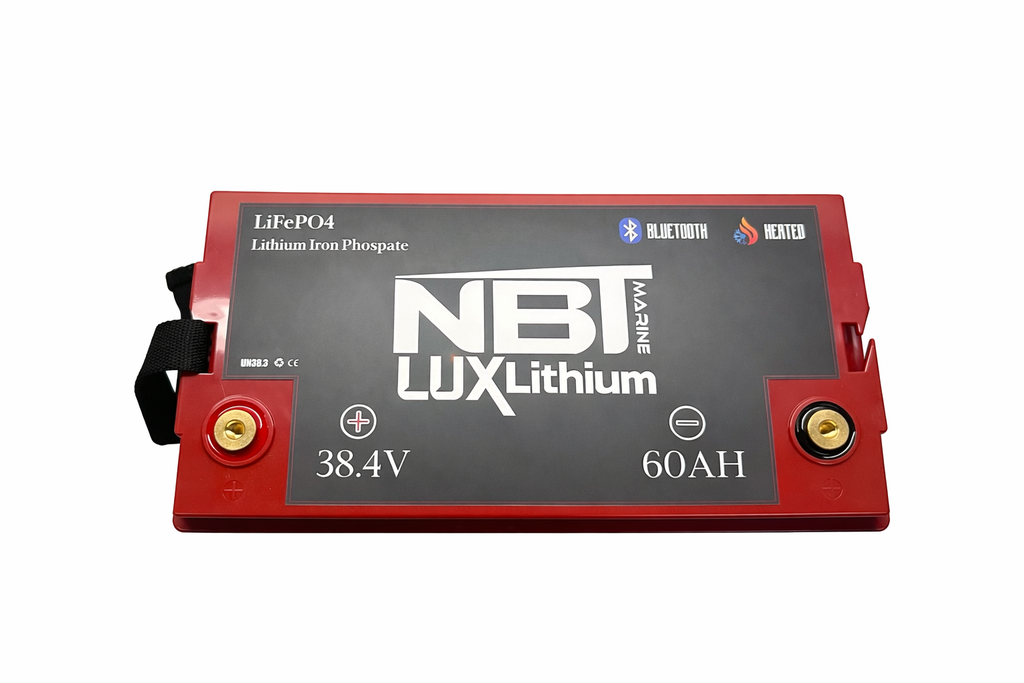

NBT Marine 36V 60AH Deep Cycle Battery

The NBT LUX 36V 60Ah consolidates your trolling motor setup into a single premium lithium battery, eliminating the series wiring and weight that comes with stringing together three 12V units. This battery holds steady voltage across the discharge curve, meaning your trolling motor runs at full thrust until the battery is nearly empty, not gradually slowing down like traditional batteries do.

SPECIFICATIONS

WARRANTY
See manufacturer warranty

WEIGHT
31.02 lbs

SIZE
Group 31 case: 12.9 x 6.8 x 8.5 inches

STORAGE CAPACITY
60Ah at 38.4V nominal. Lithium batteries maintain flat voltage through discharge, so you get usable capacity until the battery is nearly depleted, unlike lead acid batteries that lose power progressively.

VOLTAGE
38.4V nominal

ENERGY
2304 Wh

TERMINALS
Not specified by manufacturer

LIFECYCLES (BATTERY LIFESPAN)
Not specified by manufacturer

OPERATING TEMPERATURE
-4°F to 140°F with internal heater and low temperature protection

DISCHARGE
Over current protection included

CHARGE
Not specified by manufacturer

INCLUDES ACTIVE BMS PROTECTION
Yes. Includes active BMS protection with cell balancing, low and high voltage cutoff, short circuit protection, and high temperature protection.

BLUETOOTH CAPABLE
Yes, Bluetooth monitoring included

Experience the NBT Marine Advantage

The NBT LUX 36V 60Ah can be wired in series or parallel with up to four batteries total for custom voltage and capacity configurations. IP67 waterproof rating means the battery is sealed against submersion, not just spray.
