Fiberglass is a highly versatile material, used in everything from boat hulls and car bodies to intricate home decor pieces. If you’re looking to add a custom touch to your project, making your own fiberglass parts is an excellent way to achieve professional results with a personal flair. In this guide, we'll take you through the detailed process of crafting custom fiberglass parts, from planning your design to applying the final clear coat.
Materials You’ll Need:
- Fiberglass Resin: The main binding agent that solidifies the fiberglass layers.

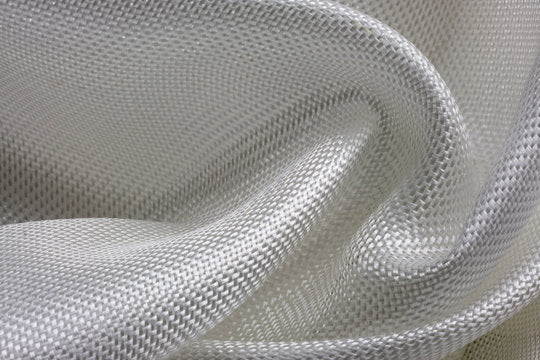

- Fiberglass Cloth: The structural material that gives strength to the finished part.
- Epoxy Resin: Used for the final clear coat to protect the part and give it a glossy finish.
- Sandpaper: For smoothing the cured fiberglass, recommended grits: 80, 120, and 220.
- Clear Coat: To seal and protect the finished part from UV rays and environmental damage.
Tools You’ll Need:
- Mixing Cup: For accurately measuring and mixing resins.
- Stirring Stick: To thoroughly combine resins and hardeners.
- Measuring Cup: Essential for precise measurement of resin and hardener.
- Rubber Gloves: To protect your hands from resin, which can be irritating.
- Respirator: To protect against inhaling harmful fumes during the process.
- Safety Glasses: Essential for protecting your eyes from resin splashes and dust.
- Jigsaw: For cutting out complex shapes in your mold or fiberglass part.
- Drill: Useful for creating holes or adding hardware to the finished part.
- Sander: An electric sander will make the sanding process faster and more uniform.
Detailed Steps to Create Custom Fiberglass Parts:
-
Plan Your Design:
- Start by sketching out your design. Consider the dimensions, shape, and function of the part. Planning helps determine the amount of materials you’ll need and the complexity of the mold.
- Decide whether you need a single-use or multi-use mold. For more complex shapes, consider using a plug to create a reusable mold.
-
Prepare the Mold:
- If using a pre-made mold: Ensure it’s clean, free of dust, grease, and debris. Any imperfection will be transferred to the final fiberglass part.
- If creating a mold from scratch: You can use foam, wood, or existing objects. Shape the material to the desired form, then apply a mold release agent or wax. This prevents the fiberglass from sticking to the mold, making it easier to remove once cured.
- For intricate designs, consider using gel coat before laying the fiberglass to ensure a smooth finish.
-
Mix the Resin:
- Follow the manufacturer’s instructions carefully. Typically, fiberglass resin is mixed with a hardener at a specific ratio, often 10:1.
- Use a clean mixing cup and a stirring stick. Stir thoroughly to avoid any unmixed resin, which can lead to weak spots in your fiberglass.
- Work in a well-ventilated area, and always wear a respirator and gloves to protect yourself from fumes and skin contact.
-
Apply the Resin and Cloth:
- First Layer: Brush or roll a thin layer of resin onto the mold. This layer acts as an adhesive for the fiberglass cloth.
- Lay the Fiberglass Cloth: Cut the cloth into manageable sections. Lay the cloth onto the wet resin, using a brush to smooth out air bubbles and ensure full contact with the resin.
- Additional Layers: Apply another layer of resin over the cloth, followed by another layer of cloth. Continue this process until you’ve built up the desired thickness. Typically, three to five layers are sufficient for most projects.
- Detail Work: For corners and complex shapes, use smaller strips of fiberglass cloth and press them into place with a brush.
-
Allow the Resin to Cure:
- Let the fiberglass cure according to the manufacturer’s instructions. This usually takes about 24 hours, but can vary based on temperature and humidity.
- Do not rush this process. Proper curing is crucial for achieving maximum strength and durability.
-
Demold the Part:
- Once the fiberglass is fully cured, carefully remove it from the mold. If the mold was properly prepared with a release agent, the part should come out easily.
- Inspect the part for any defects. Small air bubbles or uneven areas can be addressed during the sanding phase.
-
Sand the Part:
- Begin with 80-grit sandpaper to remove any large imperfections, then move to 120-grit for smoothing, and finish with 220-grit for a fine finish.
- Use a sander for large, flat areas and hand sand intricate details.
- Be cautious not to sand too deeply and compromise the integrity of the fiberglass layers.
-
Apply a Clear Coat:
- Mix the epoxy resin for the clear coat as per the manufacturer’s instructions. Apply it with a brush or roller, ensuring an even layer across the entire part.
- The clear coat not only adds a glossy finish but also protects the fiberglass from UV rays and environmental exposure, which can degrade the material over time.
-
Final Curing:
- Allow the clear coat to cure completely, usually another 24 hours. Ensure the part is in a dust-free environment during this time to prevent particles from sticking to the surface.
-
Final Inspection:
- Once fully cured, inspect the part for any final touch-ups. If necessary, sand any rough spots lightly and apply a second clear coat.
Tips for Success:
- Protect Yourself: Always wear gloves, a respirator, and safety glasses when working with fiberglass materials. The fumes can be harmful, and the resin can cause skin irritation.
- Thorough Mixing: Ensure the resin and hardener are thoroughly mixed to avoid weak spots in the fiberglass.
- Patience is Key: Rushing the curing process can result in a weaker part. Give the resin and clear coat ample time to cure.
- Smooth Application: Use even strokes when applying resin and clear coat to avoid drips and uneven thickness.
- Practice Makes Perfect: If you’re new to working with fiberglass, start with smaller projects to build your skills before tackling more complex parts.
By following these detailed steps, you’ll be able to create custom fiberglass parts that are not only functional but also professional-looking. With practice, you can master the art of fiberglass work and bring your unique designs to life with precision and confidence.
